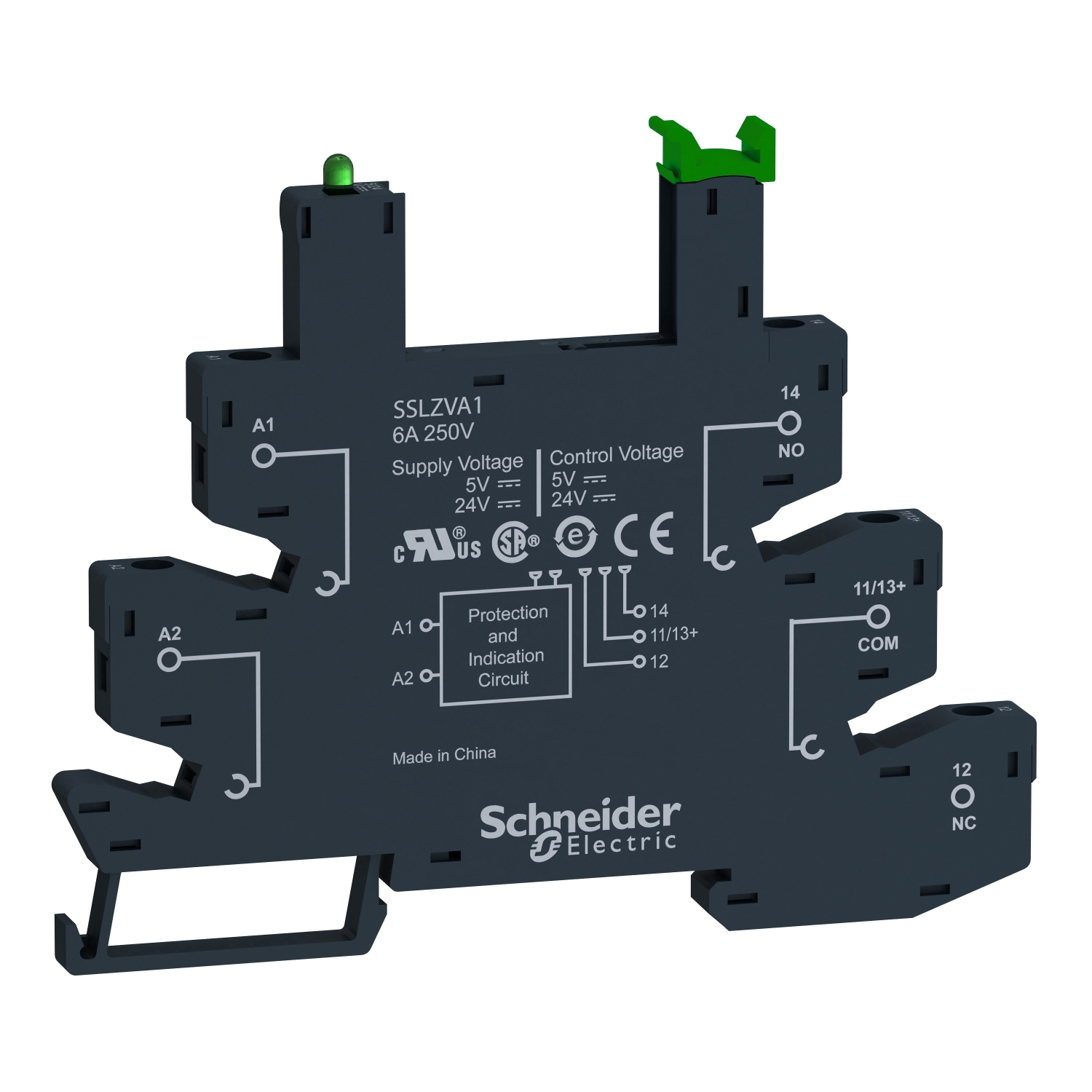

"This Harmony SSL socket for solid state slim interfacing relay has spring terminals and a rated voltage of 5V DC." "It also offers clear circuit labelling on the sides to facilitate installation and maintenance." "It features a visual indicator LED for a simpler troubleshooting and commissioning." "Its clear schematic on the side of the socket enables easier wiring and maintenance." 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSLZ |
| [Uc] control circuit voltage | 24 V, 5 V |
| Product compatibility | solid state relay SSL with NO contact at 5 V DC, solid state relay SSL with NO contact at 24 V DC |
| Range of product | Harmony Solid State Relays |
| [Ith] conventional free air thermal current | 6 A |
| [Ue] rated operational voltage | < 250 V DC |
| Switching voltage | 24 V DC, 5 V DC |
| [In] rated current | 6 A |
| Product or component type | socket for SSL1 |
| Complementary | |
| Group of product | SSL_NO_SEP_FLAT_SPRING_5-24 |
| Compatibility code | SSLZ |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| Clamping force | 10-40 N |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Height | 101 mm |
| Depth | 78.6 mm |
| Overvoltage category | III |
| Width | 6.2 mm |
| Local signalling | LED (green) for input status |
| Connections - terminals | spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end, spring terminals |
| Net weight | 0.0285 kg |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Marking | CE |
| Ambient air temperature for operation | -40-70 °C |
| Flame retardance | V0 conforming to UL 94 |
| Standards | IEC 61984 |
| Product certifications | CSA C22-2 No 14, UL 508 |
Only registered users can write reviews
Related products
Solid state slim relay, Harmony Solid State Relays, 0.1A, DC switching, input 16…30V DC, output 1…48V DC
SSL1D101BD
Solid state slim relay, Harmony Solid State Relays, 0.1A, DC switching, input 16…30V DC, output 1…48V DC
$25.19 inc GST
$22.73 inc GST

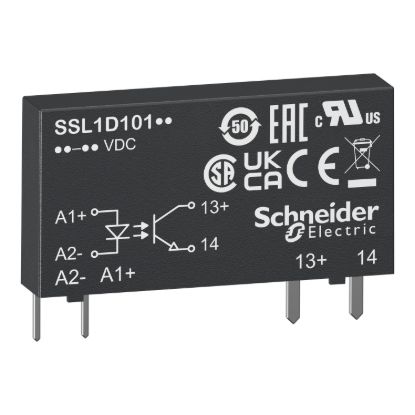

Solid state slim relay, Harmony Solid State Relays, 0.1A, DC switching, input 3…12V DC, output 1…48V DC
