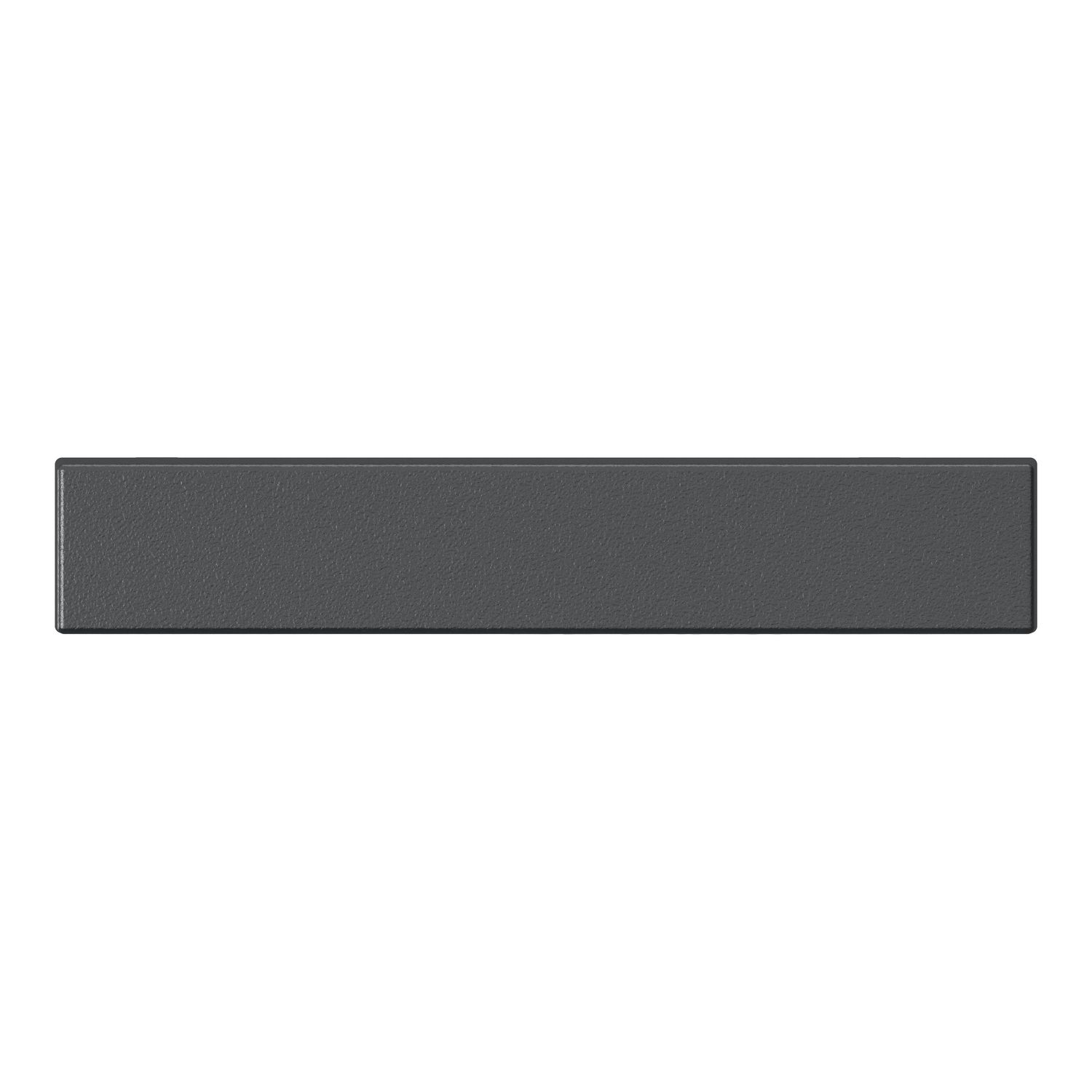

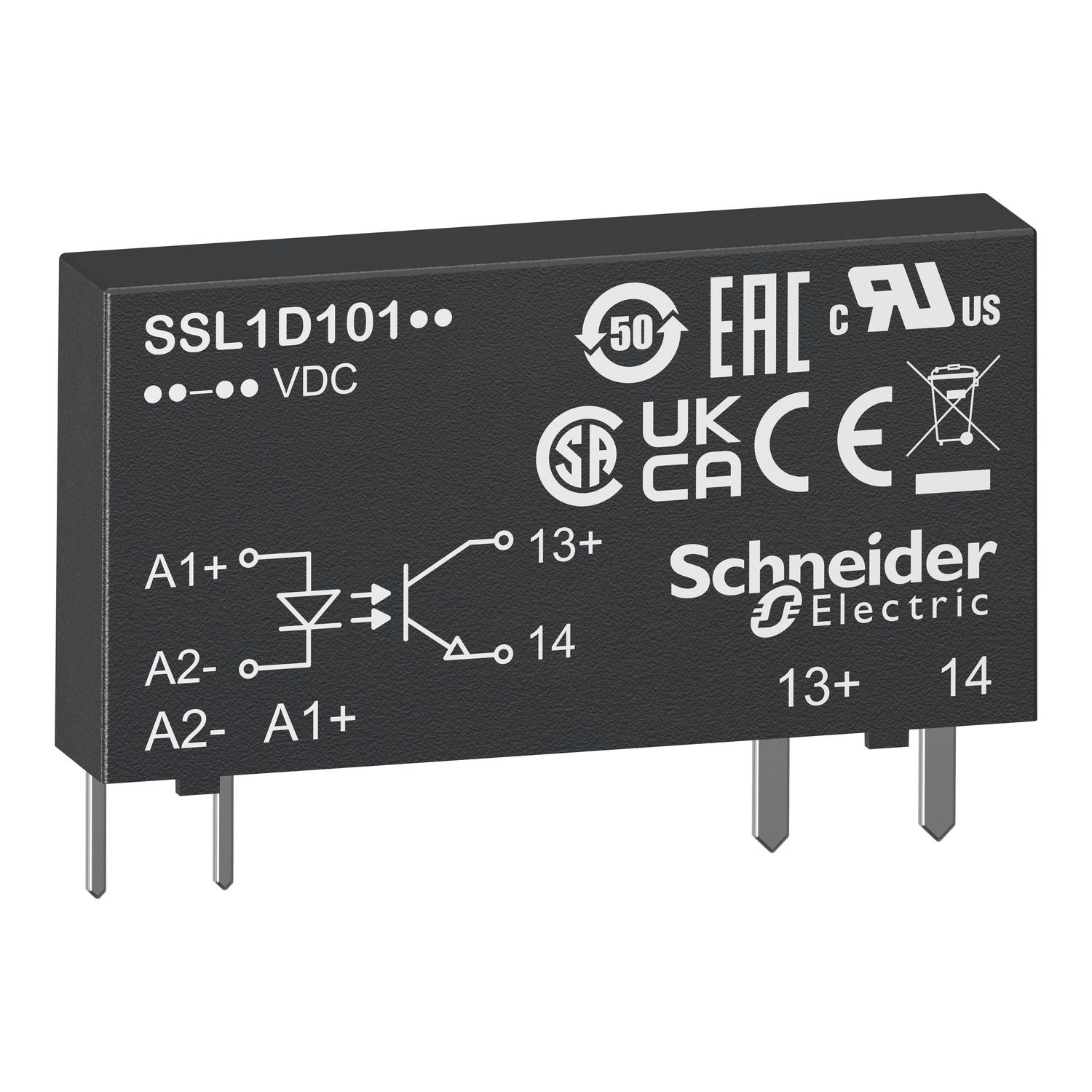

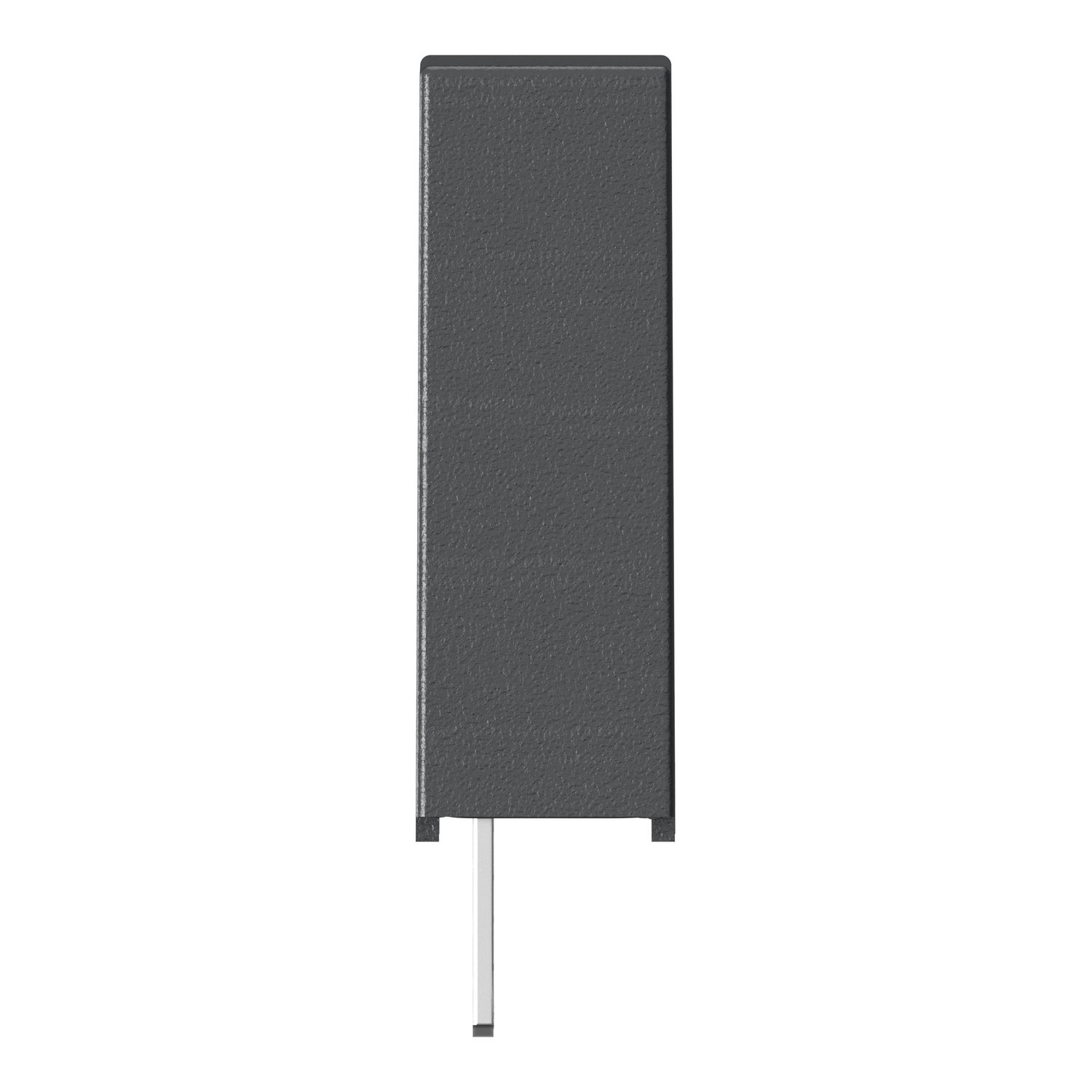

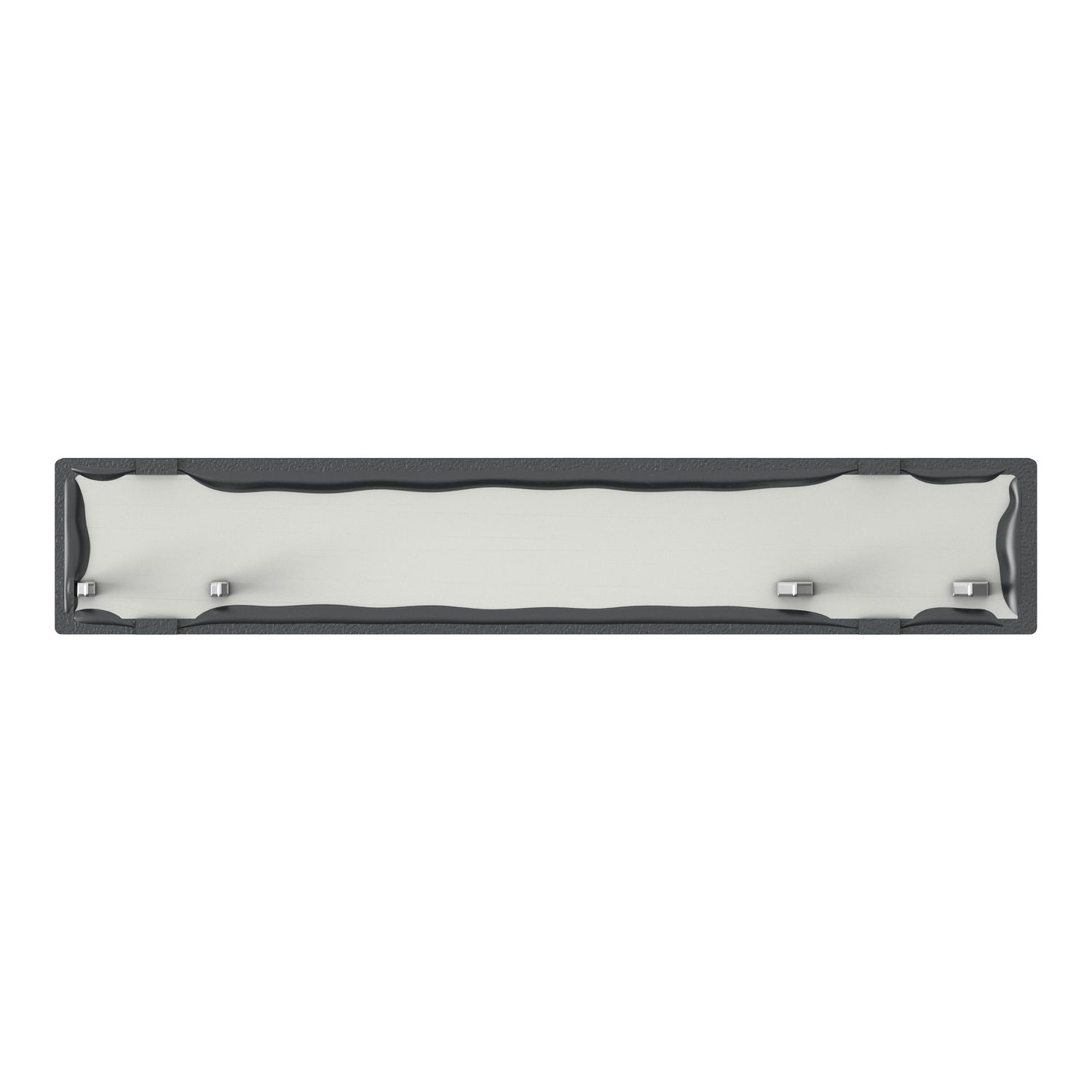

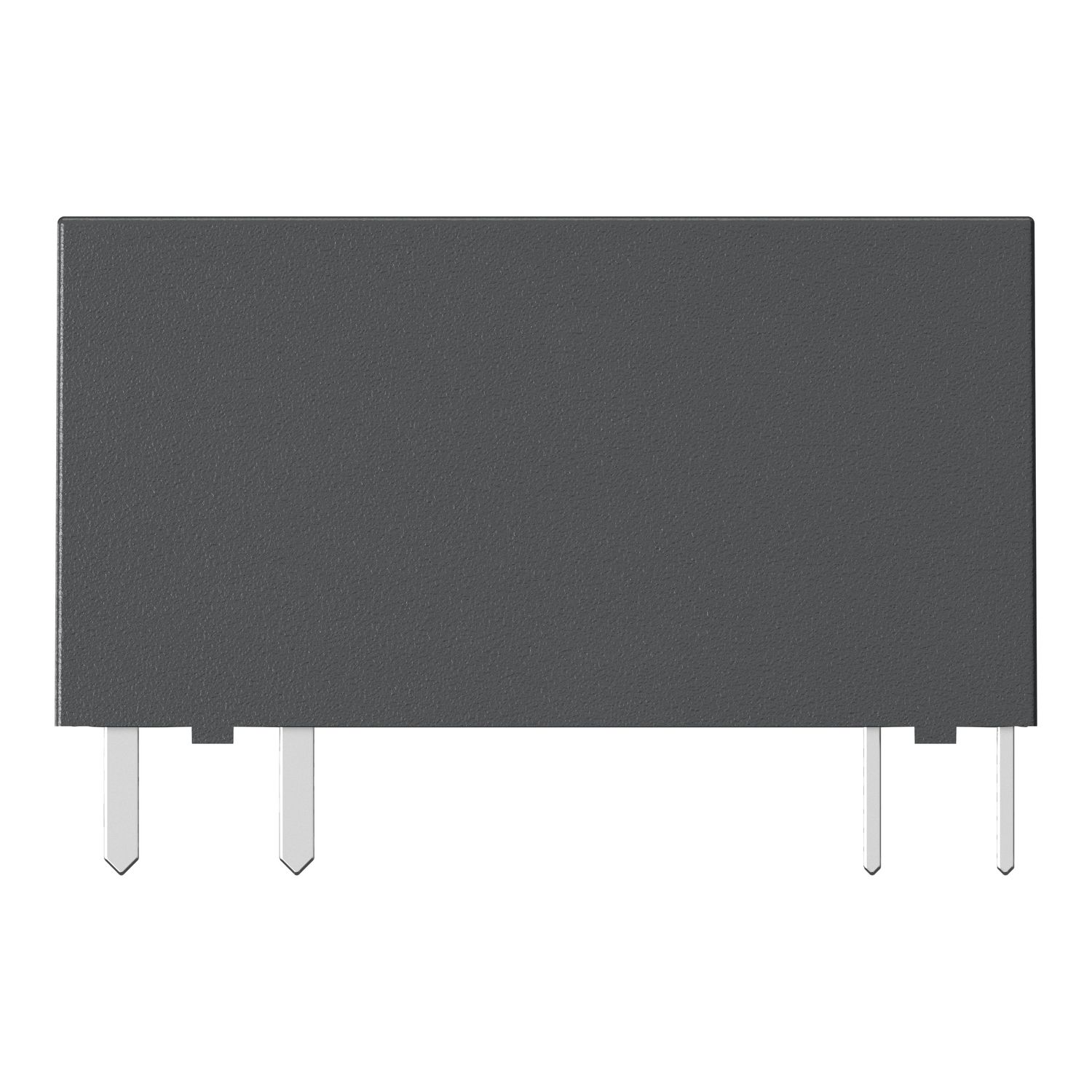

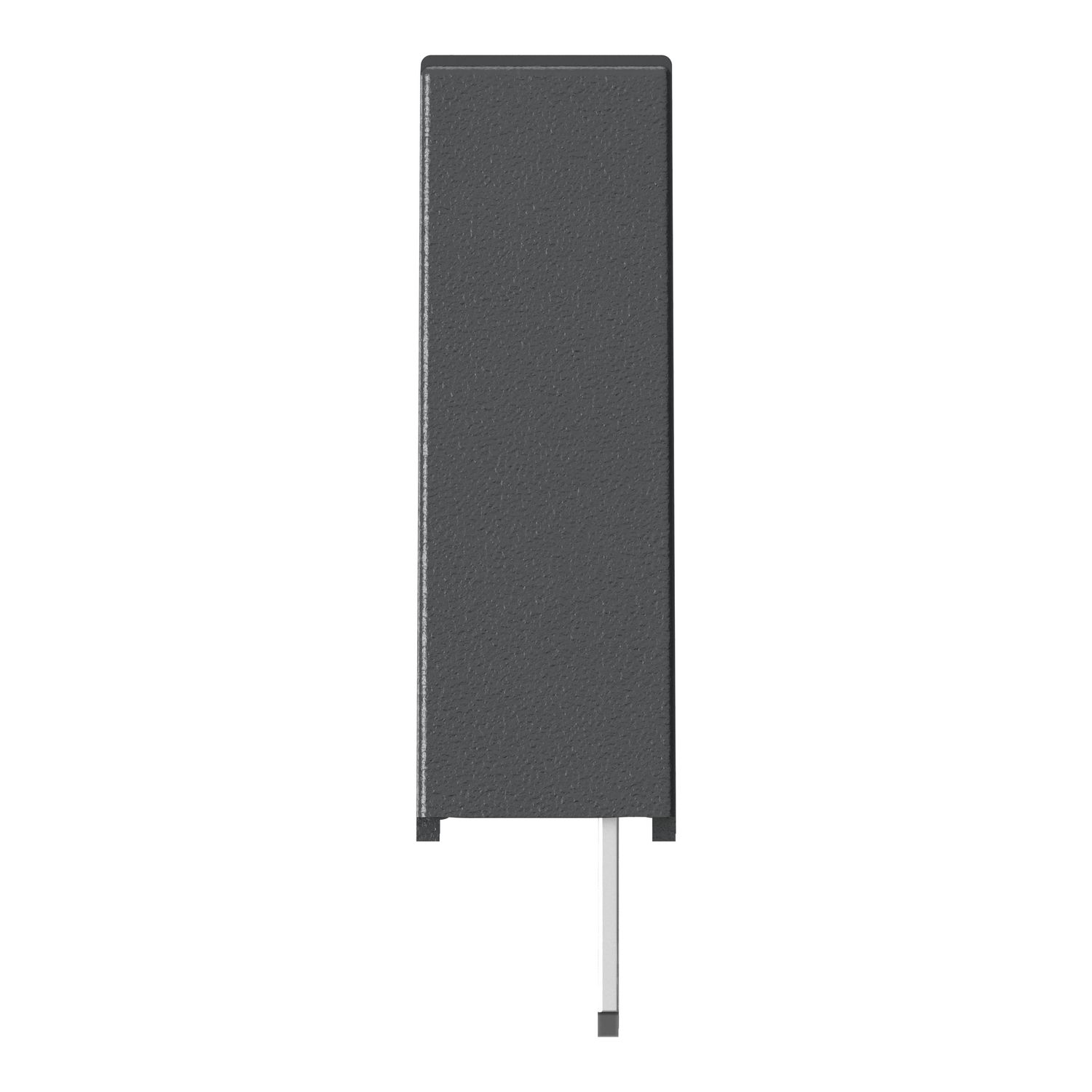

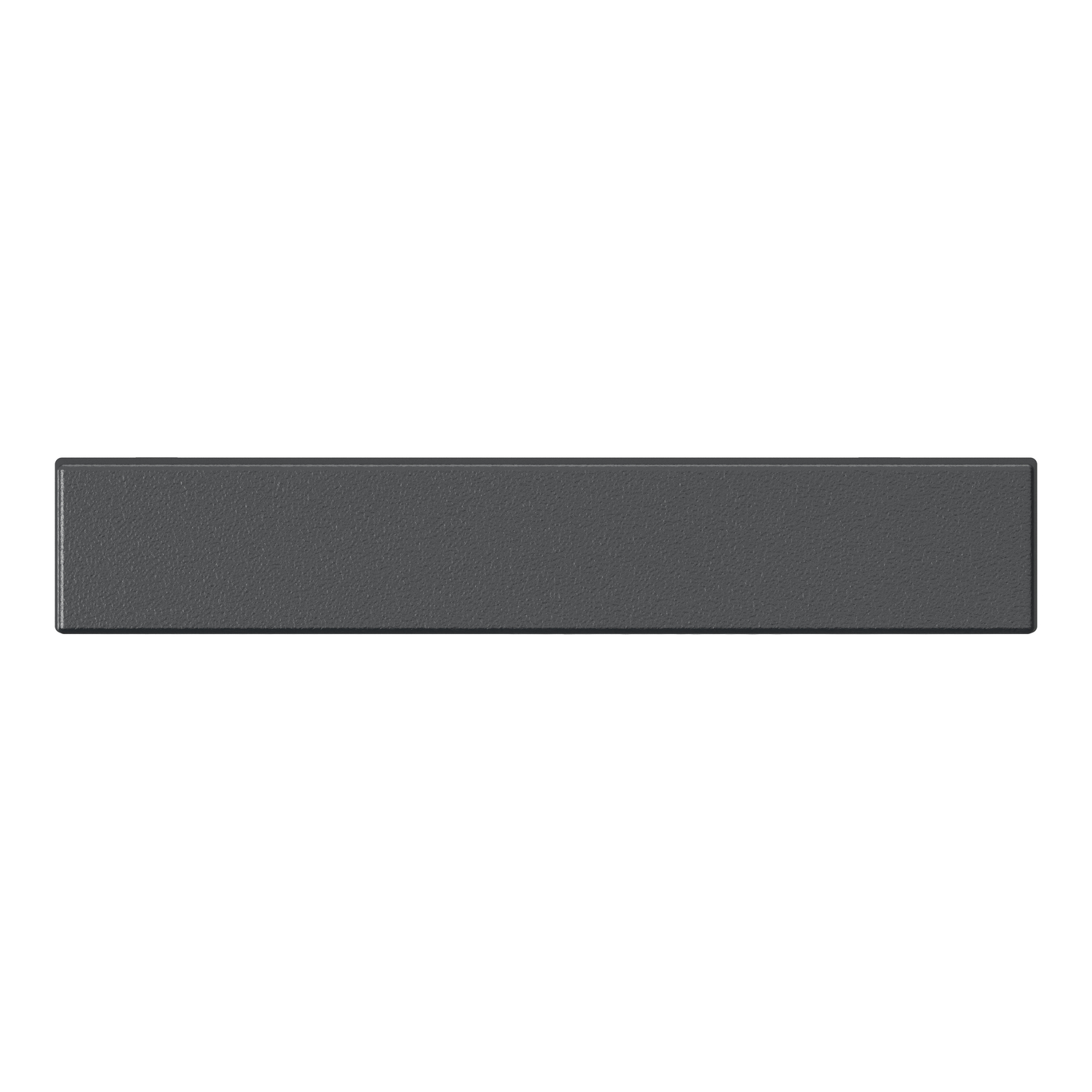

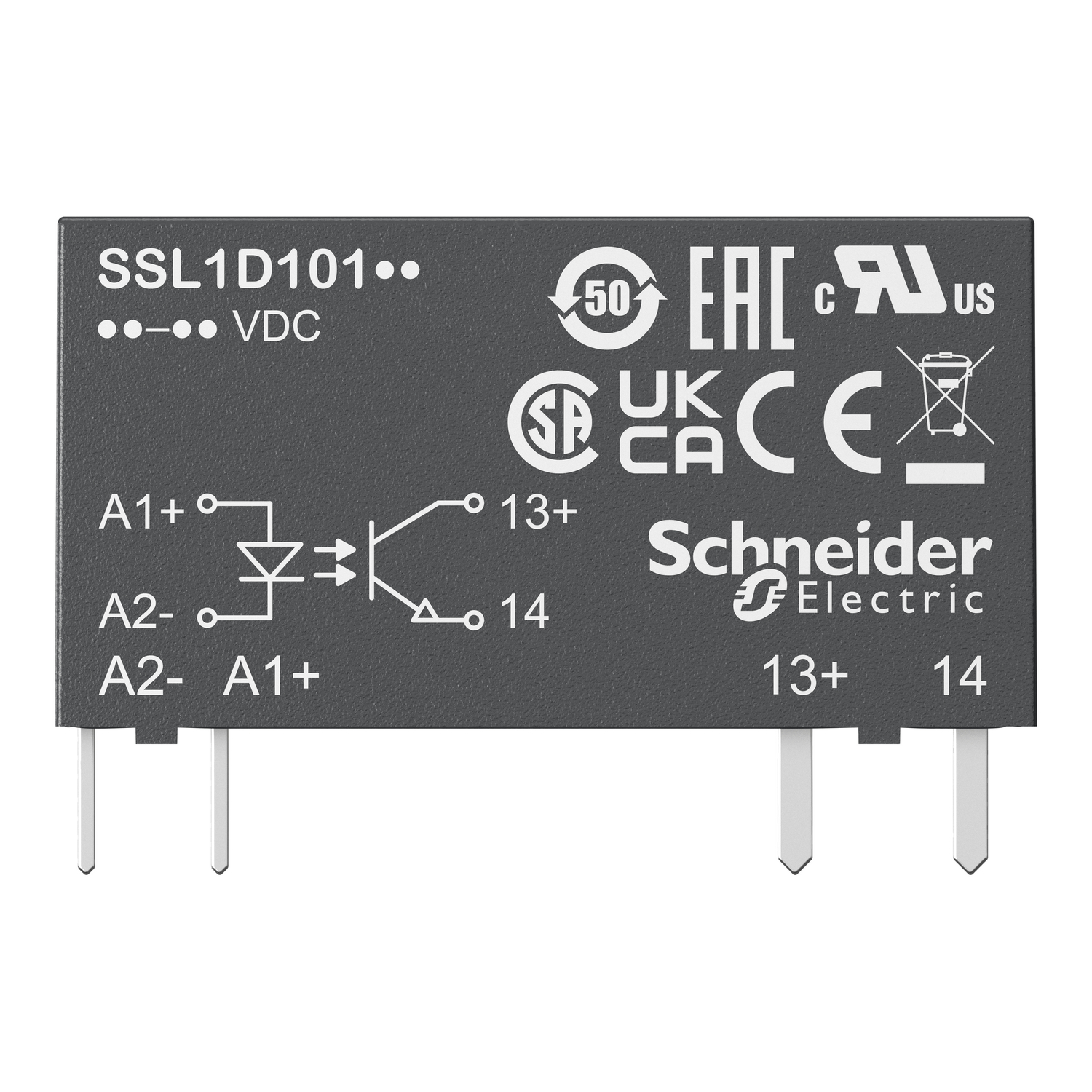

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 16V to 30V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSL |
| [Uc] control circuit voltage | 16...30 V |
| Range of product | Harmony Solid State Relays |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 10 A |
| Output switching mode | DC switching |
| Complementary | |
| Maximum switching voltage | 9 V DC turn-off |
| Input current limits | 5-5 mA |
| Device presentation | complete product |
| Minimum switching voltage | 16 V DC turn-on |
| Maximum voltage drop | <1 V on-state |
| Output voltage | 1...48 V DC |
| Height | 28 mm |
| Maximum operating frequency | 500 Hz |
| Depth | 15 mm |
| Overvoltage category | III |
| Width | 5 mm |
| [In] rated current | 0.1 A |
| Capacitance unbalance | 1.5 pF input/output |
| Solid state output type | transistor output, DC switching |
| Input impedance | 3500 Ohm |
| Absolute maximum voltage | 60 V DC |
| Maximum leakage current | 0.001 mA off-state |
| Net weight | 0.0041 kg |
| Load current | 0.001-0.1 A |
| Surge current | 0.3 A for 10 ms |
| Response time | 0.13 ms (turn-off), 0.02 ms (turn-on) |
| Mounting support | socket |
| [Uc] control circuit voltage | 16...30 V DC |
| Environment | |
| Ambient air temperature for storage | -20-85 °C |
| Marking | CE |
| Pollution degree | 2 |
| Ambient air temperature for operation | -20-80 °C |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 3750 V for input/output |
| Product certifications | UL, CSA |
