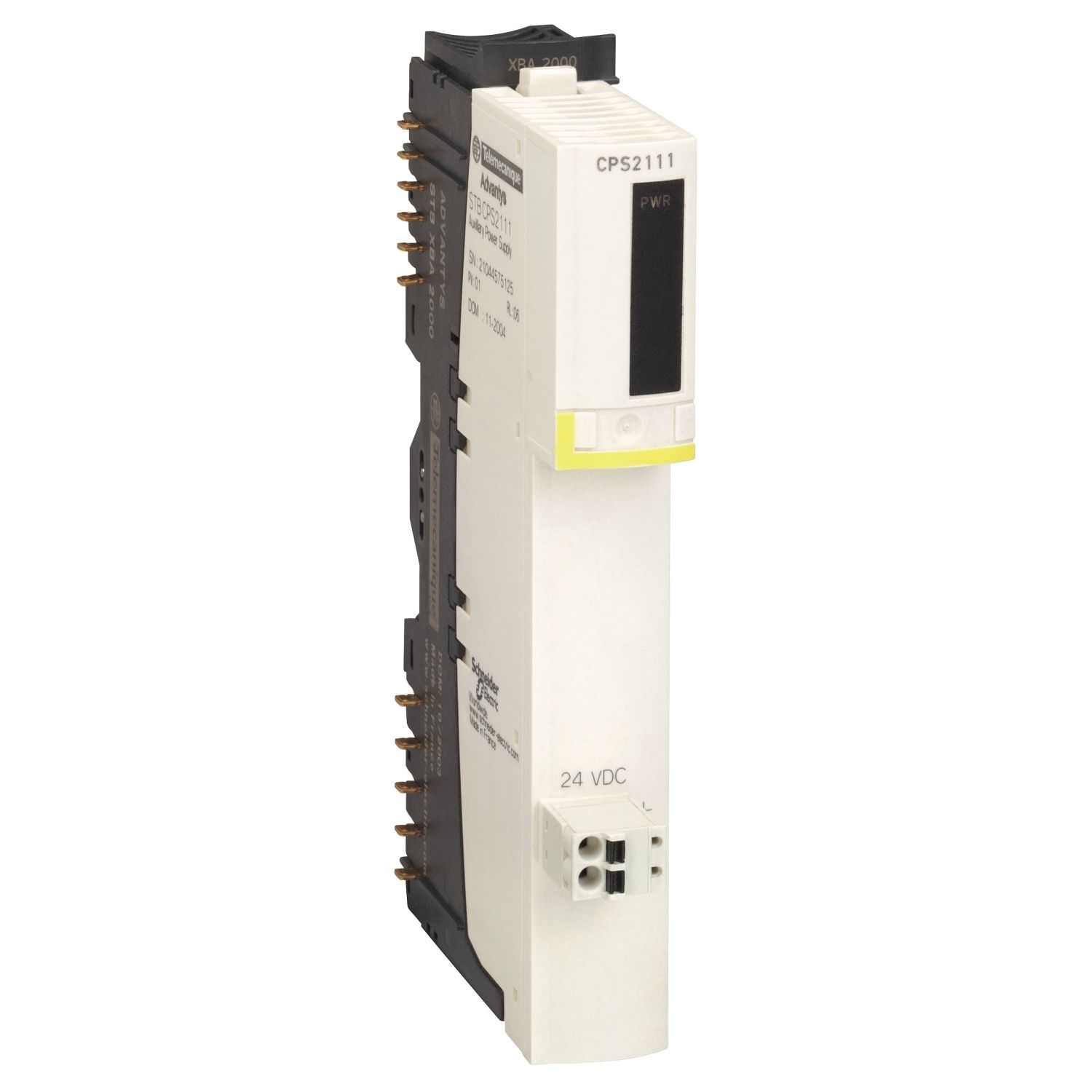

This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |
| Product specific application | supply for logic of I/O module |
| Product or component type | auxiliary power supply kit |
| Complementary | |
| Supply voltage limits | 19.2-30 V |
| Electrical connection | 2 pins for removable connector for power supply |
| Marking | CE |
| Output voltage type | DC |
| Output voltage | 5.25 V +/- 0.21 % logic bus |
| [Us] rated supply voltage | 24 V |

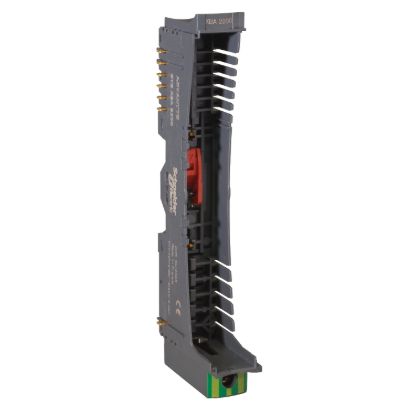

| Kit composition | terminal screw type connector, STBCPS2111 module, STBXBA2100 base, terminal spring clamp connector |
| Overvoltage category | II |
| Supply circuit type | DC |
| Power supply output current | 1.2 A |
| Input current | 400 mA |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | FM Class 1 Division 2, CSA, UL |
