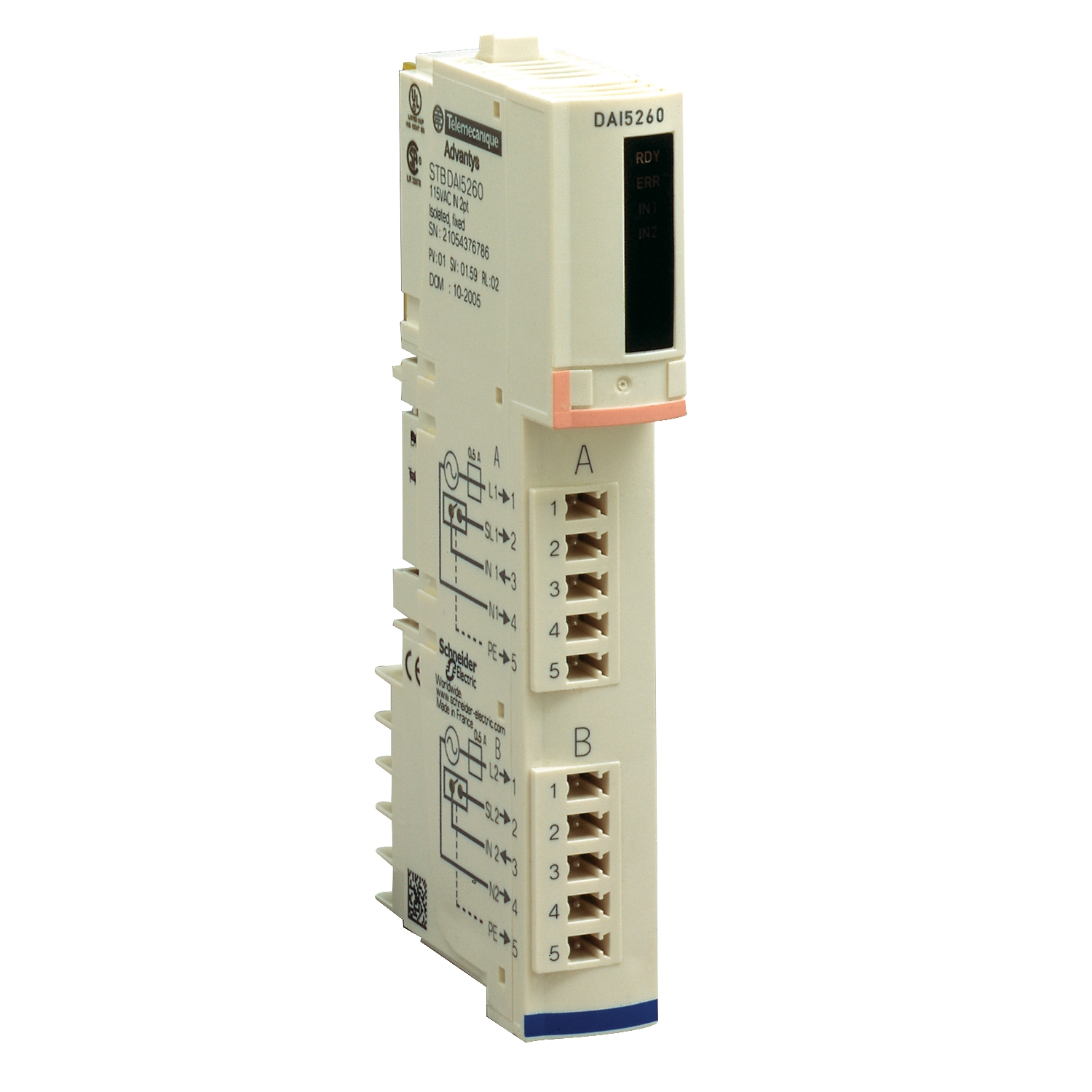

This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard digital input kit for I/O base and power distribution modules. The kit consists of a base, a module, a 5-terminal spring clamp connector, and a 5-terminal screw-type connector. It supports 2 discrete inputs at an input voltage of 115 VAC. This product weighs 0.065 kg. Ideal for environment such as packaging, bottling, assembly, distribution, textile, printing, semiconductor machines. It is UL, CSA, FM Class 1 Division 2 certified and conforms to EN/IEC 61131-2 type 1, IEC 60664-1 standards. This is compatible with I/O base STBXBA2000 and power distribution module STBPDT2100/2105. It is designed to be mounted on DIN rail. Modicon STB range is simple, open and flexible, meeting your needs in every stage of the product life cycle. They save you time and money by simplifying maintenance and diagnostic tasks.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |
| Kit composition | STBDAI5260 module, STBXBA2000 base, STBXTS2110, 5-terminal spring clamp connector, STBXTS1110, 5-terminal screw type connector |
| Discrete input number | 2 |
| Product or component type | standard digital input kit |
| Discrete input voltage type | AC |
| Discrete input voltage | 115 V |
| Complementary | |
| Product compatibility | power distribution module STBPDT2100/2105, I/O base STBXBA2000 |
| Discrete input logic | positive or negative |
| Input voltage limits | 74...132 V at state 1, 0...20 V at state 0 |
| Current state 1 guaranteed | >= 4 mA |
| Marking | CE |
| Network frequency limits | 47-63 Hz |
| Protection type | power protection external fuse 0.5 A, input protection metal oxide varistor limited |
| Permissible voltage | 132 V |
| Hot swapping fallback | yes for standard NIMs |
| Status LED | 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (IN1 to IN2), 1 LED (green) module status (RDY) |
| Height | 18.4 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| [Us] rated supply voltage | 115/230 V AC |
| Depth | 65.1 mm |
| Overvoltage category | II |
| Width | 125 mm |
| Response time | 1.5 ms on-to-off, 1.5 ms off-to-on |
| Insulation between channels | 1780 V for 1 minute |
| Net weight | 0.065 kg |
| Current state 0 guaranteed | <= 2 mA |
| Current consumption | 45 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Absolute maximum voltage | 200 V 20 ms |
| Network frequency | 50/60 Hz |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-60 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | EN/IEC 61131-2 type 1 |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
