Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |

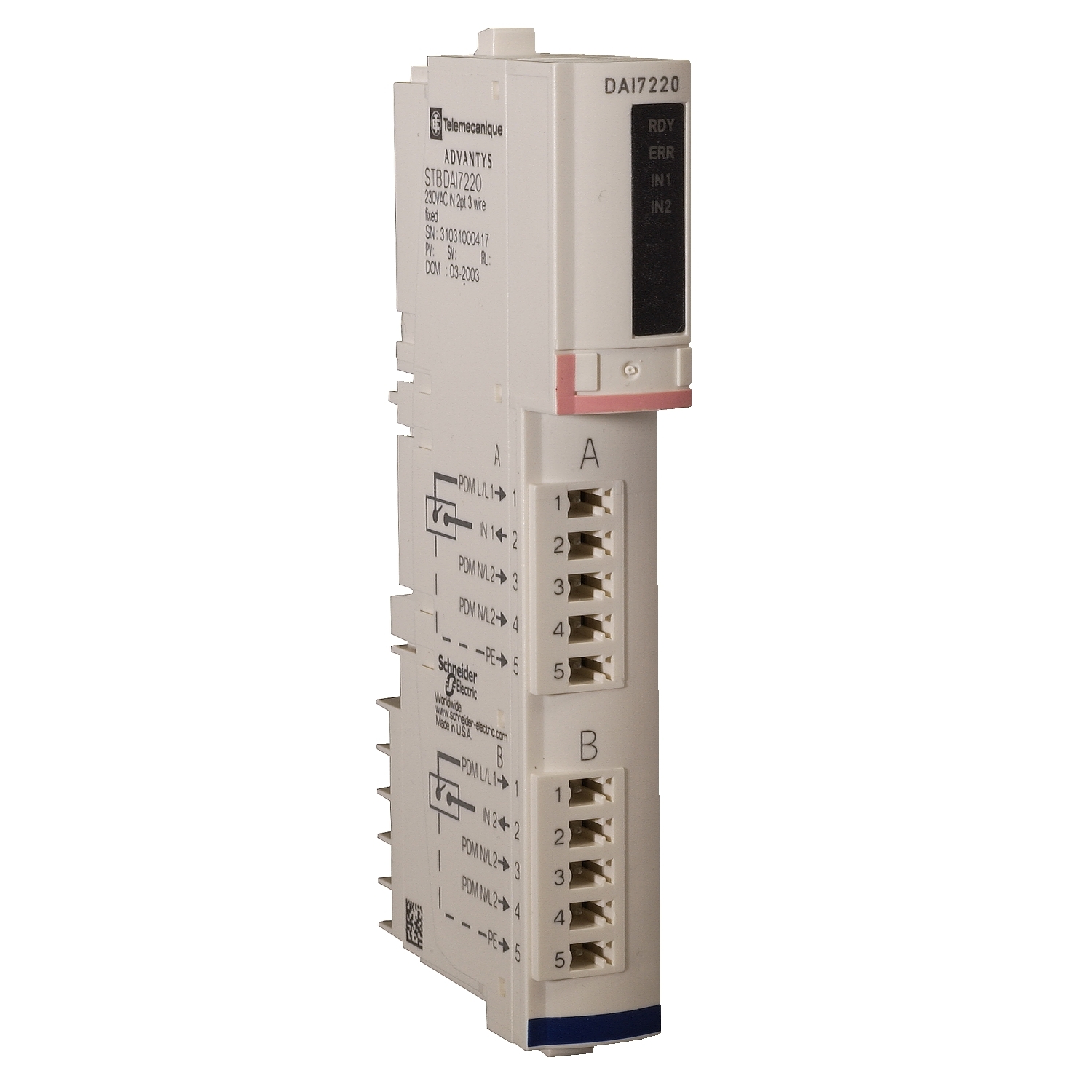

| Kit composition | STBXBA2000 base, STBXTS2110, 5-terminal spring clamp connector, STBDAI7220 module, STBXTS1110, 5-terminal screw type connector |
| Discrete input number | 2 |
| Product or component type | standard digital input kit |
| Discrete input voltage type | AC |
| Discrete input voltage | 230 V |
| Complementary | |
| Product compatibility | I/O base STBXBA2000, power distribution module STBPDT2100/2105 |
| Input voltage limits | 159...256 V at state 1, 0...40 V at state 0 |
| Current state 1 guaranteed | >= 4 mA |
| Marking | CE |
| Network frequency limits | 47-63 Hz |
| Protection type | input protection resistor-limited, power protection integrated fuse on PDM time lag 10 A |
| Permissible voltage | 265 V |
| Hot swapping fallback | yes for standard NIMs |
| Status LED | 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (IN1 to IN2), 1 LED (green) module status (RDY) |
| Height | 18.4 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| [Us] rated supply voltage | 115/230 V AC |
| Depth | 65.1 mm |
| Overvoltage category | II |
| Width | 125 mm |
| Response time | 1.5 ms on-to-off, 1.5 ms off-to-on |
| Net weight | 0.122 kg |
| Current state 0 guaranteed | <= 2 mA |
| Current consumption | 40 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Absolute maximum voltage | 400 V 20 ms |
| Network frequency | 50/60 Hz |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-60 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | EN/IEC 61131-2 type 1 |
| Product certifications | FM Class 1 Division 2, UL, CSA |
