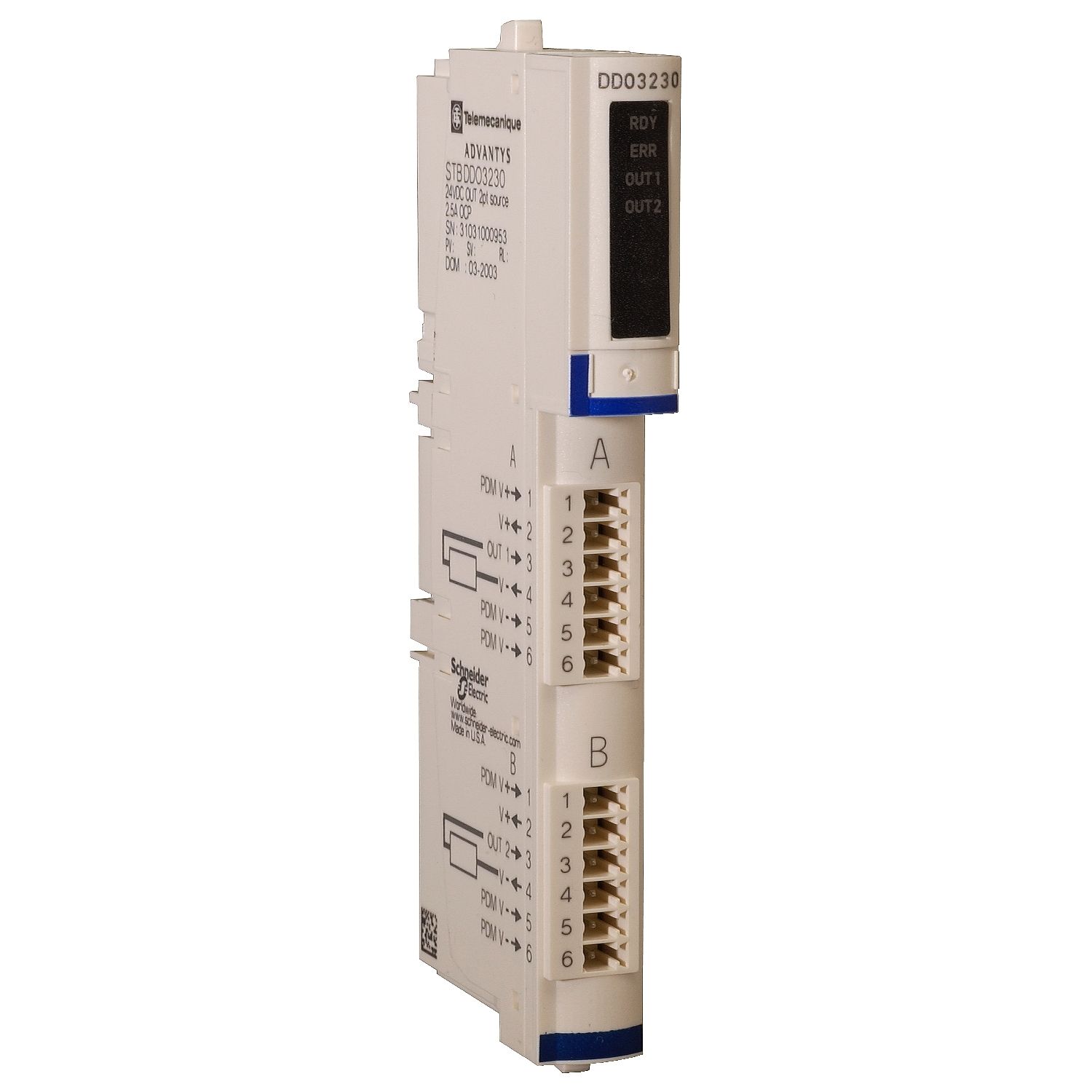

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output voltage type | DC |
| Range of product | Modicon STB distributed I/O solution |
| Discrete output type | solid state |
| Kit composition | STBDDO3230 module, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base |
| Discrete output number | 2 |
| Discrete output voltage | 24 V |
| Product or component type | standard digital output kit |
| Complementary | |
| Maximum load capacitance | 50 µF |
| Product compatibility | I/O base STBXBA1000, power distribution module STBPDT3100/3105 |
| Fallback status | user configurable standard NIMs, state 0 basic NIMs |
| Discrete output current | 2000 mA |
| Marking | CE |
| Protection type | thermal overload protection, short-circuit protection, reverse polarity protection, power protection 1 external fuse per output time lag 2.5 A |
| Response time | 720 µs on-to-off, 520 µs off-to-on |
| Maximum load inductance | 500 mH at 4 Hz |
| Hot swapping fallback | yes for standard NIMs |
| Output voltage | 19.2...30 V DC |
| Status LED | 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (OUT1 to OUT2), 1 LED (green) module status (RDY) |
| Discrete output logic | positive or negative |
| Height | 13.9 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Maximum leakage current | 1 mA at state 0 30 V |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Minimum load | 2 mA |
| Insulation between channels | 1500 V for 1 minute |
| Net weight | 0.116 kg |
| Current consumption | 45 mA at 5 V DC for logic bus |
| Surge current | 10 A 0.5 ms |
| Supply | power distribution module |
| Absolute maximum voltage | 56 V 1.3 ms |
| Reset | manual or automatic reset COM fault |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-60 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | IEC 61131-2 |
| Product certifications | UL, CSA, FM Class 1 Division 2 |
