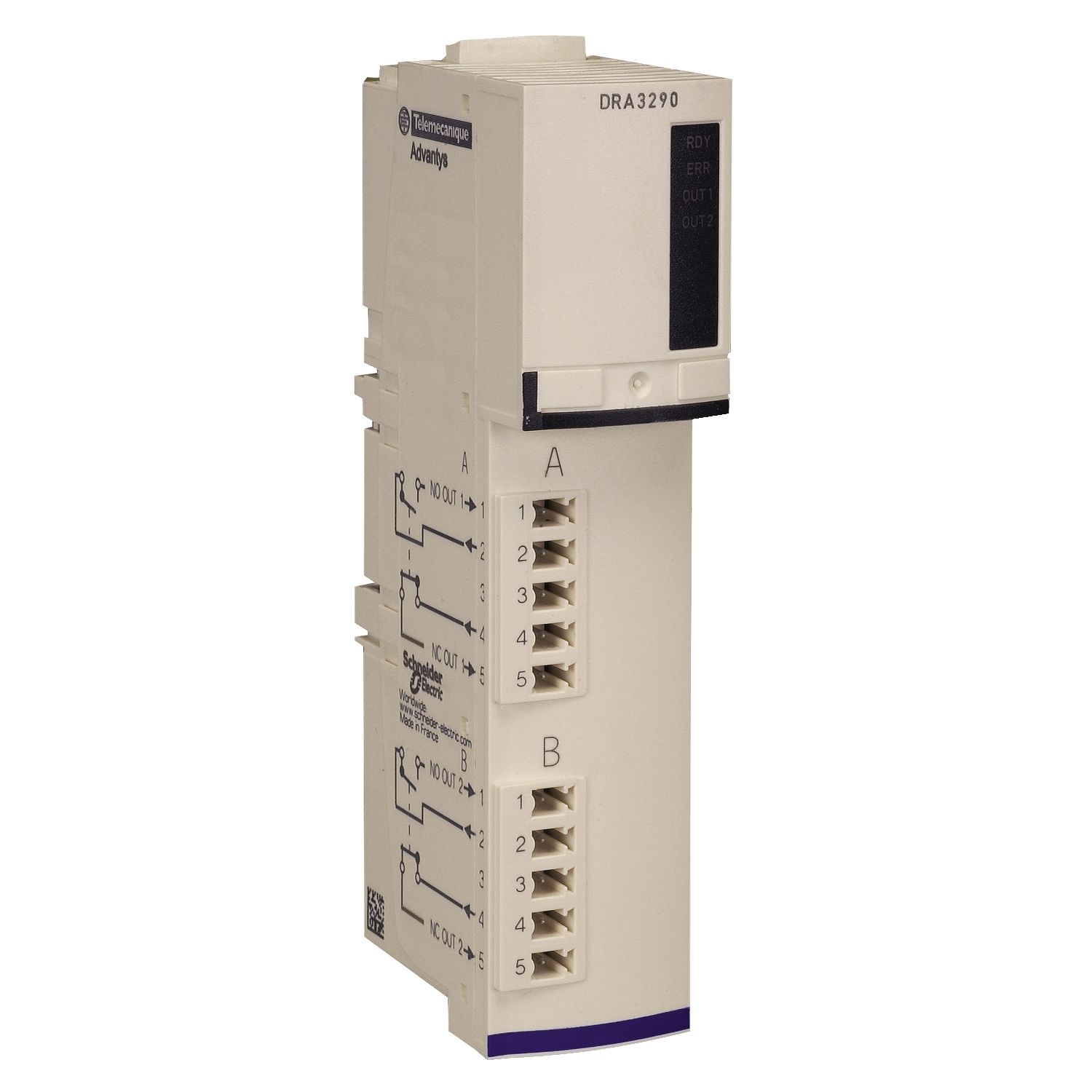

What is this product? This product is a standard digital output kit for Modicon STB, providing 2 relay outputs. It offers robust relay output control for industrial automation systems. What is the product technical and installation information? Key benefits include high current capacity, integrated surge protection, and hot swapping capability. The STBDRA3290K is installed on a DIN rail within an industrial control panel. The kit includes the relay output module and is compatible with Modicon STB distributed I/O solutions. What is the product range information? The Modicon STB range offers modularity, flexibility, and ease of integration
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output voltage type | DC, AC |
| Range of product | Modicon STB distributed I/O solution |
| Discrete output function | 1 NO + 1 NC |
| Discrete output type | relay |
| Kit composition | STBDRA3290 module, STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 base, STBXTS1100, 5-terminal screw type connector |
| Discrete output number | 2 |
| Discrete output voltage | 115...230 V, 24 V |
| Product or component type | standard digital output kit |
| Complementary | |
| Product compatibility | power distribution module STBPDT3100/3105, I/O base STBXBA3000 |
| Mechanical durability | 1000000 cycles |
| Fallback status | user configurable standard NIMs, state 0 basic NIMs |
| Discrete output current | 7000 mA |
| Marking | CE |
| Protection type | output surge protection GMOV, coil protection integrated fuse on PDM time lag 10 A |
| Response time | 10 ms on-to-off, 10 ms off-to-on |
| Hot swapping fallback | yes for standard NIMs |
| Output voltage | 5...30 V DC, 20...250 V AC |
| Electrical durability | 100000 cycles resistive |
| Status LED | 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (OUT1 to OUT2), 1 LED (green) module status (RDY) |
| Discrete output logic | positive or negative |
| Height | 28.1 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1780 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Minimum load | 50 mA |
| Insulation between channels | 500 V for 1 minute |
| Net weight | 0.13 kg |
| Current consumption | 55 mA at 5 V DC for logic bus |
| Surge current | 20 A 10 ms capacitive |
| Supply | power distribution module |
| Insulation between logic bus and actuator bus | 1500 V for 1 minute |
| Reset | manual reset COM fault |
| Switching capacity in VA | 2100 VA resistive |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-60 °C (without derating) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | IEC 61131-2 |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
