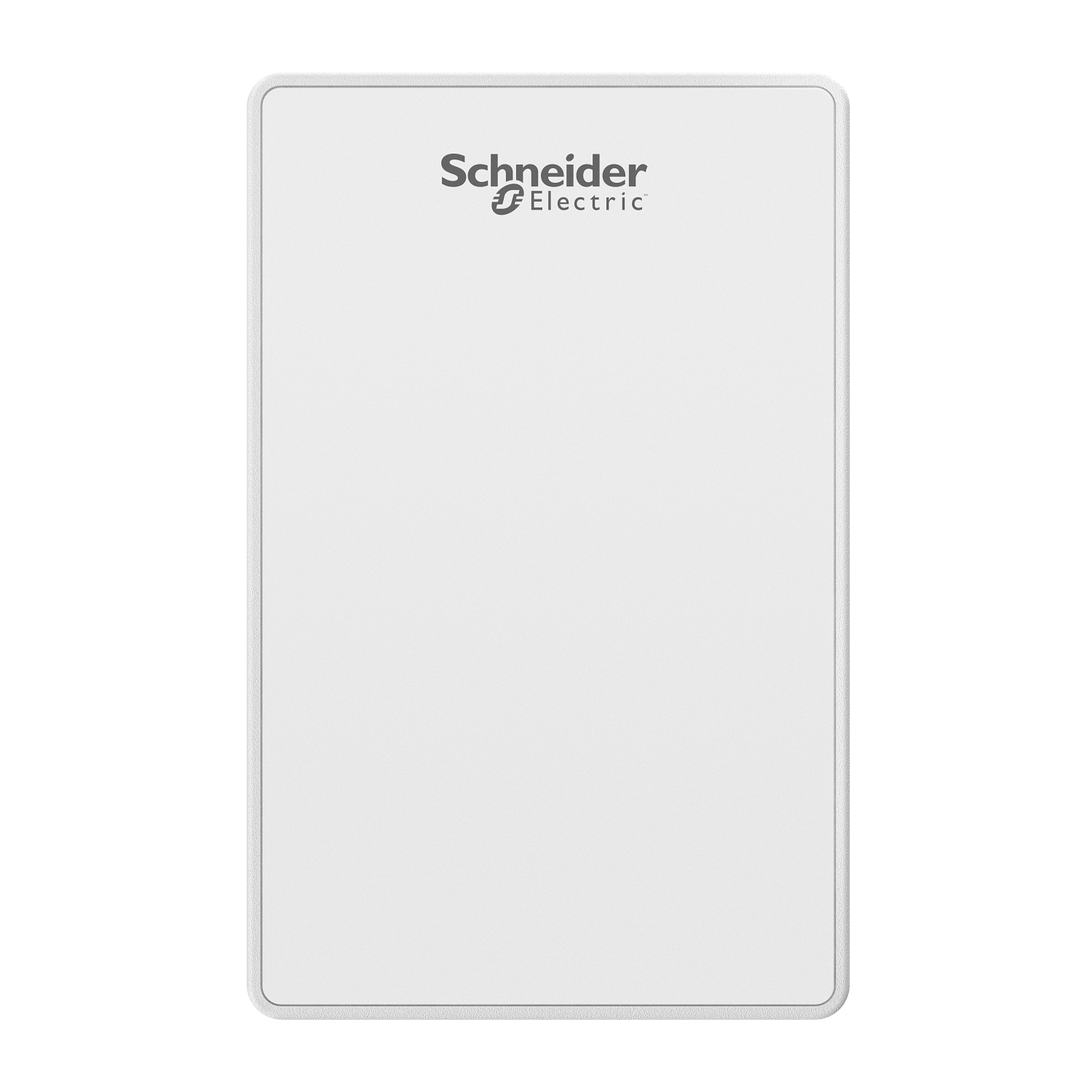

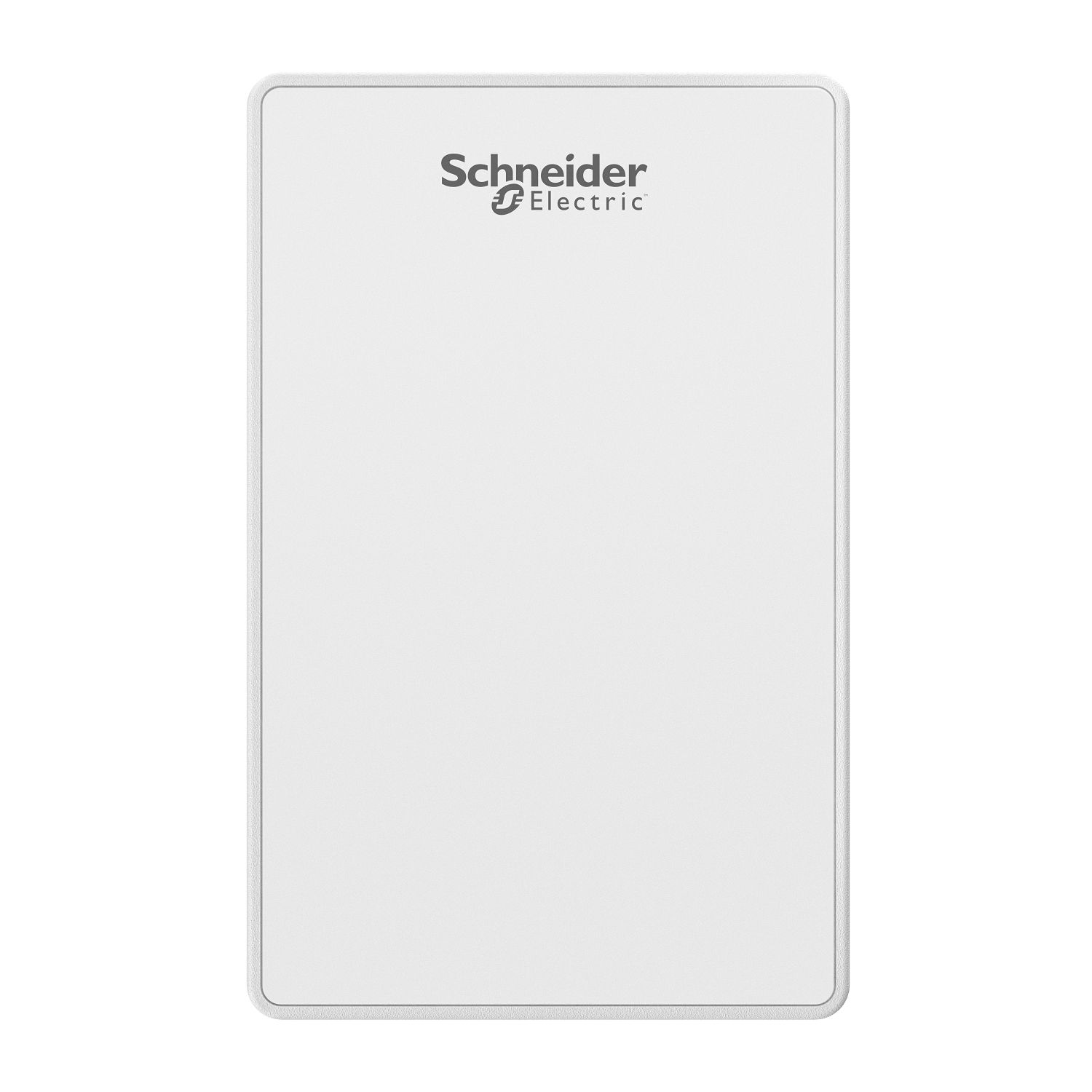

Security Expert smartcard reader, 13.56MHz, wall plate, white
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Depth | 18 mm |
| Width | 73 mm |
| [In] rated current | 130 mA |
| Technology type | RFID |
| Ambient air temperature for storage | -10-85 °C |
| Colour | white |
| Mounting mode | wall-mounted |
| Net weight | 155.8 g |
| Product or component type | access control card reader |
| Standards | CAN/ULC-S319-05, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006, UL 294, ICES-003, FCC CFR 47 part 15:class A |
| Communication port protocol | RS485, Wiegand |
| Maximum cable distance between devices | 150 m |
| Ambient air temperature for operation | -35-65 °C |
| Height | 115 mm |
| [Us] rated supply voltage | 9.5...14 V DC |
| Product certifications | CE, RCM |
