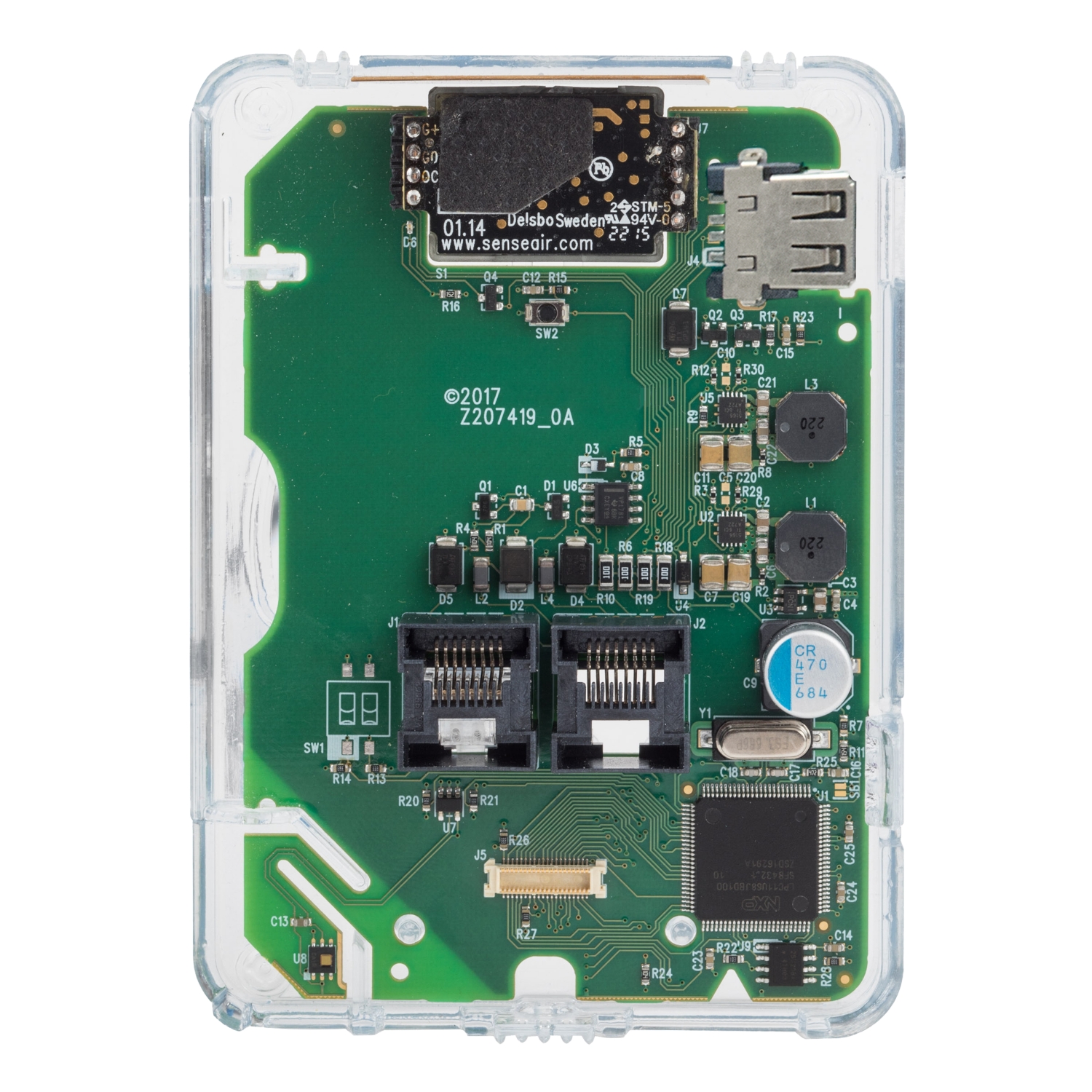

Sensor Base for SmartX IP Controllers,Temp, CO2 - Cover not included

Manufacturer: Schneider Electric

SKU: SXWSBTXCXSXX

GTIN: 3606489507251

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $970.20 inc GST

Price: $1,283.09 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller. Without housing. This base include a temperature and humidity elements.

Products specifications

Attribute name	Attribute value
Main
IP degree of protection	IP20
Depth	20.7 mm
Colour	white
Display type	without display
Output type	sensor bus
Width	81.2 mm
Local signalling	1 LED calibration (CAL)
Sensor type	transmitter
Relative humidity	0-95 %
Communication port protocol	RJ45
Flame retardance	UL94-V0
Range	SpaceLogic
CO2 measurement range	0...2000 ppm, 0...50 °C temperature
Location	living space
Product name	SmartX Living Space Sensor
Product or component type	sensor
Type of measurement	temperature, carbon dioxide (CO2)
Power consumption in W	2 W
Standards	FCC part 15 class B, UL 916
Ambient air temperature for operation	0-50 °C
Height	111.6 mm
[Us] rated supply voltage	24 V DC
Product certifications	ICES-003, RCM, EAC, CE
Complementary
Function available	with CO2 sensor, with temperature sensor
Device presentation	without cover
Supply	via bus connector
