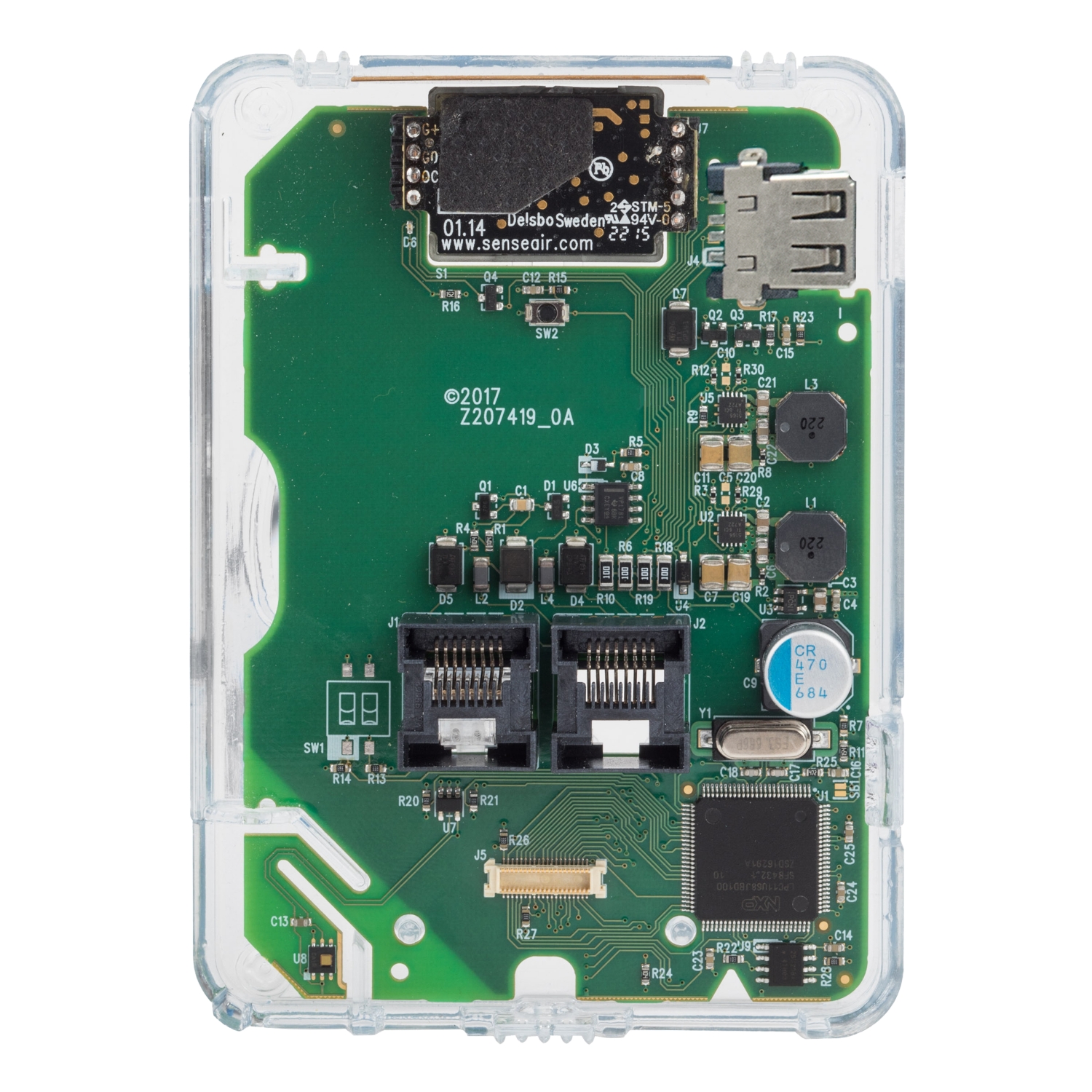

Sensor Base for SmartX IP Controllers Temperature - Cover not included

Manufacturer: Schneider Electric

SKU: SXWSBTXXXSXX

GTIN: 3606489507237

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $195.36 inc GST

Price: $258.36 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller. Without housing. This base include a temperature and CO² elements.

Products specifications

Attribute name	Attribute value
Main
IP degree of protection	IP20
Depth	20.7 mm
Colour	white
Output type	SmartX Sensor Bus
Width	81.2 mm
Sensor type	transmitter
Relative humidity	0-95 %
Function available	with temperature sensor
Flame retardance	UL94-V0
Range	SpaceLogic
Location	living space
Product name	SmartX Living Space Sensor
Ambient air temperature for operation	0-50 °C
Product or component type	sensor
Type of measurement	temperature
Standards	FCC part 15 class B, UL 916
Height	111.6 mm
Complementary
Material	ABS (acrylonitrile butadiene-styrene)
Max power consumption in W	2 W
[Us] rated supply voltage	24 V DC
Device presentation	without cover
Display type	without display
Range compatibility	EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Communication port support	RJ45
Environment
Product certifications	ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Measurement range	0...50 °C temperature
