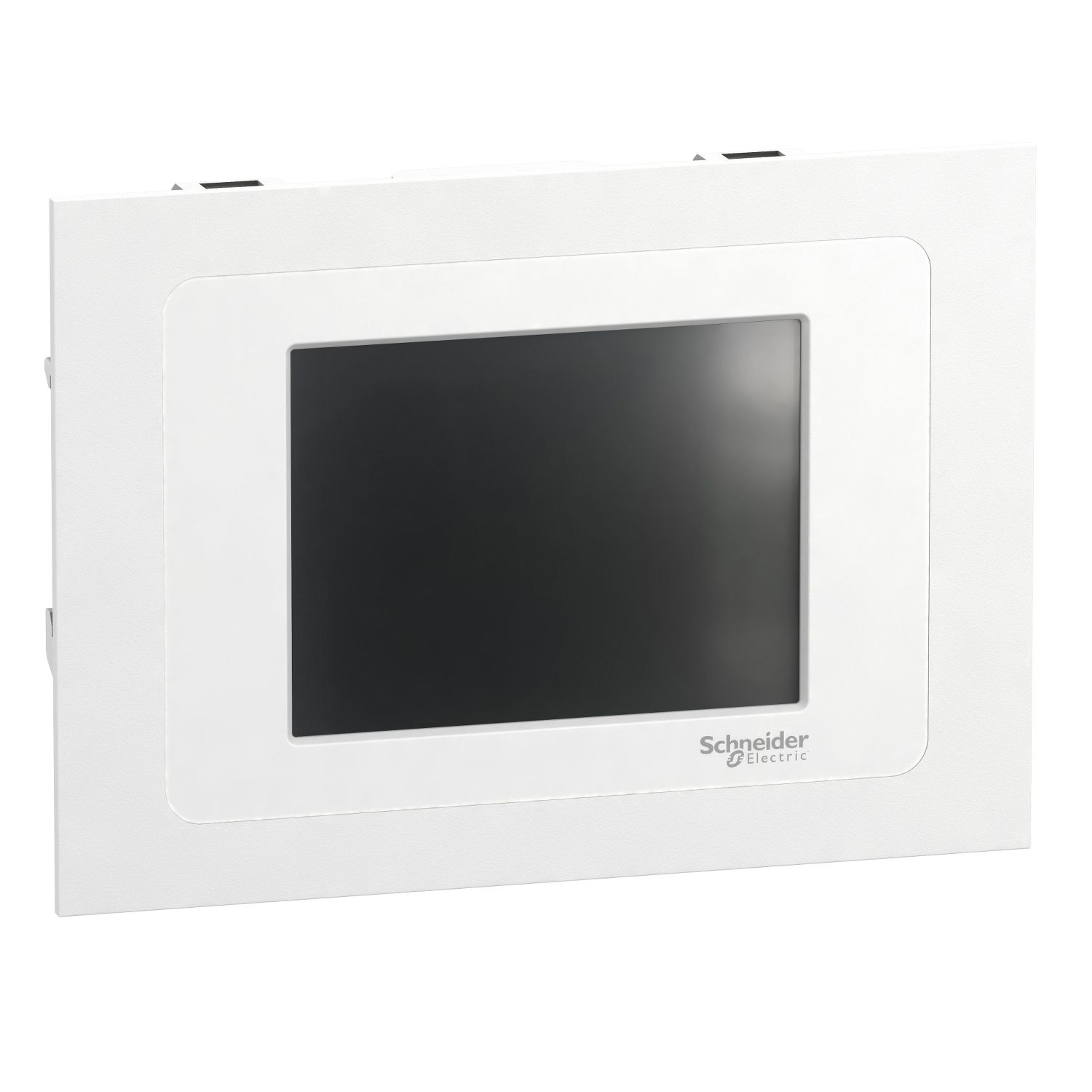

This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is a remote color touch screen display. It is designed for remote control of plc, either indoor or outdoor uses. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP65 on front face. It measures 134mm wide, 35mm deep, 196mm high, and weighs 0,175kg. It is remote display for Modicon M172 logic controllers. It is certified by cURus, RCM, CE, CSA, and EAC. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for flush mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M171/M172 |
| Product or component type | display module |
| Supply | external source |
| Complementary | |
| Product compatibility | logic controller M172, logic controller M171 |
| Display type | LCD display, colour touchscreen |
| Colour | white |
| [Us] rated supply voltage | 24 V AC/DC |
| Power consumption in W | 1.3 W, 3.2 VA |
| Height | 96 mm |
| Depth | 35 mm |
| Overvoltage category | II |
| Width | 134 mm |
| Net weight | 0.175 kg |
| Display resolution | 320 x 240 pixels |
| Environment | |
| IP degree of protection | IP65 front panel: |
| Ambient air temperature for storage | -30-60 °C |
| Directives | 2014/30/EU - electromagnetic compatibility |
| Pollution degree | 2 |
| Ambient air temperature for operation | -20-60 °C |
| Standards | IEC 60730-2-9, IEC 61000-4-3, UL 60730-2-9, CSA E60730-2-9, IEC 61000-4-6, IEC 61000-4-4, UL 60730-1, IEC 61000-4-11, CAN/CSA-E60730-1, IEC 61000-4-5, IEC 60730-1, IEC 61000-4-2 |
| Product certifications | EAC, CSA, CE, RCM, cURus |
