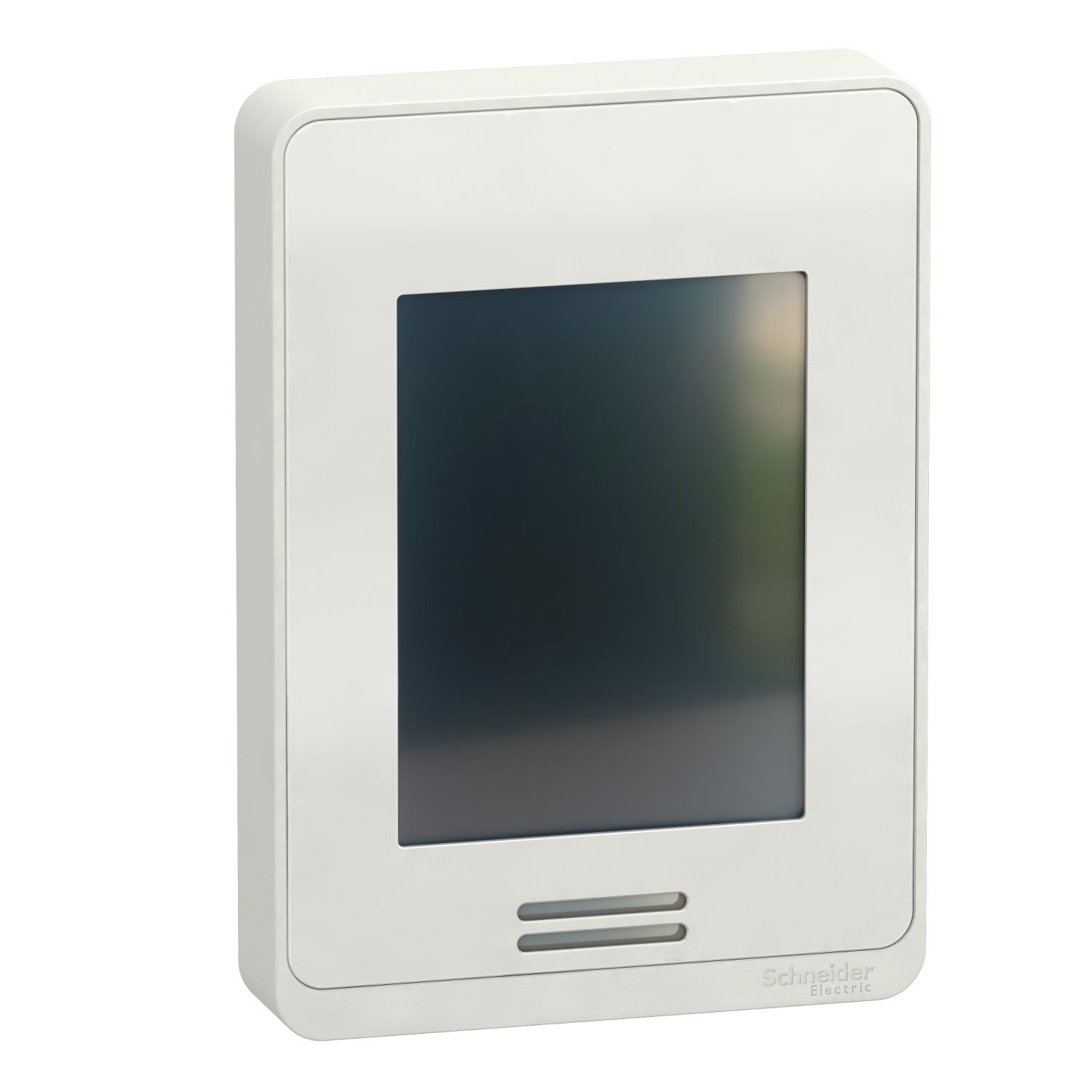

This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is powered with a 24VACDC supply and has a built-in sensor for Temperature control. It is designed for indoor use to control temperature with a built-in sensor. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP20. It measures 86mm wide, 25mm deep, 120mm high, and weighs 0.340kg. It is remote display for Modicon M172 logic controllers. It is certified by CE, RCM, EAC and CTUVus. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for wall mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M171/M172 |
| Product or component type | display module |
| Supply | external source |
| Complementary | |
| Product compatibility | logic controller M172, logic controller M171 |
| Display type | colour touchscreen, LCD display |
| Colour | white |
| [Us] rated supply voltage | 24 V AC/DC |
| Power consumption in W | 1.3 W, 3.2 VA |
| Height | 120 mm |
| Depth | 25 mm |
| Analogue input type | NTC 10k temperature probe at 21 °C +/- 0.5 °C, NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C |
| Width | 86 mm |
| Net weight | 0.34 kg |
| Display resolution | 320 x 240 pixels |
| Environment | |
| Ambient air temperature for storage | -30-50 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-50 °C |
| Standards | CSA C22.2 No 24, UL 873, EN 55032, EN 55024, IEC 60950-1 |
| Product certifications | cTUVus, CE, EAC, RCM |
