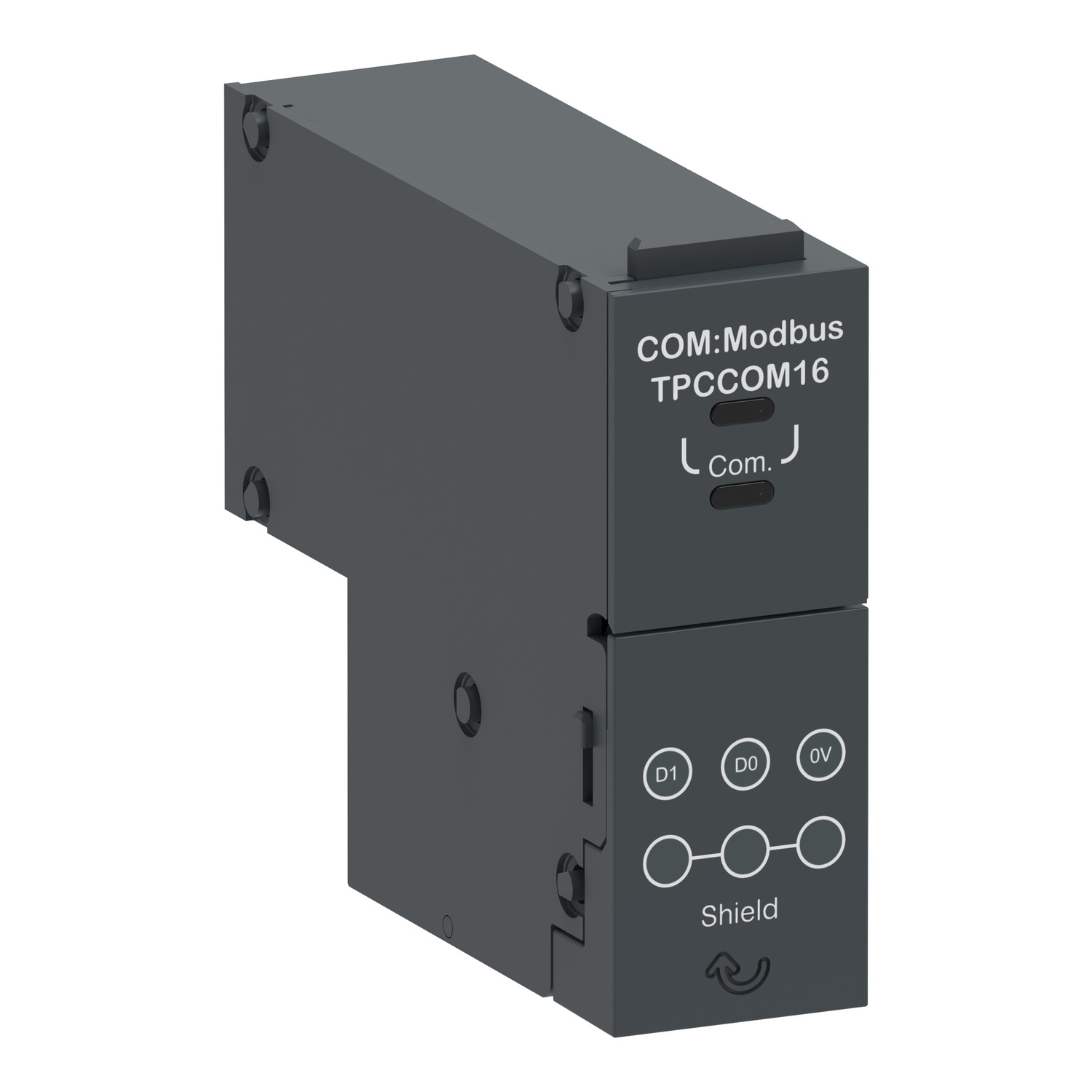

TPCCOM16 is output module used for communication accessory. The physical interface is RS485 with communication port RJ45,which is supported by modbus. It can provided 2 indicators for communication status and installation. This module provide status, analog parameters, event logs, equipment settings & configurations over embedded webpage and open protocol. The designed terminals are screwed with shielded twisted pair to fix. Its appearance is 20mm(width)x56.5mm(height)x69mm(depth).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | communication |
| Bus type | Modbus |
| Product or component type | Modbus RS485 communication module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 30 V DC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | in square |
| Type of cable | shielded twisted pair 1.5-1.5 mm² |
| Physical interface | RS485 |
| Mounting mode | plug-in |
| Function available | Modbus communication module |
| Accessory / separate part category | communication accessories |
| Communication network type | Modbus, Modbus RTU even parity, at 19200 bauds, Modbus, Modbus RTU even parity, at 9600 bauds, Modbus, Modbus RTU even parity, at 4800 bauds |
| Net weight | 40 g |
| Localisation on device | front face |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Height | 56.5 mm |
| Connections - terminals | screw-clamp terminals |
| Addressing | 0...248 |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
