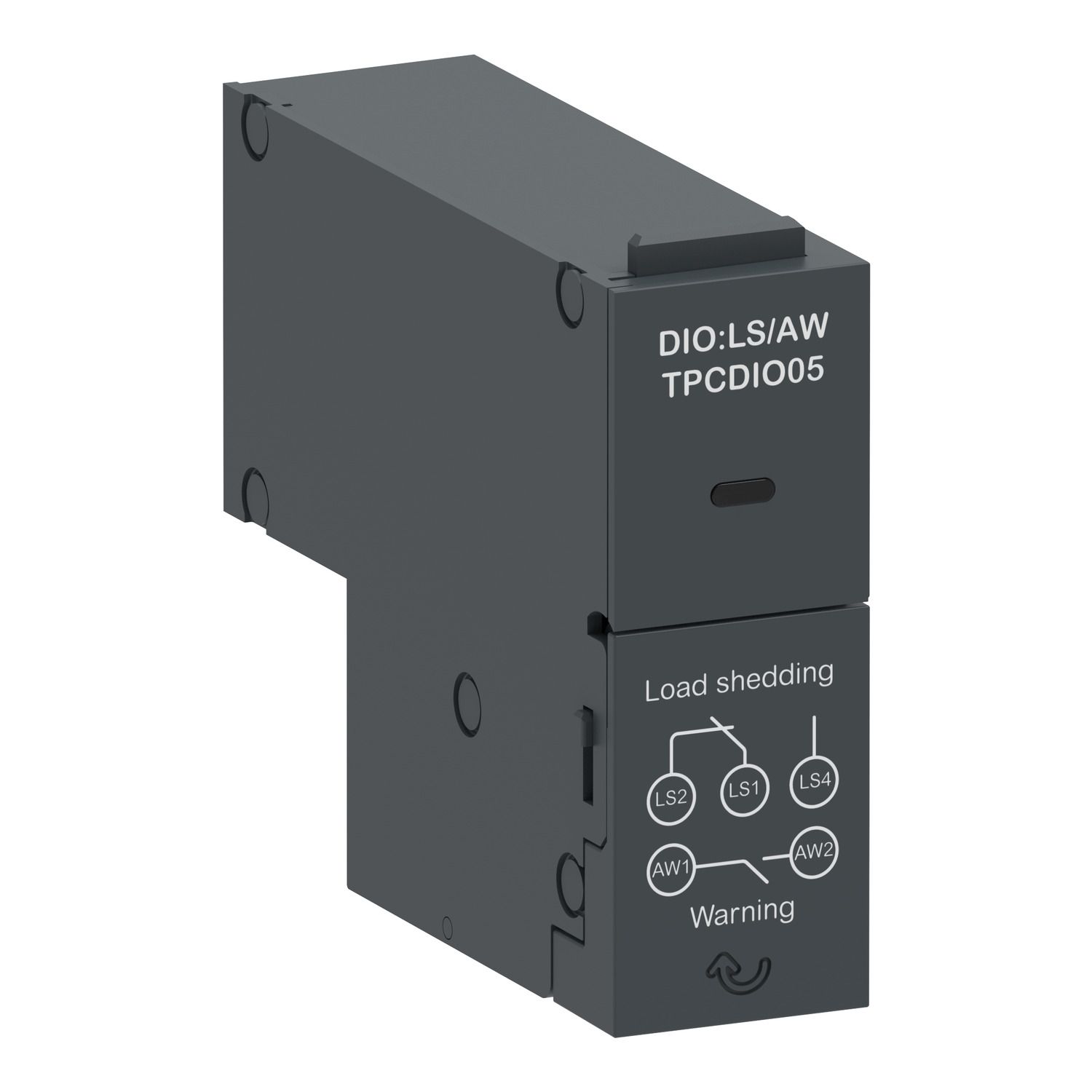

TPCDIO05 is output module as signalling accessory. This functional module is auxiliary contact for load shedding and status output. The rated operational current(Ie) is 5A @250VAC/30VDC. The load shedding signal can shed some non-critical loads when ATSE is on Alternate source. A “status” dry contact will activate the signal when transfer switch is not in auto or power is lost on two sources. The signal shall disappear when transfer switch returns to Auto or power is available.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 300 V AC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| [Ie] rated operational current | 5 A at 30 V DC, 5 A at 250 V AC |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Net weight | 40 g |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 2 NO + 1 NC |
| Height | 56.5 mm |
| Signalling function | output status, load-shedding indication |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
