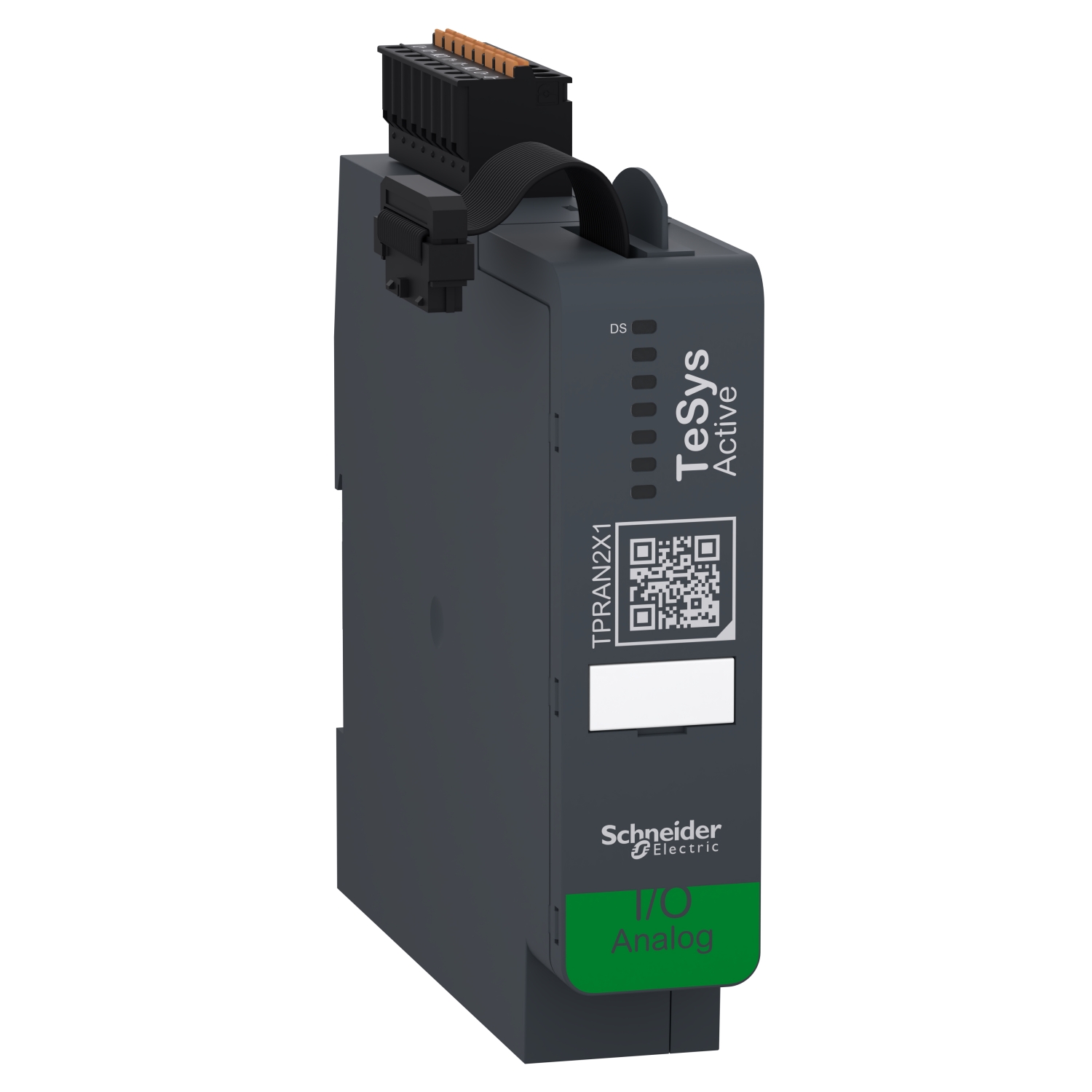

TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Measurement accuracy | +/- 0.4 % of full scale in negative temperature range thermocouple 25-25 °C, +/- 0.1 % of full scale in positive temperature range thermocouple 25-25 °C, +/- 0.1 % of full scale temperature probe 25-25 °C, +/- 0.1 % of full scale current 25-25 °C, +/- 0.1 % of full scale voltage 25-25 °C |
| Device short name | TPRAN |
| Device presentation | operational only when connected to a bus coupler TPRBC, enabling advanced control functions in a TeSys island system, IO module providing 2 analog inputs and 1 analog output |
| Range | TeSys |
| Type of cable | twisted shielded pairs cable <30 m for input/output circuit |
| Analogue input type | thermocouple 0...2315 °C thermocouple C, thermocouple - 200...800 °C thermocouple E, thermocouple - 200...1300 °C thermocouple N, thermocouple - 200...400 °C thermocouple T, thermocouple 0...1820 °C thermocouple B, thermocouple 0...1760 °C thermocouple S, thermocouple 0...1760 °C thermocouple R, thermocouple - 200...1300 °C thermocouple K, thermocouple - 200...1000 °C thermocouple J, temperature probe - 200...600 °C temperature probe: Pt 1000, temperature probe -200...+850 °C temperature probe: Pt 100, temperature probe - 60...180 °C temperature probe: Ni 1000, temperature probe - 60...180 °C temperature probe: Ni 100, voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA |
| Function of module | driving voltage or current source on 1 configurable analog output, measurement of voltage, current or temperature on 2 configurable analog inputs |
| Analogue output resolution | 11 bits + sign, - 10...10 V full scale, 12 bits, 0...10 V full scale, 12 bits, 0...20 mA full scale, 12 bits, 4...20 mA full scale |
| Local signalling | 1 LED (green/red) for DS (device status) |
| Product compatibility | TPRBC bus coupler |
| Analogue input number | 2 isolated with common point |
| Product name | TeSys island |
| Analogue input resolution | 15 bits + sign full scale |
| Product or component type | analog IO module |
| Analogue output type | voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA |
| Input impedance | >= 1 MOhm temperature probe, >= 1 MOhm thermocouple, >= 1 MOhm voltage, <= 50 Ohm current |
| Analogue output number | 1 isolated |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 0.5 kV conforming to IEC 61010-1 |
| Power dissipation in W | 0.5 W maximum |
| Connections - terminals | input/output circuit: removable spring terminal block 8 cable(s) 0.25-2.5 mm² (AWG 22...AWG 14) flexible with cable end, input/output circuit: removable spring terminal block 8 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, input/output circuit: removable spring terminal block 8 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) rigid |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201 |
| Product certifications | EAC (pending), CSA, UL |
| Height | 118 mm |
| [Us] rated supply voltage | 24 V DC supplied by the bus coupler |
| Depth | 114 mm |
| Width | 25 mm |
| Current consumption | 160 mA |
| Net weight | 0.172 kg |
| Mounting mode | horizontal and vertical (35 mm symmetrical rail) |
| Environment | |
| Fire resistance | 960 °C conforming to UL 94 |
| Relative humidity | 5-95 % |
| Protective treatment | TC |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -10-60 °C |
| Operating altitude | 0...2000 m without derating |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
Only registered users can write reviews
Related products

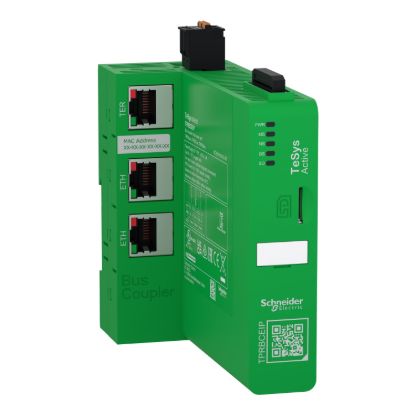

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
