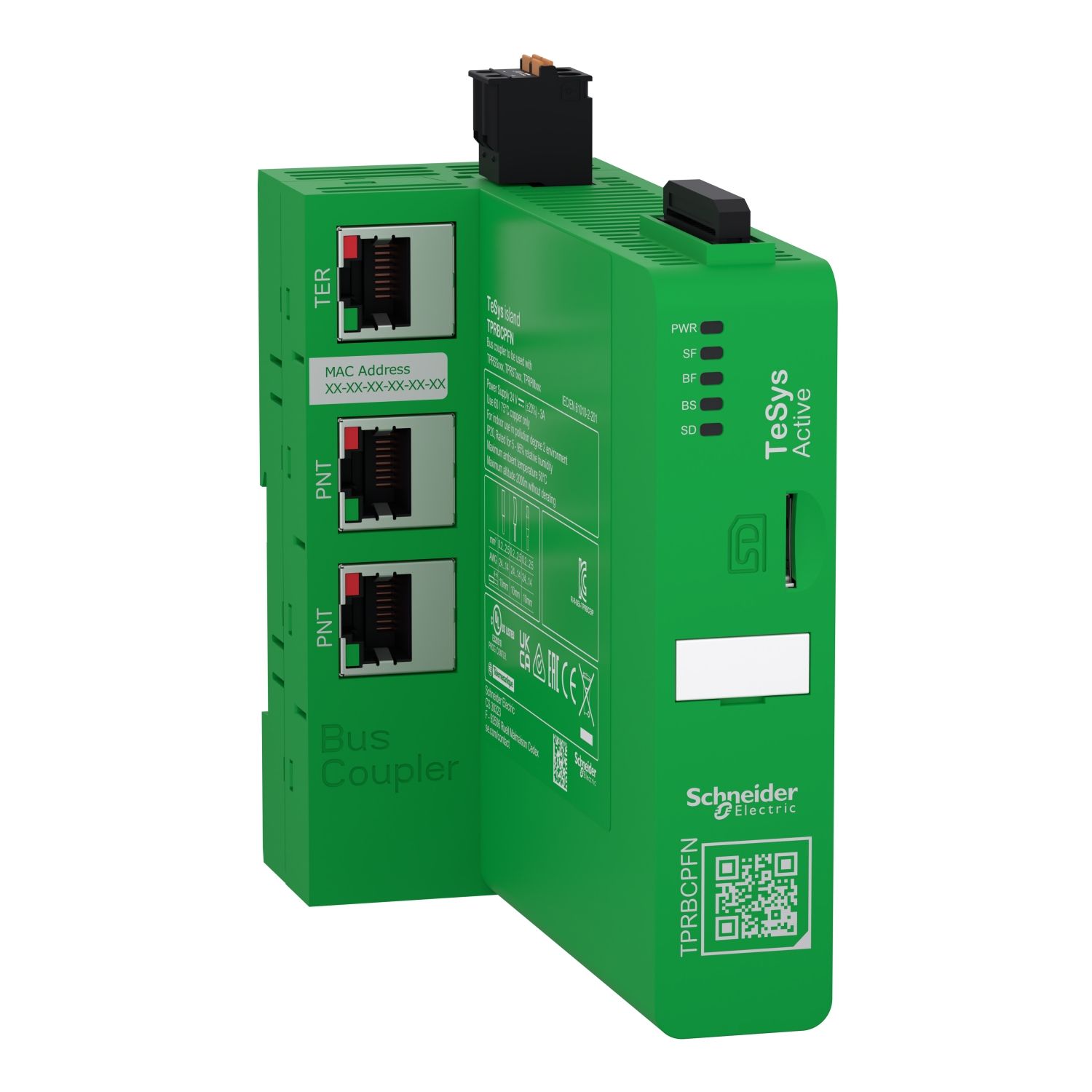

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TPRBC |
| Supply voltage limits | 20.4-28.8 V DC |
| Function available | one service port with an embedded webserver for maintenance, two fieldbus ports for communication with an automation controller, one single 24V DC power supply for the complete island, full integration with SoMove for the control of the island |
| Device presentation | management of the complete island up to 20 modules, point of connection between a group of starters and an automation controller |
| Range | TeSys |
| Power dissipation in W | 7 W maximum |
| Protection type | reverse polarity protection for power supply, external fuse, 3 A fast fuse for power supply |
| [Us] rated supply voltage | 24 V DC |
| Integrated connection type | 1 micro SD card port, 1 RJ45, connector female for protocol Ethernet TCP/IP, service port, 2 RJ45, connector female for protocol Profinet IO, fieldbus port |
| Product compatibility | TPRDG digital IO module, TPRAN analog IO module, TPRVM voltage interface module, TPRSM SIL interface module, TPRPM power module, TPRSS SIL motor starter, TPRST motor starter |
| Communication port protocol | Profinet IO |
| Communication service | SNTP client, DHCP client, net load class 1, conformance class A (CC-A) |
| Local signalling | 1 LED green/red with SD marking for SD card access (SD), 1 LED green/red with BS marking for internal bus status, 1 LED green/red with BF marking for network status, 1 LED green/red with SF marking for system fault, 1 LED green/yellow with PWR marking for power supply status |
| Product name | TeSys island |
| Product or component type | bus coupler |
| Rated current | 3 A maximum |
| Complementary | |
| Connections - terminals | power supply: removable spring terminal block 2 cable(s) 2.5-2.5 mm² (AWG 14) rigid or flexible |
| Standards | EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 60947-4-1 |
| Product certifications | PNO, Achilles: level 2, EAC, CSA, UL |
| Height | 118 mm |
| Depth | 114 mm |
| Width | 50 mm |
| Cybersecurity | Achilles certified |
| Net weight | 0.204 kg |
| Mounting mode | horizontal and vertical (35 mm symmetrical rail) |
| Environment | |
| Fire resistance | 960 °C conforming to UL 94 |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % |
| Protective treatment | TC |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 |
| Ambient air temperature for operation | -10-60 °C |
| Operating altitude | 0...2000 m without derating |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
Only registered users can write reviews
Related products
Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
TPRAN2X1
Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
$589.60 inc GST
$425.99 inc GST
Digital IO module, TeSys island, 4 inputs, 2 outputs, 24VDC
TPRDG4X2
Digital IO module, TeSys island, 4 inputs, 2 outputs, 24VDC
$202.18 inc GST
$146.08 inc GST
Motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
TPRST009
Motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
$265.65 inc GST
$191.93 inc GST
Motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type
TPRST025
Motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type
$329.45 inc GST
$238.03 inc GST
Motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
TPRST038
Motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
$470.25 inc GST
$339.76 inc GST
Motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
TPRST065
Motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
$743.60 inc GST
$537.25 inc GST
Motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type
TPRST080
Motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type
$794.20 inc GST
$573.81 inc GST
Power module, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp
TPRPM009
Power module, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp
$250.25 inc GST
$180.81 inc GST
Power module, TeSys island, 40A AC-1, 38A AC-3, 18.5kW, 20hp
TPRPM038
Power module, TeSys island, 40A AC-1, 38A AC-3, 18.5kW, 20hp
$334.36 inc GST
$241.58 inc GST
Power module, TeSys island, 80A at AC-1, 80A at AC-3, 37kW, 50hp
TPRPM080
Power module, TeSys island, 80A at AC-1, 80A at AC-3, 37kW, 50hp
$570.90 inc GST
$412.48 inc GST
SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop
TPRSM001
SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop
$368.58 inc GST
$266.30 inc GST
SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
TPRSS009
SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
$303.60 inc GST
$219.35 inc GST
SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type
TPRSS025
SIL motor starter, TeSys island, 30A at AC-1, 25A at AC-3, 11kW, 15hp, DOL type
$380.05 inc GST
$274.59 inc GST
SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
TPRSS038
SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
$538.89 inc GST
$389.35 inc GST
SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
TPRSS065
SIL motor starter, TeSys island, 80A at AC-1, 65A at AC-3, 30kW, 40hp, DOL type
$856.90 inc GST
$619.11 inc GST
SIL motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type
TPRSS080
SIL motor starter, TeSys island, 80A at AC-1, 66A at AC-3, 37kW, 40hp, DOL type
$912.89 inc GST
$659.56 inc GST

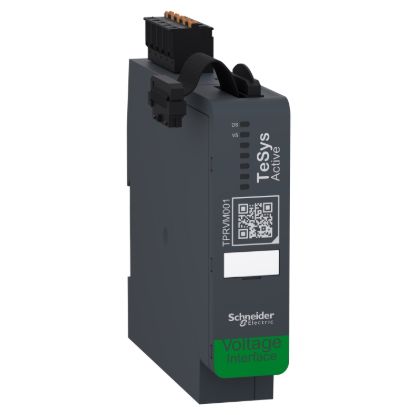

Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop
