Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Local signalling | 1 LED (amber) for configuration status (STS), 1 LED (amber) for Ethernet activity (ACT), 1 LED (green/red) for status of the module (Mod Status), 1 LED (red) for error condition (ERR), 1 LED (green) for backplane communication status (RUN), 1 LED (green/red) for network communication status (Net Status) |
| Transmission rate | 10/100 Mbit/s with automatic recognition |
| Communication service | SOAP XML Web (client/server), Quality of Service (QoS), CIP Explicit messaging (server and client messaging), SNMP agent, DHCP/BootP server, Modbus TCP messaging, FDR server, CIP implicit messaging (I/O communication) |

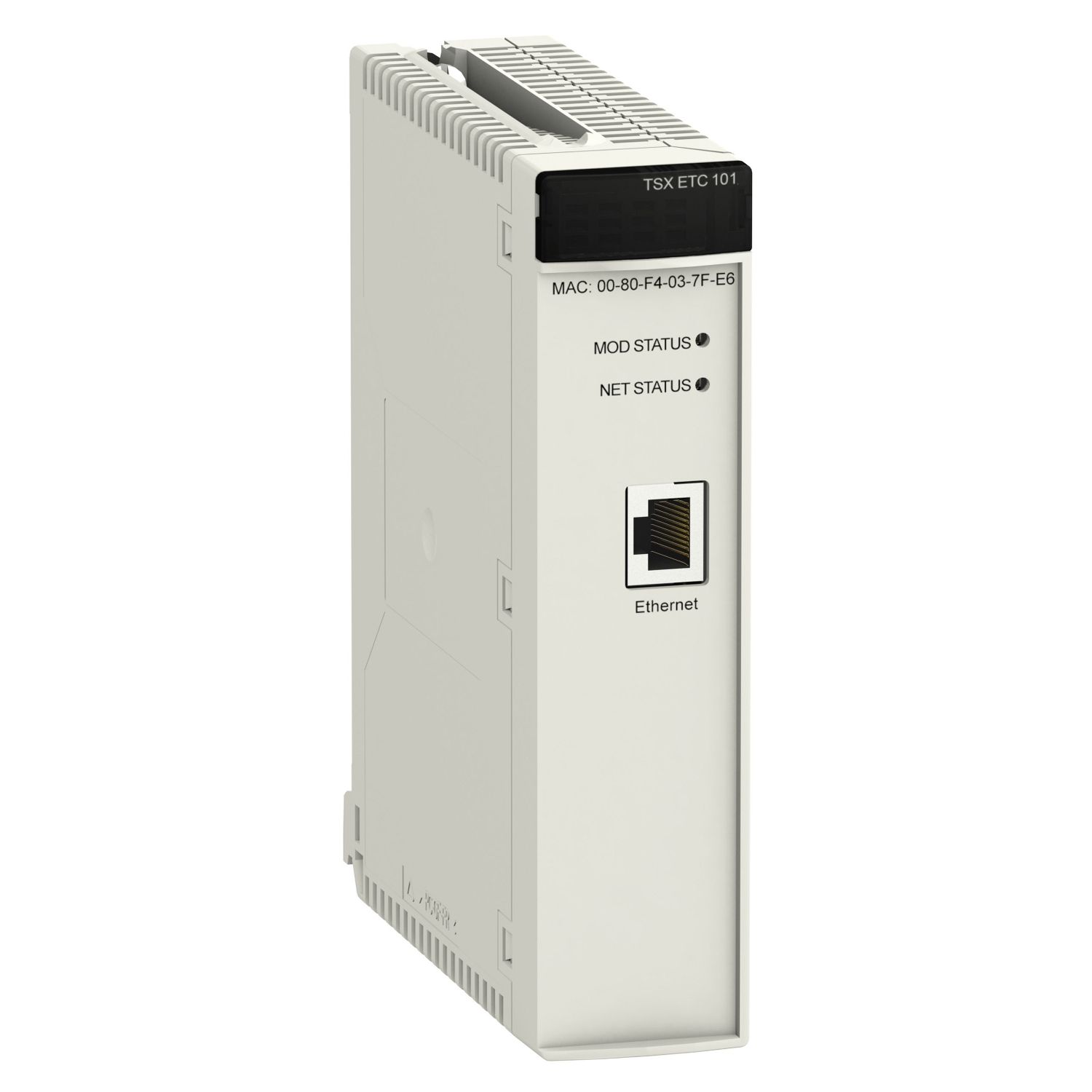

| Product or component type | Ethernet communication module |
| Supply | via the power supply of the rack |
| Physical interface | RJ45 - 10BASE-T/100BASE-TX 1 twisted pair |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Web server | transparent ready class B30 |
| Web services | rack viewer, Data Editor (via PC terminal) |
| Module format | standard |
| Product compatibility | Unity Pro (>= V5.0) |
| Communication port protocol | Modbus TCP, EtherNet/IP |
| Net weight | 0.34 kg |
| Marking | CE |
| Current consumption | 400 mA 5 V DC |
| Maximum number of connections | 128 |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % at 60-60 °C without condensation |
| Standards | UL 508, CSA C22.2 No 142 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | ODVA, cUL |
