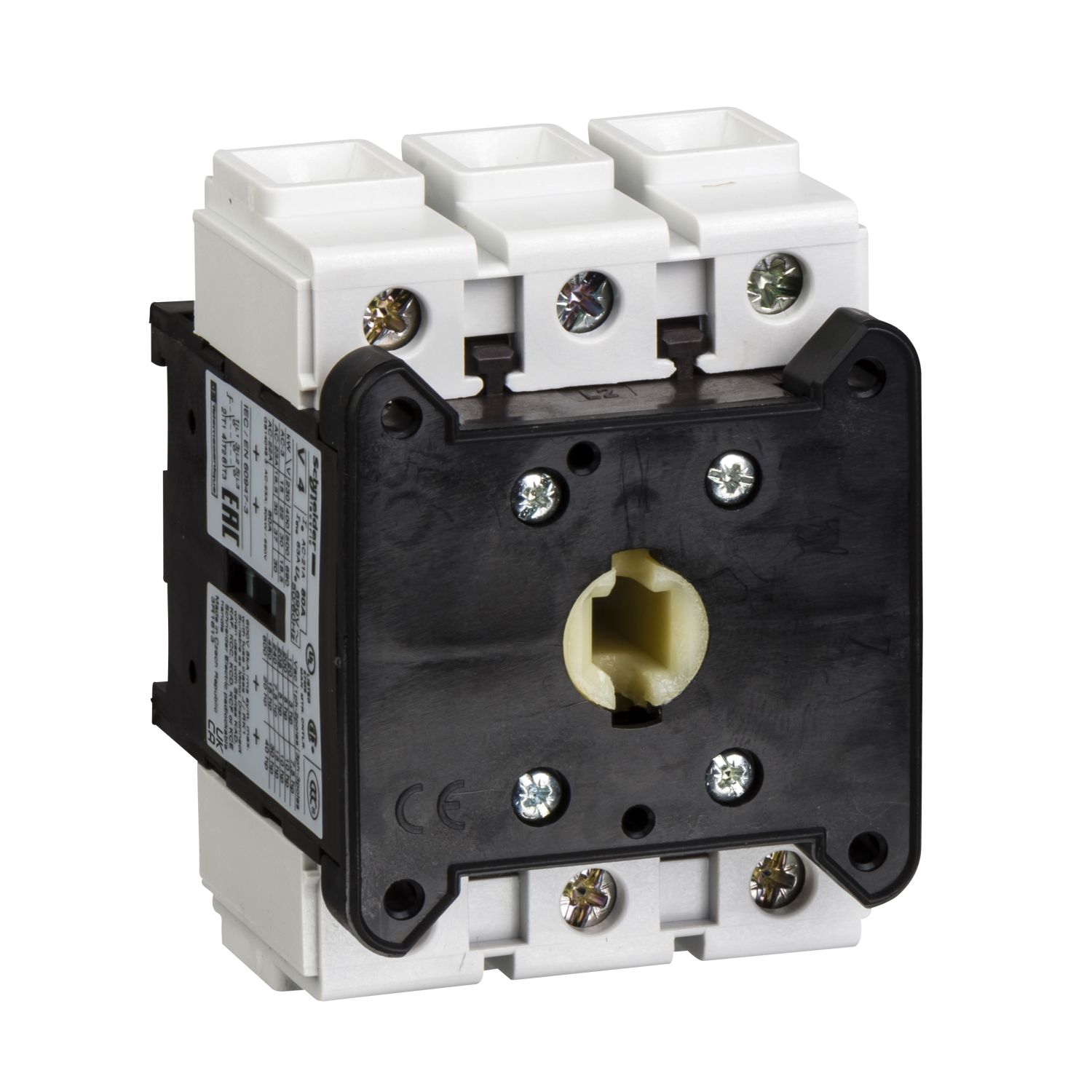

Switch body, TeSys Mini-Vario, for switch-disconnector, 3 poles, 175A

Manufacturer: Schneider Electric

SKU: V6

GTIN: 3389110551747

Catalog

Instruction sheet

Environmental Disclosure

Old price: $894.30 inc GST

Price: $354.95 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario switch body, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	V
Range	TeSys
Product name	TeSys VARIO
Product or component type	switch body
Complementary
[Icw] rated short-time withstand current	2100 A at 400 V duration: 1 s
Tightening torque	power circuit: 22.6-22.6 N.m - on screw clamp terminals
Compatibility code	V
Mechanical durability	30000 cycles
[Ie] rated operational current	83 A AC-23 Ue: 400 V
Electrical durability	30000 cycles DC-1...5, 30000 cycles AC-21
[Ith] conventional free air thermal current	175 A
Intermittent duty class	30
Height	125 mm
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 200 A gG, 10 kA at 400 V - associated fuse 200 A aM
Rated operational power in W	45 kW at 400...415 V (AC-23A), 30 kW at 230...240 V (AC-23A), 55 kW at 500 V (AC-23A), 45 kW at 690 V (AC-23A), 45 kW at 500 V (AC-3), 37 kW at 690 V (AC-3), 37 kW at 400...415 V (AC-3), 30 kW at 230...240 V (AC-3)
Breaking capacity	1400 A at 400 V (AC-23A), 1400 A at 400 V (AC-22A), 1400 A at 400 V (AC-21A)
Depth	90 mm
Width	90 mm
Poles description	3P
Suitability for isolation	yes
[Icm] rated short-circuit making capacity	2.8 kA at 400 V at Ipeak
Contacts type and composition	3 NO
Connections - terminals	power circuit: screw clamp terminals95-95 mm² - solid, power circuit: screw clamp terminals70-70 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage	8 kV
Making capacity	1600 A at 400 V AC-21A, 1750 A at 400 V AC-23A, 1750 A at 400 V AC-22A
Performance level	high performance
Net weight	0.9 kg
[Ithe] conventional enclosed thermal current	140 A
Network type	DC, AC
Mounting support	plate, symmetrical rail
[Ue] rated operational voltage	690 V AC 50/60 Hz
Network frequency	50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20-50 °C
Standards	IEC 60947-3
Product certifications	UKCA, GL, CSA, UL
