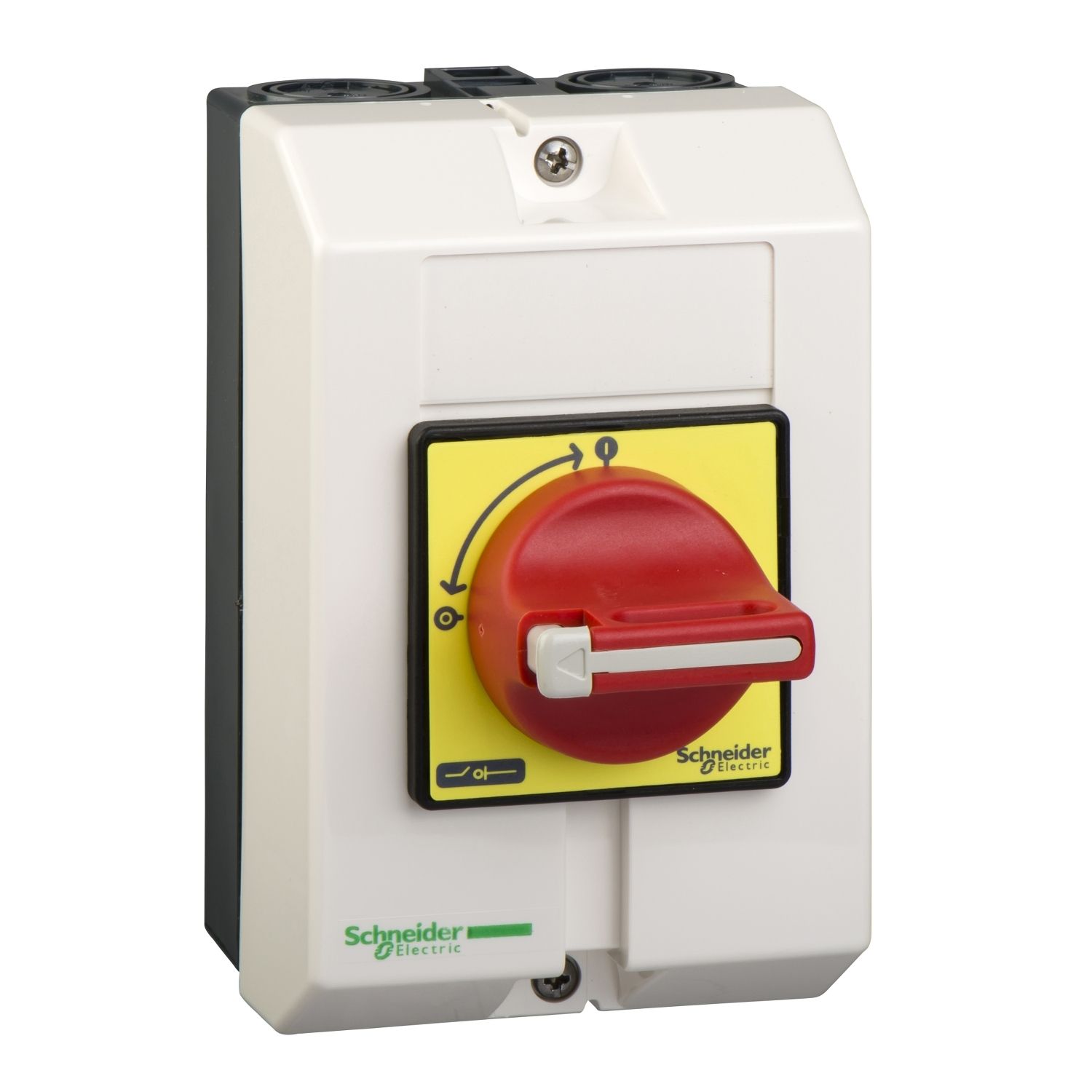

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main and emergency stop switching in motor applications AC-23 up to 15kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V2 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1,environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VCF |
| Control type | rotary handle |
| Range | TeSys |
| Poles description | 3P |
| Performance level | high performance |
| Product name | TeSys VARIO |
| Product or component type | enclosed emergency stop switch disconnector |
| Handle colour | red |
| Handle front plate colour | yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Complementary | |
| [Icw] rated short-time withstand current | 480 A at 400 V duration: 1 s |
| Tightening torque | 2.1-2.1 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| Compatibility code | enclosed switch disconnector |
| Mechanical durability | 100000 cycles |
| [Ie] rated operational current | 29 A (AC-23A) at 400 V |
| Environmental characteristic | standard environment |
| Electrical durability | 30000 cycles DC-1...5, 100000 cycles AC-21 |
| Base dimension | 60 x 60 mm |
| Marking | 0 - 1 |
| Intermittent duty class | 30 |
| Height | 146 mm |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 50 A gG, 10 kA at 400 V - associated fuse 50 A aM |
| Rated operational power in W | 11 kW at 400 V (AC-3), 15 kW at 400 V (AC-23) |
| Breaking capacity | 320 A at 400 V (AC-23A), 320 A at 400 V (AC-22A), 320 A at 400 V (AC-21A) |
| Depth | 131 mm |
| Width | 90 mm |
| Suitability for isolation | yes |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| Connections - terminals | screw clamp terminals6-6 mm² - flexible - with cable end, screw clamp terminals10-10 mm² - solid |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Making capacity | 400 A at 400 V AC-23A, 400 A at 400 V AC-22A, 400 A at 400 V AC-21A |
| Net weight | 0.5 kg |
| [Ithe] conventional enclosed thermal current | 32 A |
| [Ue] rated operational voltage | 690 V AC |
| Environment | |
| Mechanical robustness | shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Ambient air temperature for operation | -20-50 °C |
| Standards | IEC 60947-4-1, IEC 60204 |
