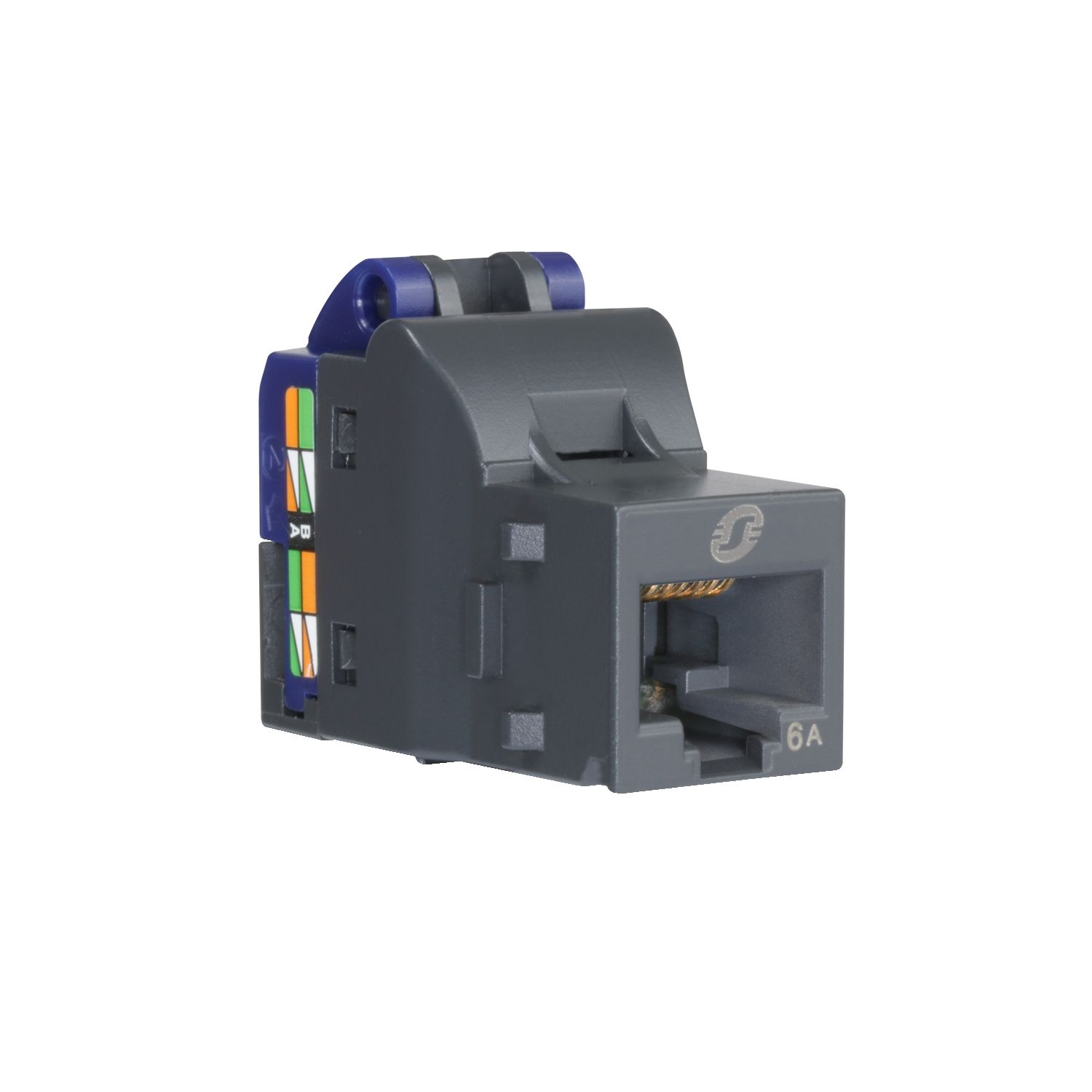

This ACTASSI S-ONE DPM is state-of-the-art RJ45 connector for cabling systems solutions designed for buildings and data centres. Its one piece design allows faster and safer installation and delivers Cat6A high performance level. It is a tooless RJ45 connector which is part of the entire ACTASSI range to create full cabling solutions, backed by extended system warranty. It is designed for unshielded infrastructure and is mutli-standard certified(IEC,TIA,UL)as well as Green Premium compliant(RoHS/REACH). The connector is delivered in carton box of 12 pieces and is open ready to be used. Cat6A unshielded tooless RJ45 connector with S-ONE DPM footprint. Delivered in a practical eco-carton box of 12 pcs. One piece design -easy to handle and to make connection.Delivered open/ready to use/ - U-shape for cable entry to ease installer job. Ergonomic design - smooth bridle to avoid installer pain during closing for connection. Smart bridle with elastomer for cable locking. Central cable entry for optimized performances.protected IDC so that impossible to damage cable or fingers. Component certified according to ISO/IEC 60603-7. Audible /clic/ to know that S-ONE is closed and connection is done. Quick release button to re-open the jack in case of wiring check or modification required. Compatible with all ACTASSI range with extended system warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour code | 568 A/B |
| Quantity per set | set of 12 |
| Device presentation | integrated one piece design |
| Range | Actassi |
| Type of packing | carton |
| Product or component type | RJ45 network socket |
| Colour tint | connector: dark grey (ABS + PC), wire organizer: dark blue (ABS + PC) |
| Complementary | |
| Contact resistance | 20 mOhm |
| Communication network category | 6<sub>A</sub> |
| AWG gauge | AWG 24...AWG 23 |
| Pulling force | 50 N during 60 s |
| Transmission frequency | 0-500 MHz |
| Cable shielding type | UTP |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Transverse conversion loss | >= 68 - 20 x log(f) dB at 1-500000 kHz, >= 50 dB |
| Insulation resistance | initial insulation resistance: >= 500 MOhm at 100 V DC |
| Height | 28 mm |
| Type of footprint | S-One DPM |
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Cable outer diameter | 0.9-1.4 mm |
| Width | 18 mm |
| Mechanical durability | 750 cycles |
| Communication port protocol | 4PPoE 100W (Power over Ethernet), PoE+ (Power over Ethernet), VoIP (Voice IP) |
| Length | 33 mm |
| Targeted region | Europe |
| Tool type | without tool |
| [In] rated current | 1.5 A at 25 °C |
| Coupling attenuation | >= 75 - 20 x log(f) dB at 100-1000 MHz, >= 35 dB at 30-100 MHz |
| Communication network type | 10GBASE-T |
| Environment | |
| Climatic withstand | 40/070/21 (21 days) |
| Standards | IEC 60512-99-002, UL 1863, ISO/IEC 11801:2011 Ed.2.2, IEC 60603-7-5, ANSI/TIA-568-C.2 |
| Ambient air temperature for operation | -40-70 °C |
| Flame retardance | UL94-V0 |
