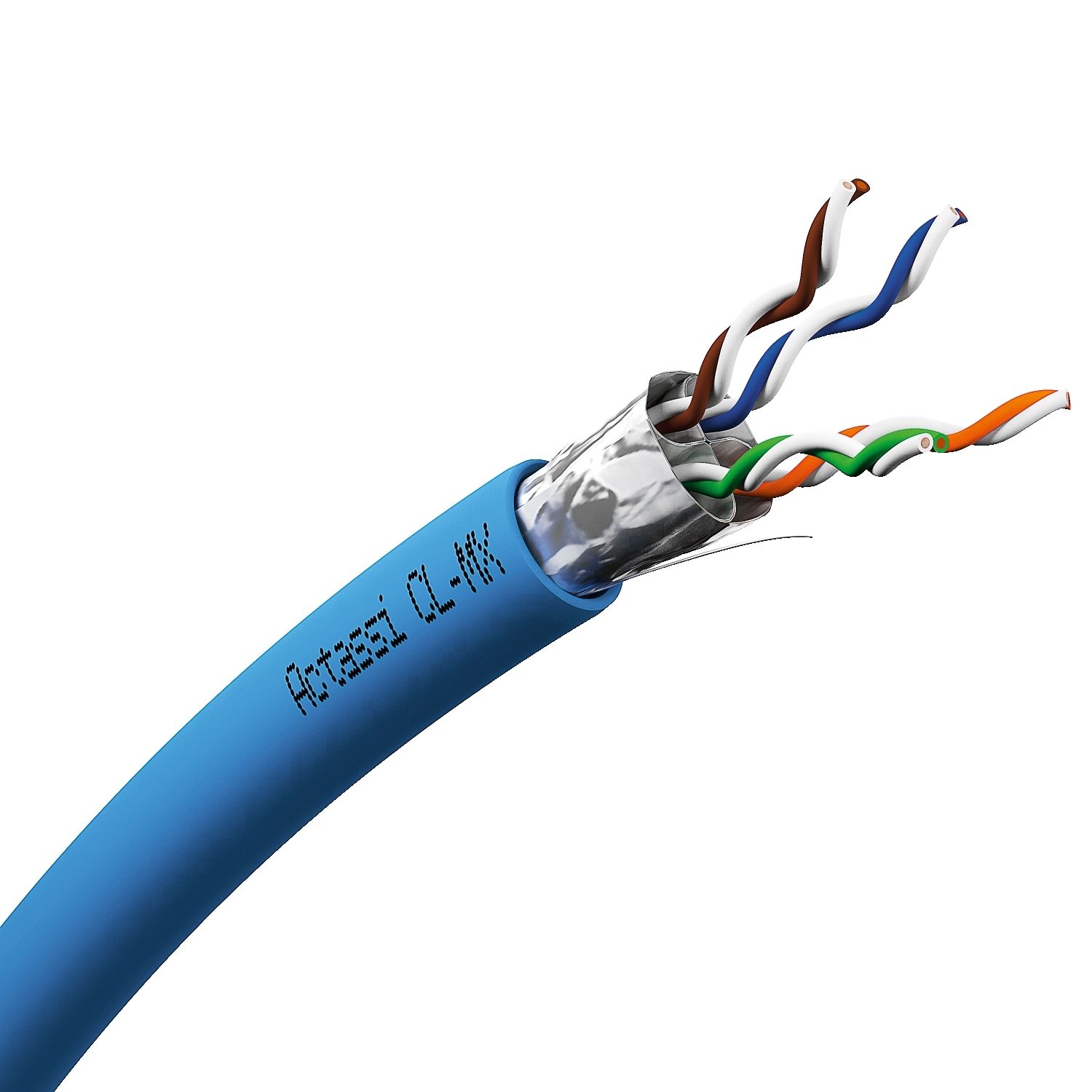

This device is a network cable, is blue in color and is used for data communication. The network cable is made of PE (polyethylene), metallic crossfiller, solid bare copper, making it resistant and durable. Its directives are 2006/95/EC - low voltage directive, 2011/65/EU - Ro.HS directive, 305/2011/EU - construction product regulation. The cable type is 4 pair cables. This network cable is SVHC (substances of very high concern) free. It well satisfied the standard of EN 50173-1, EN 50174-1, EN 50174-2, EN 50288-10-1, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 61156-5, IEEE 802.3af, IEEE 802.3at, ISO/IEC 14763-2. Its communication port protocol is 4PPo.E 100W (Power over Ethernet), Po.E 15W (Power over Ethernet), Po.E+ 30W (Power over Ethernet Plus), Vo.IP (Voice IP). The cable shielding type is.F/FTP with exclusive patented metallic crossfiller. This device is mercury free as well as heavy metal free, taking care of the environment and your health all the time.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Actassi |
| Cable shielding type | F/FTP with exclusive patented metallic crossfiller |
| Cable packaging | drum of 500 m |
| Product or component type | copper cable |
| Colour tint | blue |
| Complementary | |
| Euroclass level | Dca s2 d1 a1 |
| Power sum attenuation crosstalk ratio far-end [PSACRF] | 21 dB at 500 MHz, 27 dB at 250 MHz, 35 dB at 100 MHz |
| Communication network category | 6<sub>A</sub> |
| Nominal velocity propagation | 82 % |
| Segregation class | class c conforming to EN 50174-2 |
| Calorific value | 595 MJ/km |
| Cable weight | 54 kg / 1 km |
| Maximum loop resistance | 143.2 Ohm per 1000 m |
| Type of cable | 4 pair cables |
| Cable outer diameter | 7.3 mm |
| Power sum near-end crosstalk [PSNEXT] | Guaranteed: 51.8 dB Typical: 59.1 dB at 500 MHz , Guaranteed: 56.3 dB Typical: 64.2 dB at 250 MHz , Guaranteed: 62.3 dB Typical: 71.0 dB at 100 MHz |
| Cable length | 500 m |
| Attenuation to Crosstalk Ratio Far-end [ACRF] | Guaranteed: 24 dB Typical: 40.5 dB at 500 MHz , Guaranteed: 30 dB Typical: 46.6 dB at 250 MHz , Guaranteed: 38 dB Typical: 54.7 dB at 100 MHz |
| Attenuation | Guaranteed: 45.3 dB Typical: 41.4 dB @ 500 MHz, Guaranteed: 31.1 dB Typical: 28.4 dB @ 250 MHz, Guaranteed: 19.1 dB Typical: 17.5 dB @ 100 MHz |
| Pulling force | 100 N |
| Bending radius | minimum bending radius after installation: 4 x overall diameter, minimum bending radius during installation: 8 x overall diameter |
| Minimum return loss | Guaranteed: 17.3 dB at 500 MHz typical: 20.3 dB, Guaranteed: 17.3 dB at 250 MHz typical: 22 dB, Guaranteed: 20.1 dB at 100 MHz typical: 24.2 dB |
| Linear resistance | 71.6 mΩ/m |
| Material | PE (polyethylene): sheath, tinned copper: drain wire, metallic crossfiller: screen, PE (polyethylene): wire insulation, solid bare copper: conductor |
| AWG gauge | AWG 23 |
| Communication port protocol | 4PPoE 100W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), PoE 15W (Power over Ethernet) |
| Input impedance | 100 Ohm |
| Targeted region | Europe |
| Transfer impedance | <= 60 mOhm/m at 100-100 MHz conforming to IEC 61156-5, ed. 2 (grade 1), <= 30 mOhm/m at 30-30 MHz conforming to IEC 61156-5, ed. 2 (grade 1), <= 10 mOhm/m at 1-10 MHz conforming to IEC 61156-5, ed. 2 (grade 1) |
| Near end crosstalk [NEXT] | Guaranteed: 54.8 dB Typical: 60.1 dB at 500 MHz , Guaranteed: 59.3 dB Typical: 83.1 dB at 250 MHz , Guaranteed: 65.3 dB Typical: 85.5 dB at 100 MHz |
| Coupling attenuation | >= 75 - 20 x log10(f / 100) dB from 100-1000 MHz conforming to IEC 61156-5, ed. 2 type Ib, >= 75 dB from 30-100 MHz conforming to IEC 61156-5, ed. 2 type Ib |
| Communication network type | 10GBASE-T |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 305/2011/EU - construction product regulation, 2006/95/EC - low voltage directive |
| Flame retardance | LSZH |
| Standards | IEC 61034 smoke generation, IEC 60754-2 acidity of combustion gases, IEC 60754-1, IEC 60332-1 flame propagation characteristics, EN 50174-2 installation standards, ISO/IEC 14763-2 installation standards, EN 50288-10-1 performance, IEC 61156-5-ed. 2.1 performance, ANSI/TIA/EIA-568-C.2 performance, EN 50174-1 performance, EN 50173-1 performance, ISO/IEC 11801-ed. 3 performance |
| Ambient air temperature for operation | -20-60 °C |
| Ambient air temperature for installation | 0-50 °C |
