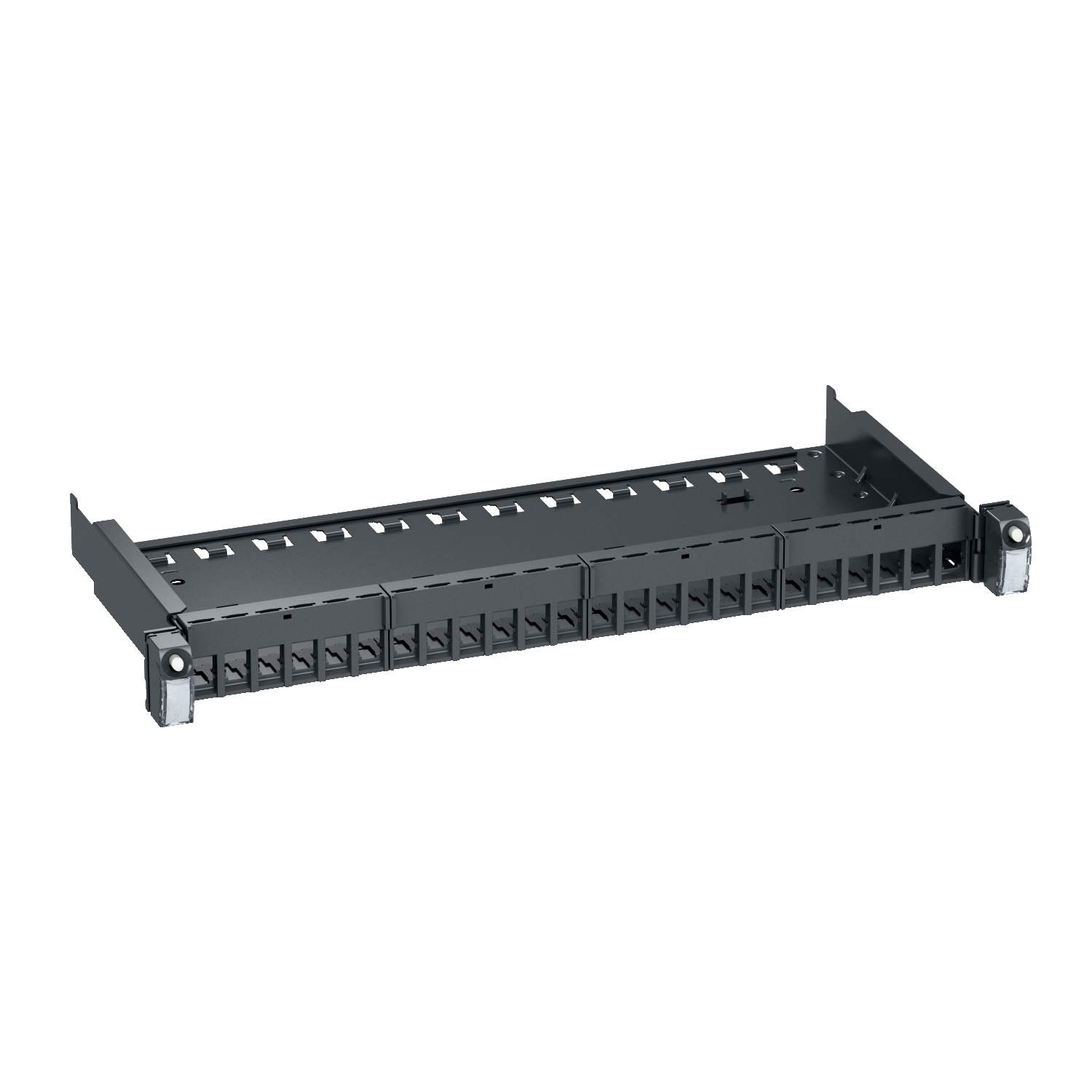

This empty sliding 19 inch copper panels contain a front configuration for 24 S-One DPM shielded connectors in 1U height. It is equipped with one Quick Fix function on both sides to allow a simple, quick fixing position and sliding feature. The panel is in metal material with thickness 1.2mm and dark grey RAL 7016. It provides simple clicking connectors for mounting and automatic earthing with the pre-eqipped bus bar. The panel dimensions- Height 45mm, Witdth 490mm, Depth 230mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | individual port identification label, 1 connector release tool, 2 quick fix 19" mountings, front port numbering |
| Colour | dark grey (RAL 7016) |
| Additional information | automatic grounding |
| Device presentation | empty |
| Range | Actassi |
| Product or component type | empty sliding 19" data panel |
| Complementary | |
| Depth | 230 mm |
| Width | 490 mm |
| Communication network category | 6<sub>A</sub>, 6, 5e |
| Number of rack unit | 1U |
| Number of port | 24 port of FTP/STP |
| Net weight | 2.3 kg |
| Material | PA66 GF20 plastic part, PA6 plastic part, DC01 metal sheet 1.2 mm |
| Targeted region | Europe, Asia Pacific. |
| Variant | basic |
| Height | 45 mm |
| Type of footprint | S-One DPM |
| Environment | |
| Standards | NF C 20-150, IEC 60297 |
| Ambient air temperature for operation | -10-55 °C |
