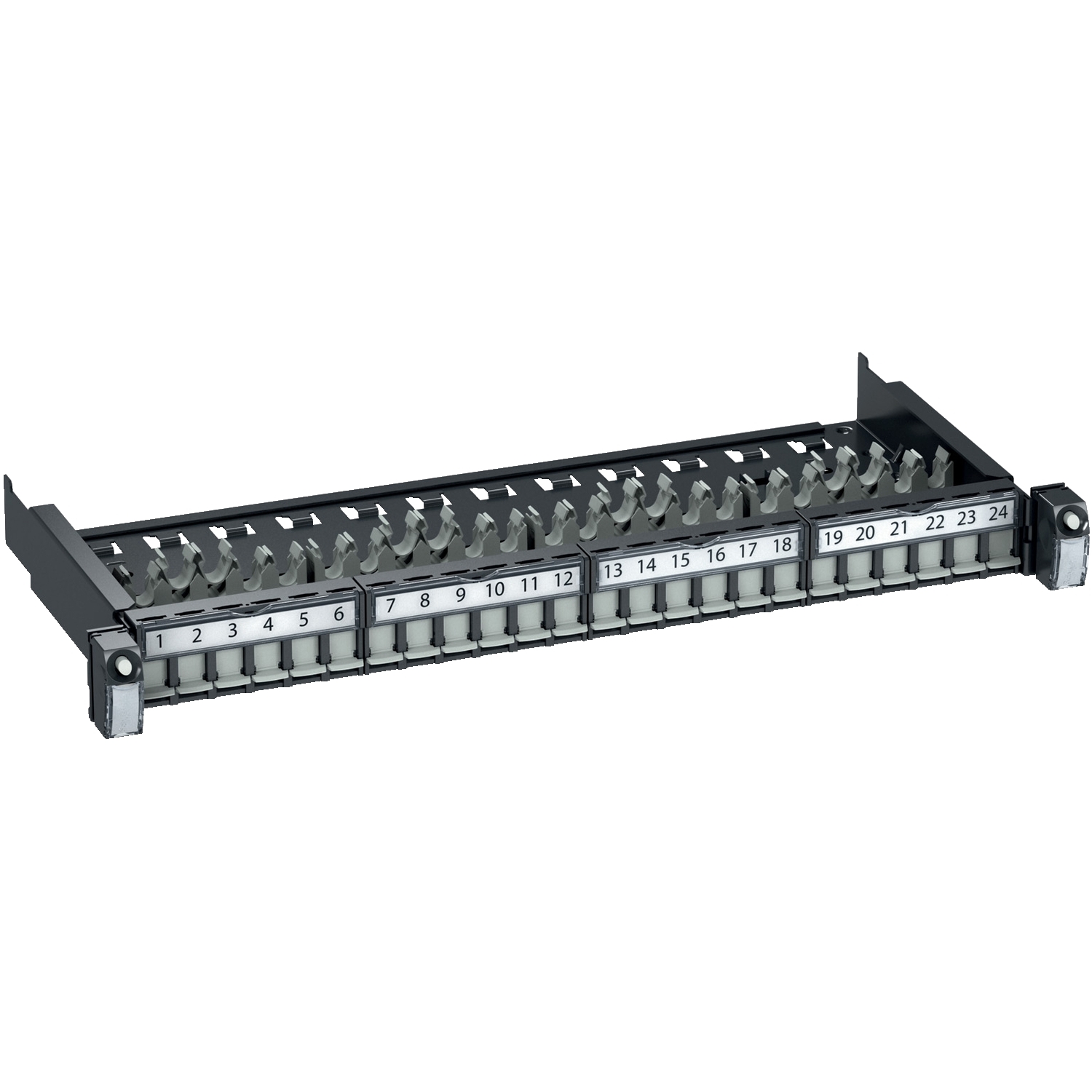

This empty sliding 19 inch copper panels contain a front configuration for 24 S-One DPM shielded connectors in 1U height. It is equipped with one Quick Fix function on both sides to allow a simple, quick fixing position and sliding feature. Plus pre-equipped with 24 light grey shutters, 4 label holders and 1 rear cable organizer. The panel is in metal material with thickness 1.2mm and dark grey RAL 7016. It provides simple clicking connectors for mounting and automatic earthing with the pre-eqipped bus bar. The panel dimensions- Height 45mm, Width 490mm, Depth 230mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | 1 rear cable organizer, 1 connector release tool, 2 quick fix 19" mountings, 4 label holders |
| Colour | dark grey (RAL 7016) |
| Additional information | automatic grounding |
| Device presentation | empty |
| Range | Actassi |
| Product or component type | empty sliding 19" data panel |
| Complementary | |
| Depth | 230 mm |
| Width | 490 mm |
| Communication network category | 6<sub>A</sub>, 6, 5e |
| Number of rack unit | 1U |
| Number of port | 24 port of FTP/STP |
| Net weight | 2.7 kg |
| Material | PA66 GF20 plastic part, PA6 plastic part, DC01 metal sheet 1.2 mm |
| Targeted region | Europe, Asia Pacific. |
| Variant | evolution |
| Height | 45 mm |
| Type of footprint | S-One DPM |
| Environment | |
| Standards | NF C 20-150, IEC 60297 |
| Ambient air temperature for operation | -10-55 °C |
