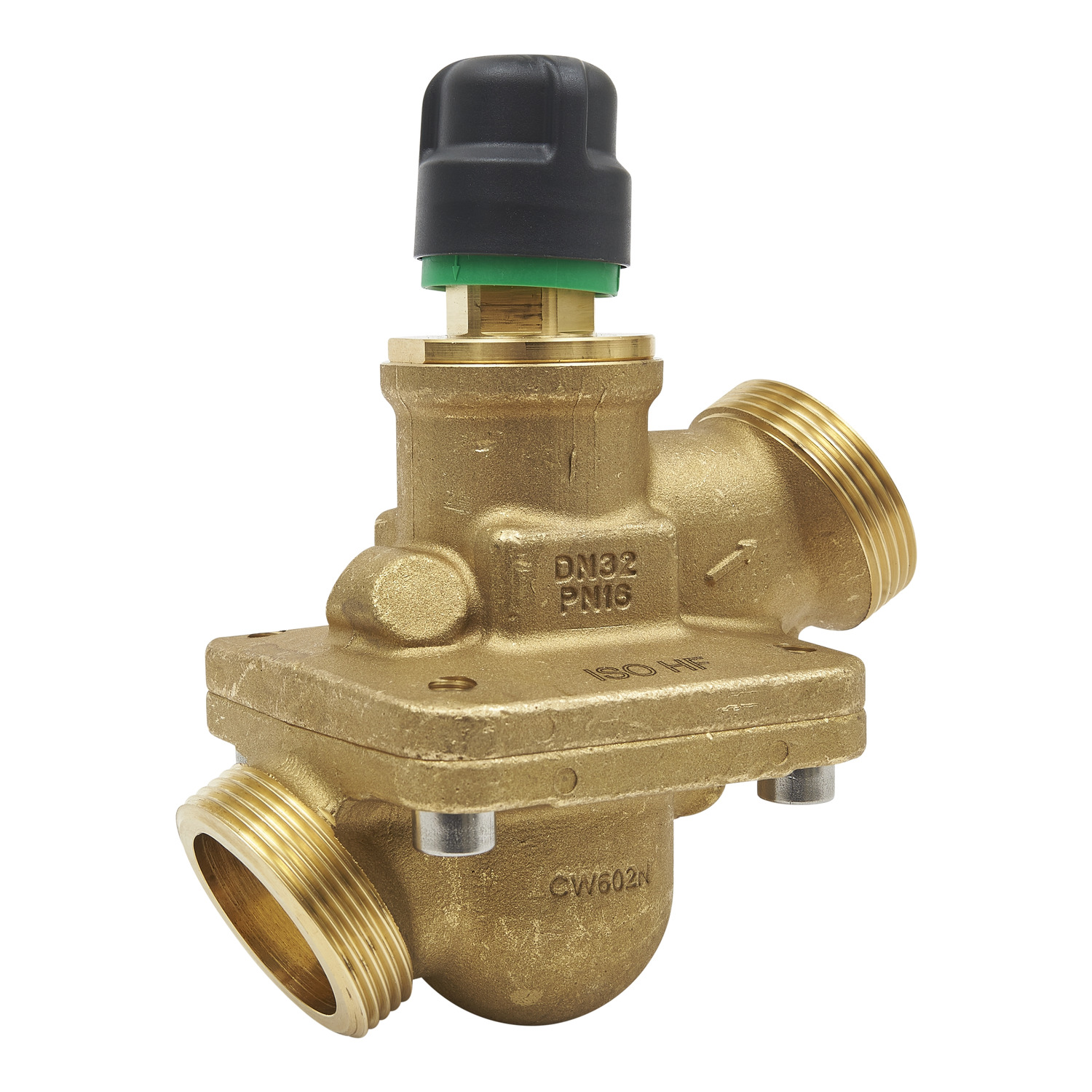

The VP229E is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. High Flow.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | terminal unit, radiation panel, fan coil unit, air handling unit |
| Operating fluid temperature | -10-120 °C |
| Body material | CW602N brass |
| Seat leakage | Port A: Class IV (0.01 %) |
| Product or component type | valve |
| Close-off pressure | 1600 kPa, 232 psi |
| Targeted region | Australia., North America., Asia Pacific., Europe |
| Valve connection size | G 1-1/2A |
| Seat material | Port A: brass |
| Valve product range | SpaceLogic |
| Pressure allowable static | 16 bar, 200 psi up to 150 °F |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Control valve rangeability | 1000:1 |
| Accuracy setting knob | 5 % |
| Flow rate minimum (m³/h) | 0.8 m³/h |
| Valve product series | VP229E |
| Material diaphragm | EPDM (ethylene propylene diene monomer) |
| Pressure differential maximum (psi) | 87 psi |
| Pressure differential minimum (psi) | 5.08 psi |
| Valve configuration | 2-Way |
| Stem movement | linear |
| Flow rate nominal (lps) | 1.10 l/s |
| Flow rate minimum (lph) | 800 l/h |
| Pressure fluid max delta P normal life | 58 psi |
| Flow rate nominal (lph) | 4000 l/h |
| Flow rate minimum (lps) | 0.22 l/s |
| Flow rate maximum (m³/h) | 4.4 m³/h |
| Flow rate maximum (gpm) | 19.25 gal(US)/min |
| Valve type | pressure independent |
| Valve connection type | G External |
| Flow rate minimum (gpm) | 2.4 gal(US)/min |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Flow characteristic | linear |
| Stem material | stainless steel |
| Flow rate nominal (gpm) | 17.5 gal(US)/min |
| Pipe size | 32 mm |
| Pressure differential minimum (kPa) | 35 kPa |
| Flow rate maximum (lph) | 4360 l/h |
| Flow rate nominal (m³/h) | 4 m³/h |
| Flow rate maximum (lps) | 1.22 l/s |
| Pressure class | ANSI class 125, PN16 |
| Pressure differential maximum (kPa) | 600 kPa |
| Body size | 32 mm (1-1/4 in) |
Only registered users can write reviews
Related products
2xDN32 External Threaded End Connections with Fibre Gaskets, G 1.1/2 to valve, R1.1/4 (External taper) to pipe.
9112112032
2xDN32 External Threaded End Connections with Fibre Gaskets, G 1.1/2 to valve, R1.1/4 (External taper) to pipe.
$55.88 inc GST
$73.90 inc GST
MP140NO Thermal actuator, 2 position, 110V to 230VAC, 140N, IP44
MP140NO-230T
MP140NO Thermal actuator, 2 position, 110V to 230VAC, 140N, IP44
$98.01 inc GST
$129.62 inc GST

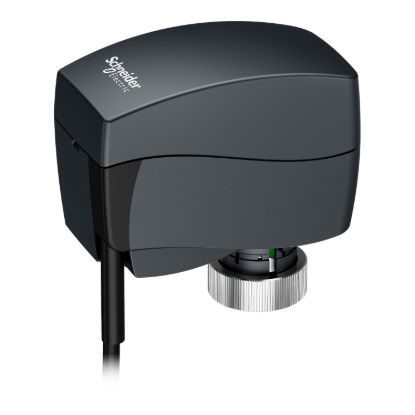

SpaceLogic MP130 PIBCV Actuator, Floating, Non-Spring Return, 230Vac, 130N, IP42
