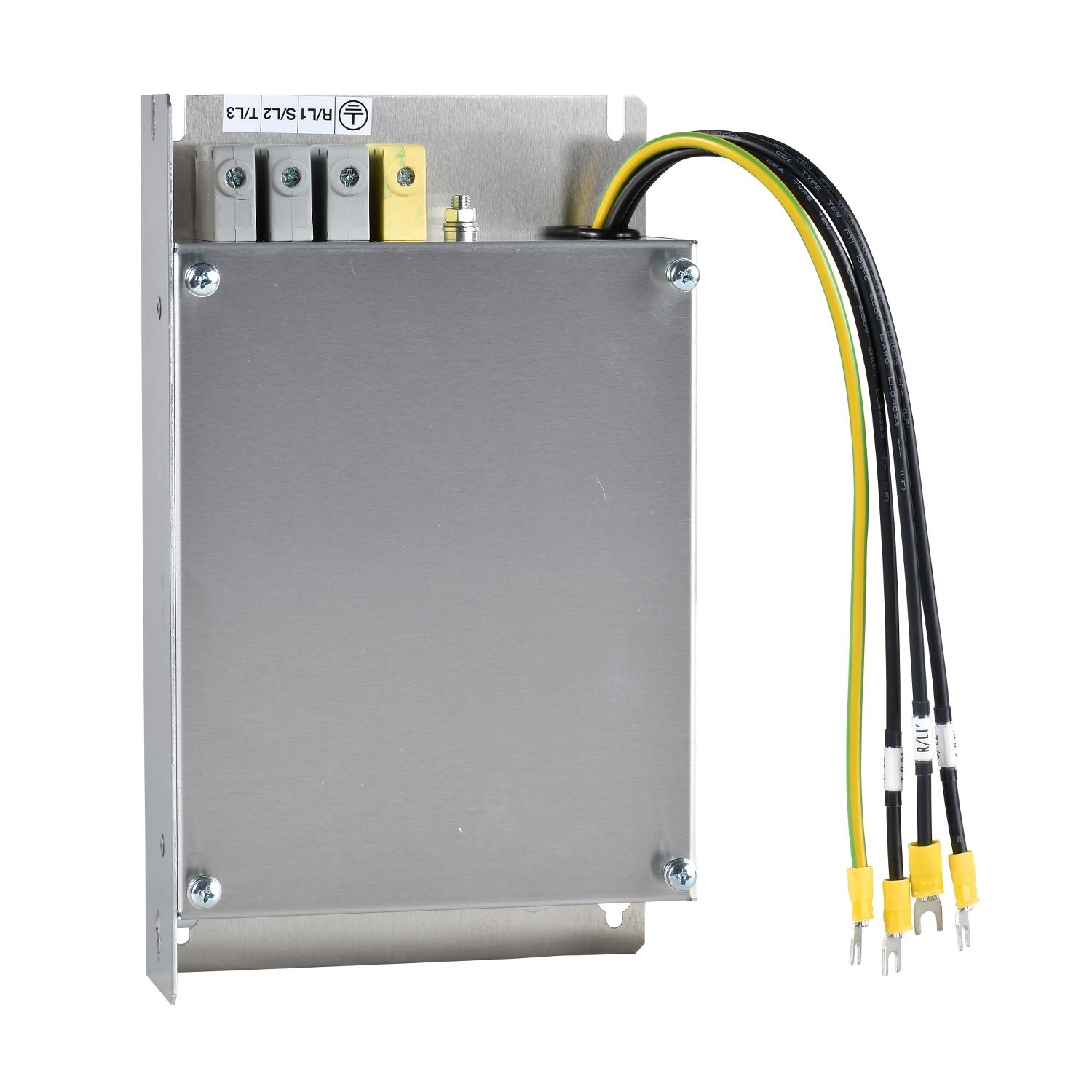

This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 47A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 3.15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 6.8 W for ATV21HU75M3X, 3.9 W for ATV21HD11N4, 3.7 W for ATV21HU55M3X, 19.3 W for ATV31CU55N4, 1.9 W for ATV21HU75N4 |
| Range compatibility | Altivar 312 Solar, Altivar 31C, Altivar 312, Altivar 212, Altivar Machine ATV320, Lexium 23 Plus, Lexium 05 |
| [In] rated current | 47 A |
| Product specific application | radio interference input filter |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320...C motor: 7.5 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 5.5 kW, 200...240 V three phase, ATV312HU75N4, ATV312HU55N4, ATV312HU75M3, ATV312HU55M3, LXM05CD57N4, LXM05BD57N4, LXM05AD57N4, ATV31CU75N4, ATV31CU55N4, ATV212HU75N4, ATV212HU75M3X, ATV212HU55M3X, ATV212HD11N4, servo drive LXM23 motor: 7.5 kW |
| Range of product | Altivar |
| Complementary | |
| Electrical connection | terminal 25 mm² AWG 2 |
| Compatibility code | LXM23 |
| Tightening torque | 4.5 N.m |
| Network rated voltage | 380-500 V, 200-240 V |
| Earth leakage current | 42.8 mA at 480 V 60 Hz, 20.6 mA at 480 V 60 Hz, 45 mA 50 Hz |
| Net weight | 3.15 kg |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating |
| IP degree of protection | IP41 (upper part), IP20 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-50 °C |
| Standards | IEC 61800-3 |
