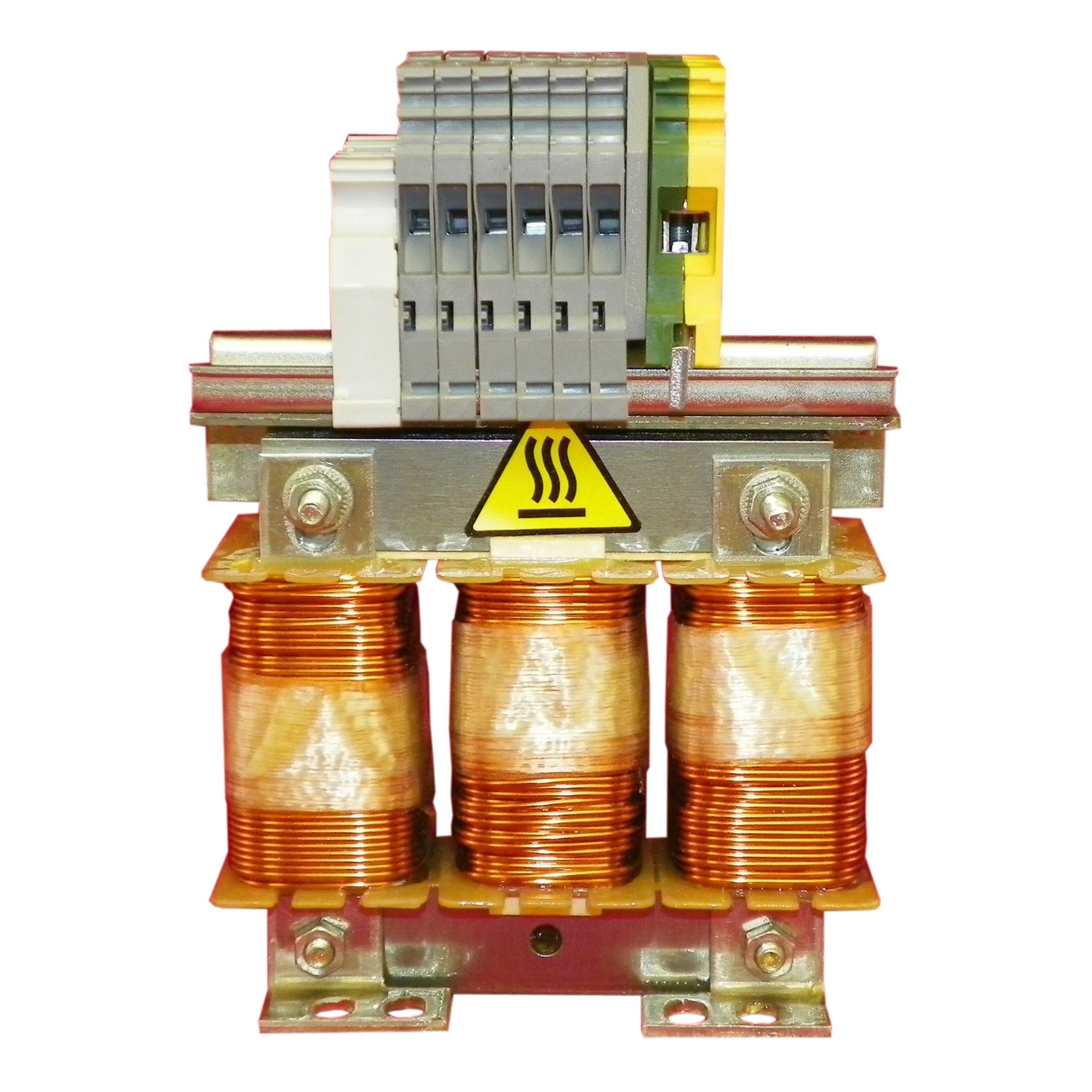

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 107A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.3mH. It weighs 16kg and its dimensions are, 270mm wide, 210mm high, 180mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | reduction of overvoltages at motor terminals, reduction of current harmonics |
| Range compatibility | Easy Altivar 310, Altivar Process ATV900, Altivar Process ATV600, Altivar 61, Altivar 71, Altivar Machine ATV320, Altivar Machine ATV340 |
| [In] rated current | 107 A |
| Electrical connection | bare wires diameter: 6.5 mm |
| Product compatibility | variable speed drive ATV930 motor: 600 V - three phase - line choke - 75 hp - 1 per drive, variable speed drive ATV930 motor: 600 V - three phase - line choke - 100 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 100 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 75 hp - 1 per drive, variable speed drive ATV930 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - motor choke - 1 per drive, ATV71WD55N4 - line choke - 1 per drive, ATV71WD45N4 - line choke - 1 per drive, ATV71WD37N4 - line choke - 1 per drive, ATV71WD30N4 - line choke - 1 per drive, ATV71HD90Y - line choke - 1 per drive, ATV71HD55Y - line choke - 1 per drive, ATV71HD55N4 - line choke - 1 per drive, ATV71HD45N4 - line choke - 1 per drive, ATV71HD37N4 - line choke - 1 per drive, ATV71HD30N4 - line choke - 1 per drive, ATV71HD15M3X - line choke - 1 per drive, ATV61WD55N4C - line choke - 1 per drive, ATV61WD55N4 - line choke - 1 per drive, ATV61WD45N4C - line choke - 1 per drive, ATV61WD45N4 - line choke - 1 per drive, ATV61WD37N4C - line choke - 1 per drive, ATV61WD37N4 - line choke - 1 per drive, ATV61WD30N4C - line choke - 1 per drive, ATV61WD30N4 - line choke - 1 per drive, ATV61HD90Y - line choke - 1 per drive, ATV61HD75Y - line choke - 1 per drive, ATV61HD55Y - line choke - 1 per drive, ATV61HD55N4 - line choke - 1 per drive, ATV61HD45N4 - line choke - 1 per drive, ATV61HD37N4 - line choke - 1 per drive, ATV61HD30N4 - line choke - 1 per drive, ATV61HD15M3X - line choke - 1 per drive, variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive, ATV71HD75Y - line choke - 1 per drive |
| Value of inductance | 0.3 mH |
| Network number of phases | three phase |
| Product or component type | line/motor choke |
| Range of product | Altivar |
| Thermal losses | 260 W |
| Complementary | |
| Supply frequency | 50...60 Hz |
| Maximum voltage drop at rated load | 5 % |
| Depth | 180 mm |
| Width | 270 mm |
| Max current | 1.65 x nominal current (duration = 60 s) |
| Minimum clearance distance | 5.5 mm IEC 60664 |
| Electrical insulation class | class F |
| Leakage distance | 11.5 mm conforming to IEC 60664 |
| Net weight | 16 kg |
| Height | 210 mm |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| IP degree of protection | terminals: IP00, choke: IP00 |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 conforming to EN 50178 |
| Relative humidity | 0-95 % |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6 |
| Environmental characteristic | 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C) |
| Standards | VDE 0160 level 1, IEC 60076 (with HD398), EN 50178 |
