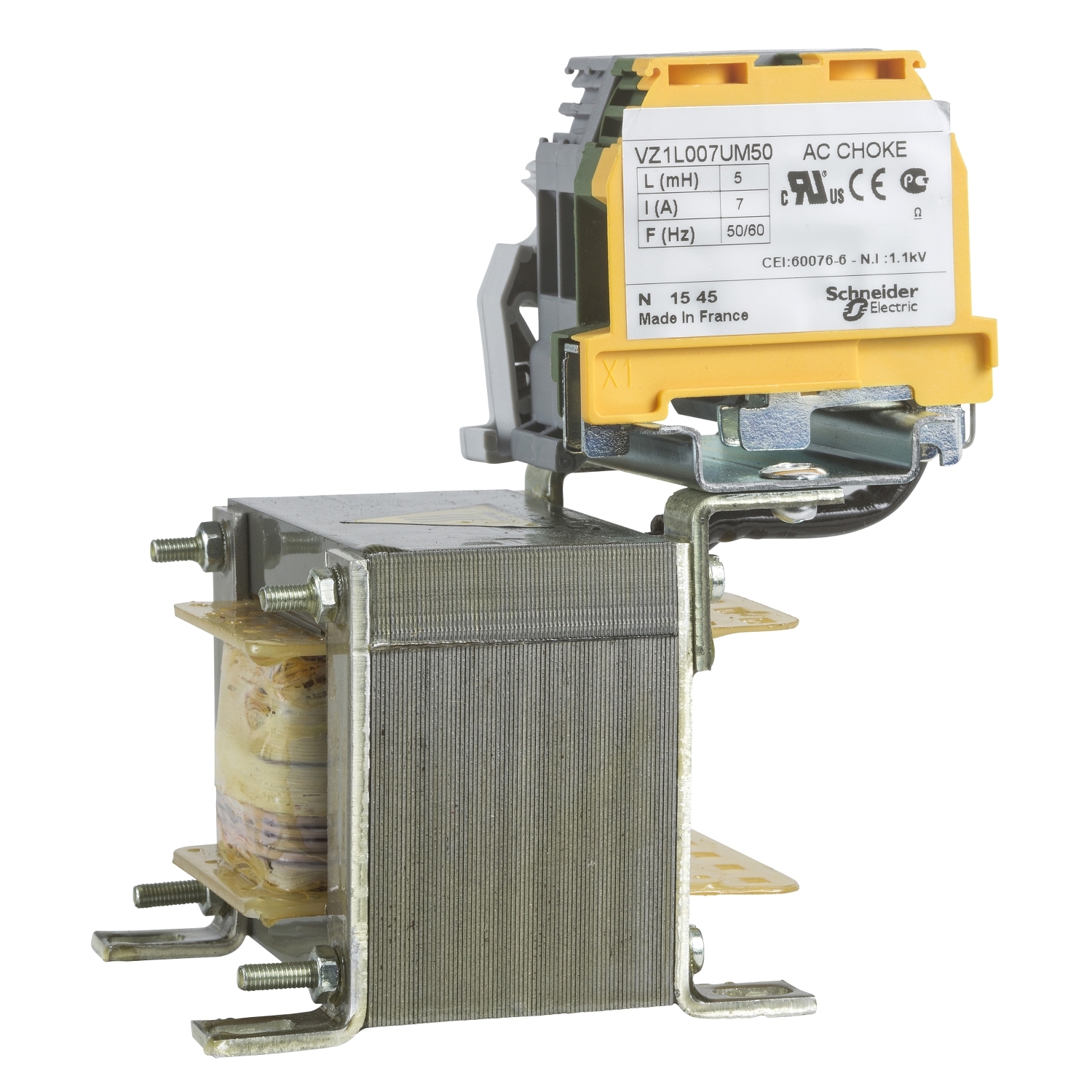

This line choke can be used to provide improved protection against overvoltages on the line supply. It can also be used to reduce harmonic distortion of the current produced by the drive. This product is compliant with IEC 61800-5-1 (VDE 0160 level 1 high-energy overvoltages on the line supply). Its rated current is equal to 18A and its value of inductance to 2mH. It is compatible with Altivar 31, Altivar 32, Altivar 312, Altivar machine ATV320, Lexium 05 and Lexium 32.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | reduction of current harmonics |
| Range compatibility | Altivar 32, Altivar Machine ATV320, Lexium 05, Altivar 31C, Altivar 312, Lexium 32, Altivar 312 Solar |
| [In] rated current | 18 A |
| Product compatibility | variable speed drive ATV320 motor: 2.2 kW 200...240 V - single phase - line choke - 1 per drive, variable speed drive ATV320 motor: 1.5 kW 200...240 V - single phase - line choke - 1 per drive, variable speed drive ATV320 motor: 1.1 kW 200...240 V - single phase - line choke - 1 per drive, LXM32.U90M2 - line choke - 1 per drive, LXM32.D30M2 - line choke - 1 per drive, LXM32.D18M2 - line choke - 1 per drive, LXM05D28M2 - line choke - 1 per drive, LXM05D28F1 - line choke - 1 per drive, LXM05D17M2 - line choke - 1 per drive, LXM05D17F1 - line choke - 1 per drive, ATV32HU22M2 - line choke - 1 per drive, ATV32HU15M2 - line choke - 1 per drive, ATV32HU11M2 - line choke - 1 per drive, ATV31CU22M2 - line choke - 1 per drive, ATV31CU15M2 - line choke - 1 per drive, ATV31CU11M2 - line choke - 1 per drive, ATV312HU22M2 - line choke - 1 per drive, ATV312HU15M2 - line choke - 1 per drive, ATV312HU11M2 - line choke - 1 per drive |
| Value of inductance | 2 mH |
| Network number of phases | single phase |
| Product or component type | line choke |
| Range of product | Altivar |
| Thermal losses | 30 W |
| Complementary | |
| Supply frequency | 50...60 Hz |
| Maximum voltage drop at rated load | 5 % |
| Depth | 105 mm |
| Width | 85 mm |
| Net weight | 1.99 kg |
| Height | 120 mm |
| Environment | |
| IP degree of protection | terminals: IP20, choke: IP00 |
| Standards | EN 50178, IEC 60076 (with HD398), VDE 0160 level 1 |
