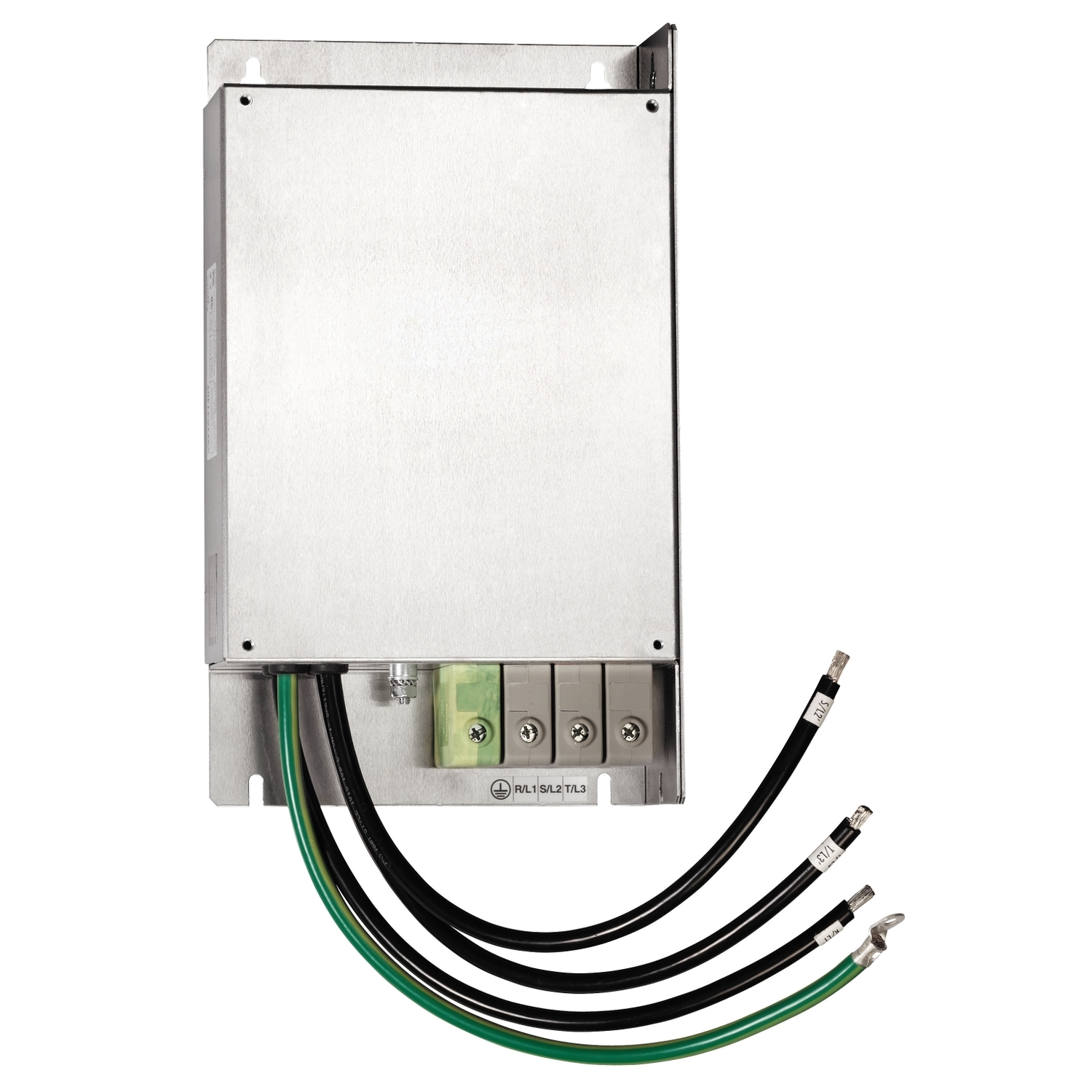

This EMC input filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 47A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. It is designed for 380V…500V three-phase supply voltage. It weighs 3.15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Lexium 32, Altivar 32, Lexium 28, Altivar Machine ATV320 |
| Product specific application | radio interference input filter |
| Mounting location | below variable speed drive |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320...W/ATV320...WS at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320...W/ATV320...WS at 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 5.5 kW, 380...500 V, three phase, ATV32, 380...500 V, 5...7.5 kW, LXM28A |
| Range of product | Lexium, Altivar |
| Complementary | |
| Thermal losses | 19.3 W |
| [In] rated current | 47 A |
| Emc filter compatibility | type 024 |
| Network rated voltage | 380-500 V |
| Net weight | 3.15 kg |
| Tolerance | - 15...10 % |
| Maximum cable distance between devices | 150 m conforming to IEC 61800-3 category C3, 100 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1 |
