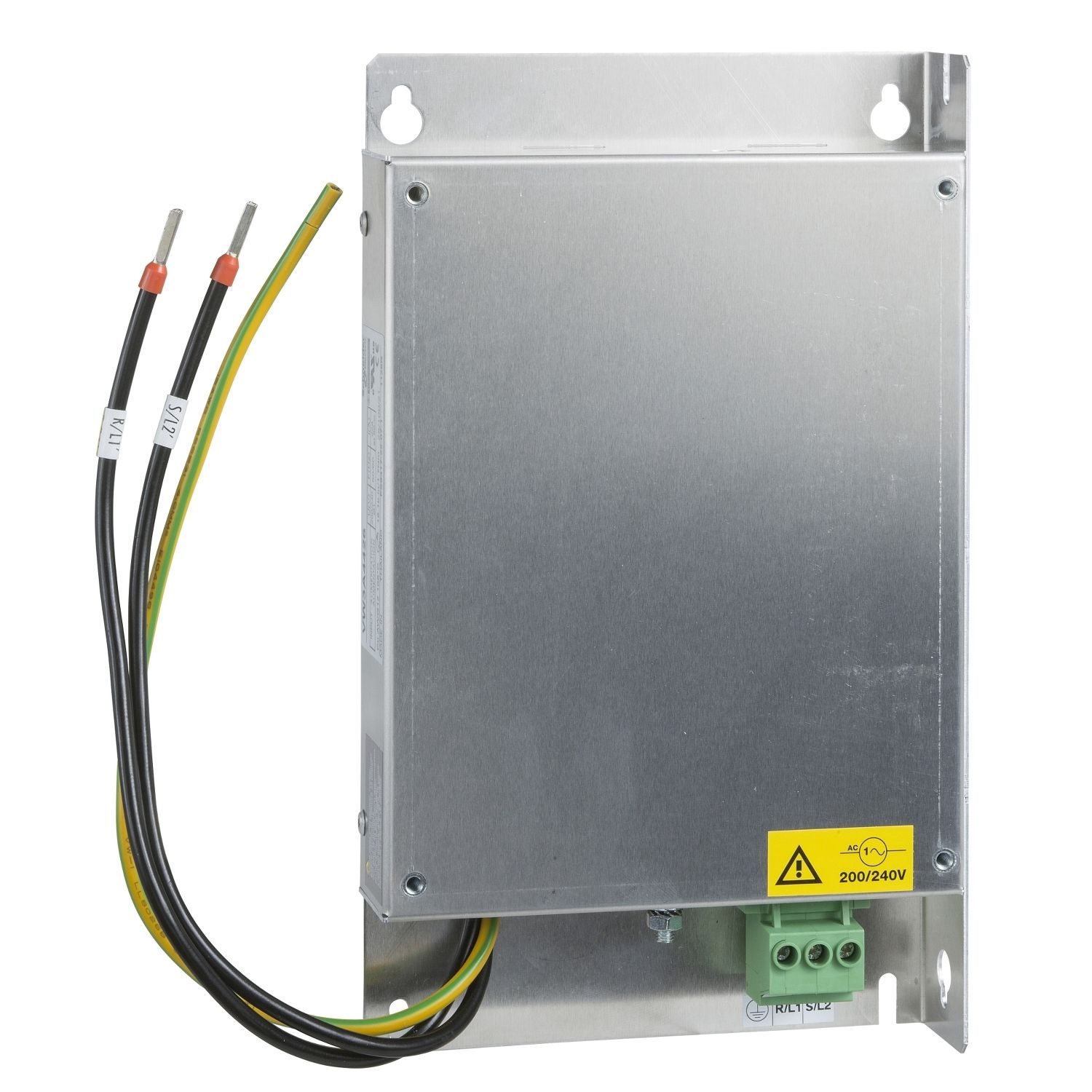

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Machine ATV340, Lexium 28, Lexium 52, Lexium 32 |
| Product specific application | radio interference input filter |
| Mounting location | at variable speed drive side |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV340 at 7.5 kW, 380...480 V, variable speed drive ATV340 at 5.5 kW, 380...480 V, variable speed drive ATV340 at 4 kW, 380...480 V, variable speed drive ATV340 at 3 kW, 380...480 V, variable speed drive ATV340 at 2.2 kW, 380...480 V, LXM32, three-phase, line current 14.6...18.1 A, LXM28A |
| Range of product | Lexium, Altivar |
| Complementary | |
| Thermal losses | 15.8 W |
| [In] rated current | 25 A |
| Emc filter compatibility | type 023 |
| Network rated voltage | 380-500 V |
| Net weight | 1.35 kg |
| Tolerance | - 15...10 % |
| Maximum cable distance between devices | 100 m conforming to IEC 61800-3 category C3, 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1 |
