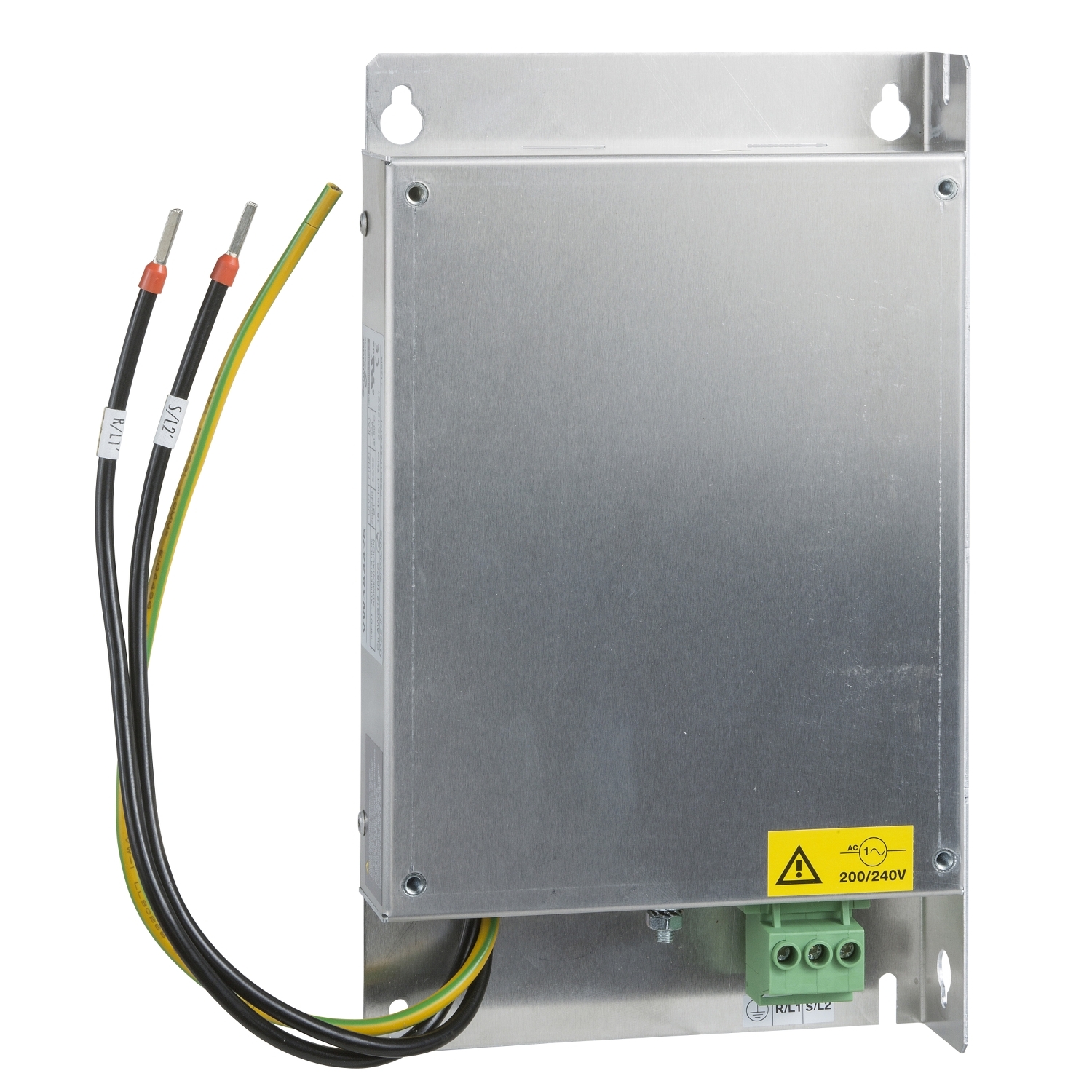

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar 32, Lexium 28, Altivar Machine ATV320, Lexium 32 |
| Product specific application | radio interference input filter |
| Mounting location | at variable speed drive side |
| Network number of phases | single phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320...B at 1.5 kW, 200...240 V, single phase, variable speed drive ATV320...B at 1.1 kW, 200...240 V, single phase, LXM32, single-phase, line current 8.4...12.9 A, ATV32, 200...240 V, 1.1...1.5 kW, LXM28A |
| Range of product | Lexium, Altivar |
| Complementary | |
| Thermal losses | 6.9 W |
| [In] rated current | 17.6 A |
| Emc filter compatibility | type 021 |
| Network rated voltage | 200-240 V |
| Net weight | 0.775 kg |
| Tolerance | - 15...10 % |
| Maximum cable distance between devices | 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1 |
