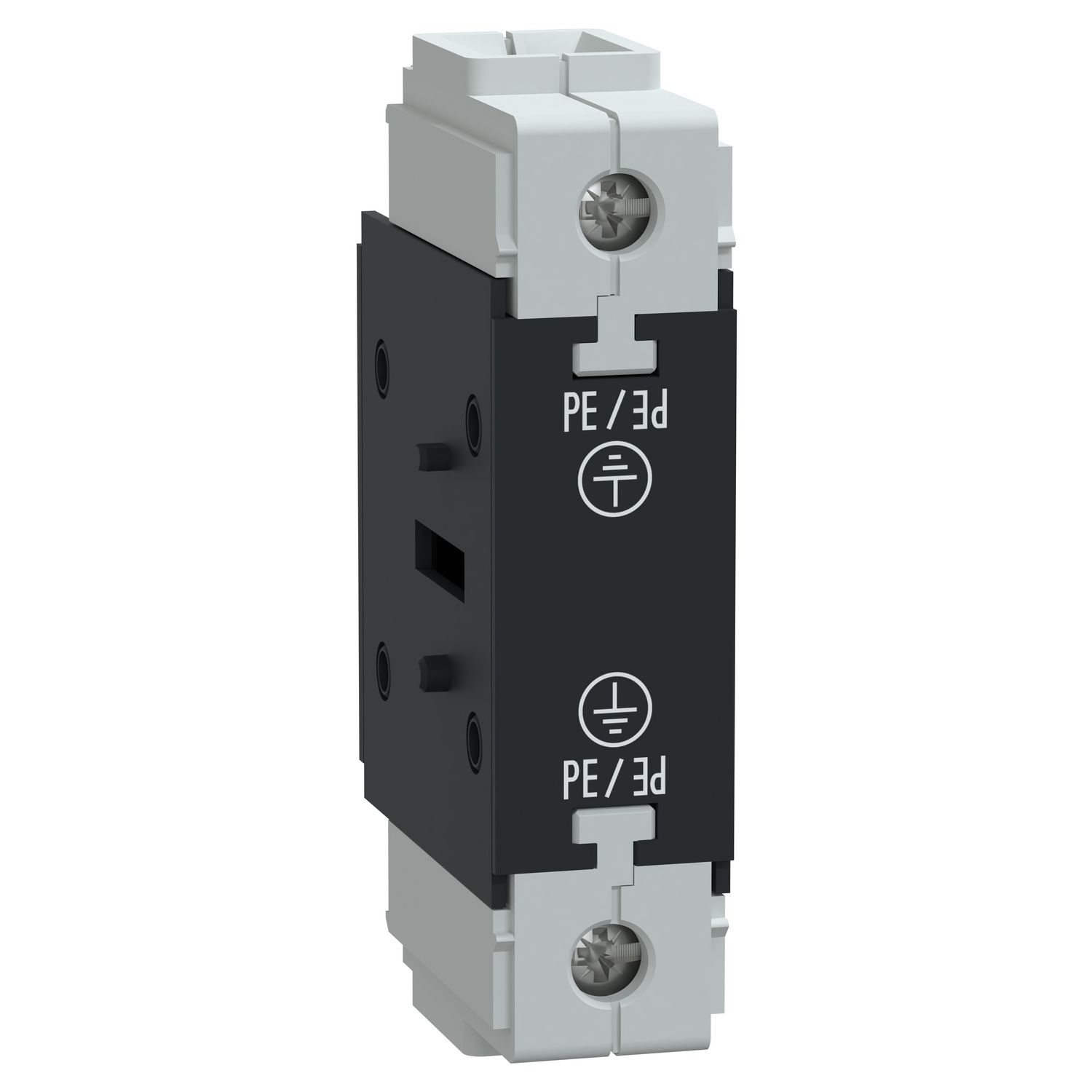

Additional earthing block, TeSys Mini-Vario, 80A, for V3 / V4

Manufacturer: Schneider Electric

SKU: VZ15

GTIN: 3389110551945

Catalog

Instruction sheet

Environmental Disclosure

Old price: $74.25 inc GST

Price: $29.47 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario add-on module, earthing module 63-80A 690V, for TeSys Vario switch-disconnector. To be used with V3 and V4 switch bodies. Multi standards certified (IEC, UL, CSA, CCC, EAC), environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V4, V3
Contacts type and composition	without
Range	TeSys
Performance level	high performance
Product or component type	additional earthing block
Network type	AC, DC
Network frequency	50/60 Hz
Complementary
Depth	46 mm
Width	20 mm
Compatibility code	earthing module
Connections - terminals	screw clamp terminals
Mounting location	right, left
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.1 kg
[Ith] conventional free air thermal current	80 A
Height	83 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-3
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, GL, CSA, UL
