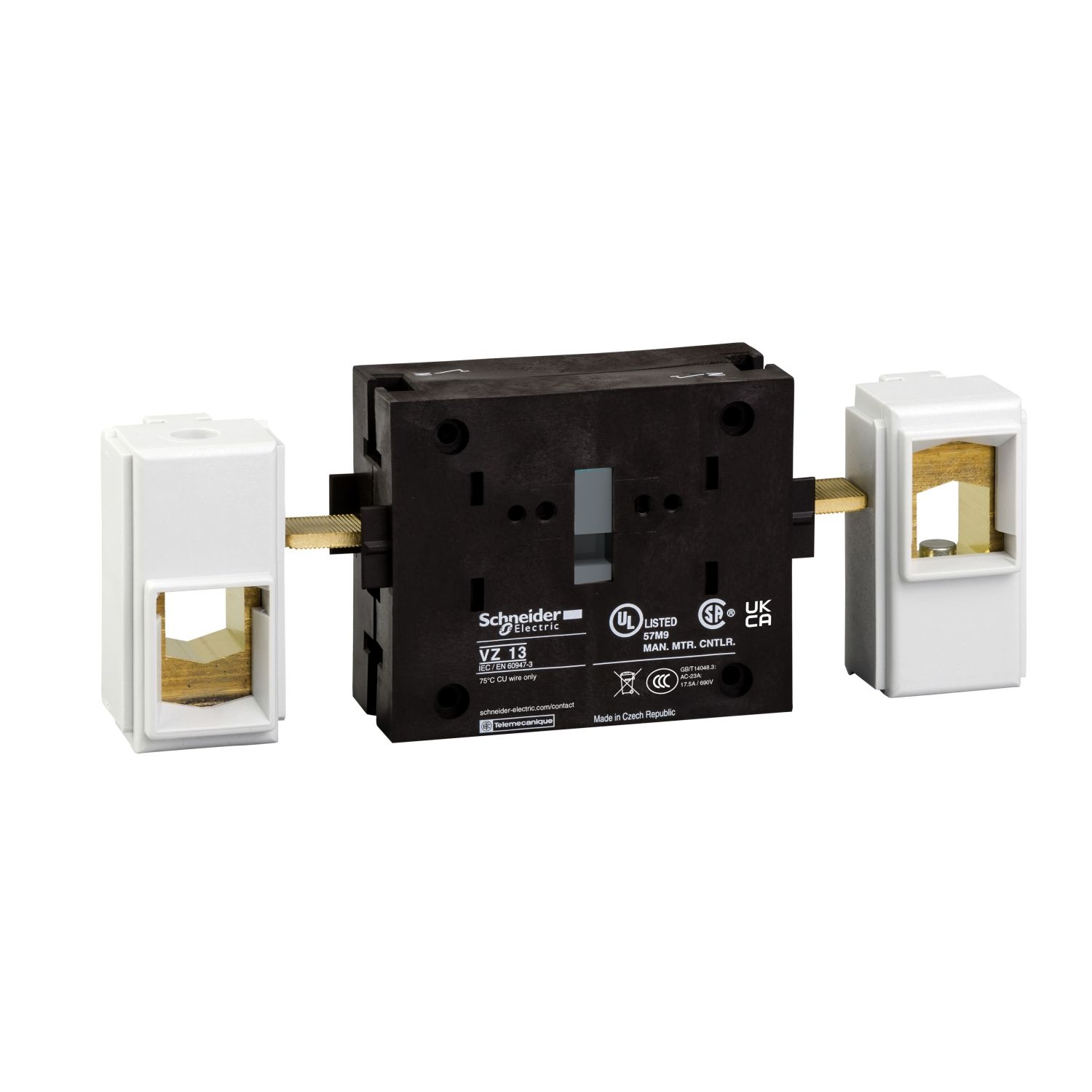

TeSys Vario add-on module, neutral pole 125-175A 690V, for TeSys Vario switch-disconnector. To be used with V5 and V6 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA, CCC, EAC),environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VZ |
| Product compatibility | V6, V5 |
| Poles description | 1N |
| Contact operation | early make, late break |
| Contacts type and composition | 1 NO |
| Range | TeSys |
| Performance level | high performance |
| Product or component type | additional neutral block |
| Range compatibility | TeSys TeSys VARIO switch disconnector |
| Network type | DC, AC |
| Network frequency | 50/60 Hz |
| Complementary | |
| Depth | 63 mm |
| Tightening torque | 22.6-22.6 N.m - on screw clamp terminals |
| Width | 30 mm |
| Compatibility code | neutral pole module |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| Connections - terminals | screw clamp terminals95-95 mm² - solid, screw clamp terminals70-70 mm² - flexible - with cable end |
| Mounting location | right, left |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 0.25 kg |
| [Ith] conventional free air thermal current | 175 A |
| Height | 125 mm |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-3 |
| Ambient air temperature for operation | -20-50 °C |
| Product certifications | UKCA, GL, CSA, UL |
