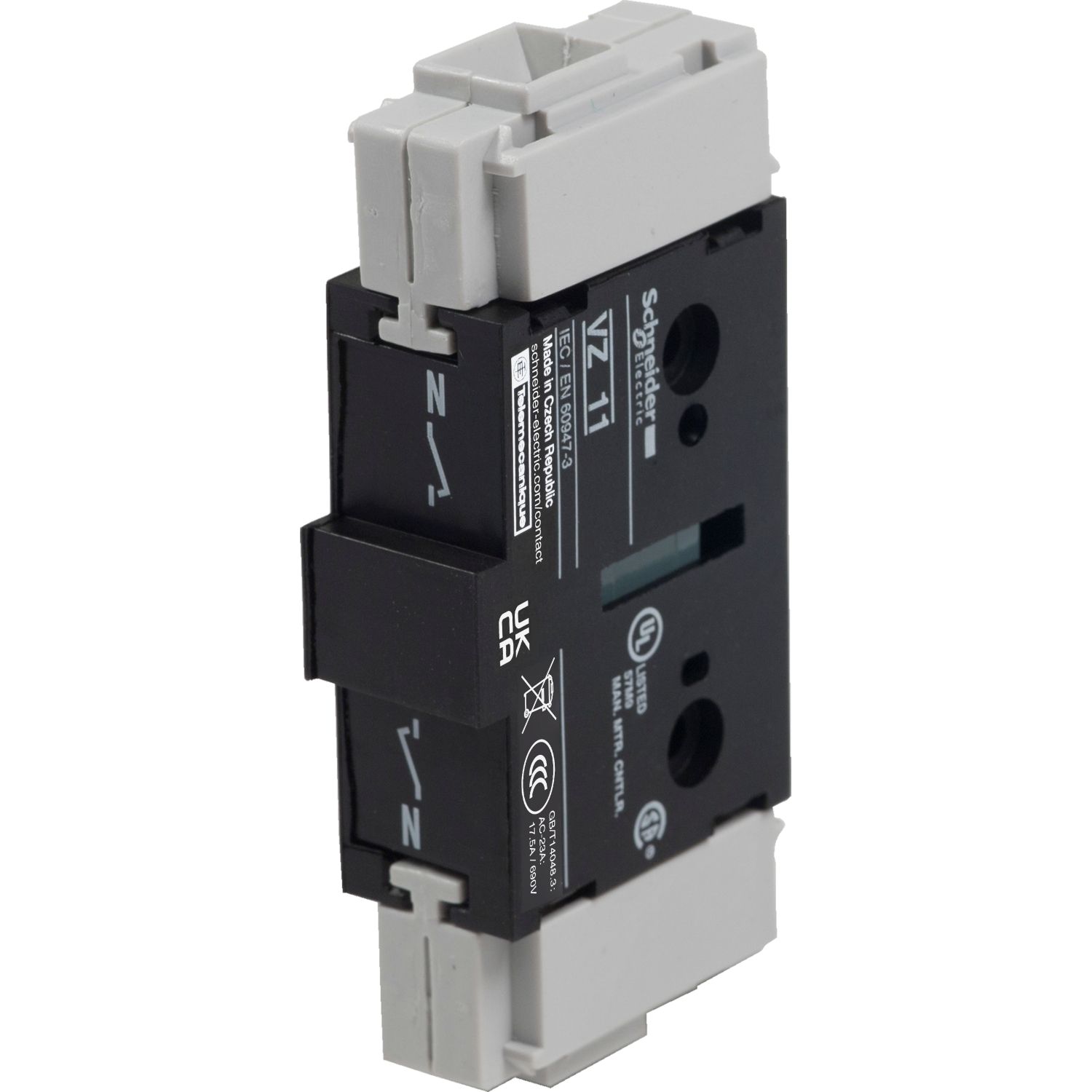

Additional neutral block, TeSys Mini-Vario, 40A, for V02...V2

Manufacturer: Schneider Electric

SKU: VZ11

GTIN: 3389110551907

Catalog

Instruction sheet

Environmental Disclosure

Old price: $103.73 inc GST

Price: $41.17 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario add-on module, neutral pole 12-40A 690V, for TeSys Vario switch-disconnector. To be used with V02 to V2 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA, CCC, EAC),environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V01, V0, V02, V2, V1
Poles description	1N
Contact operation	early make, late break
Contacts type and composition	1 NO
Range	TeSys
Performance level	high performance
Product or component type	additional neutral block
Range compatibility	TeSys TeSys VARIO switch disconnector
Network type	DC, AC
Network frequency	50/60 Hz
Complementary
Depth	35 mm
Tightening torque	2.1-2.1 N.m - on screw clamp terminals
Width	16 mm
Compatibility code	neutral pole module
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-21, 30000 cycles DC-1...5
Connections - terminals	screw clamp terminals10-10 mm² - solid, screw clamp terminals6-6 mm² - flexible - with cable end
Mounting location	right, left
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.05 kg
[Ith] conventional free air thermal current	40 A
Height	74 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-3
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, UL, CSA, GL
