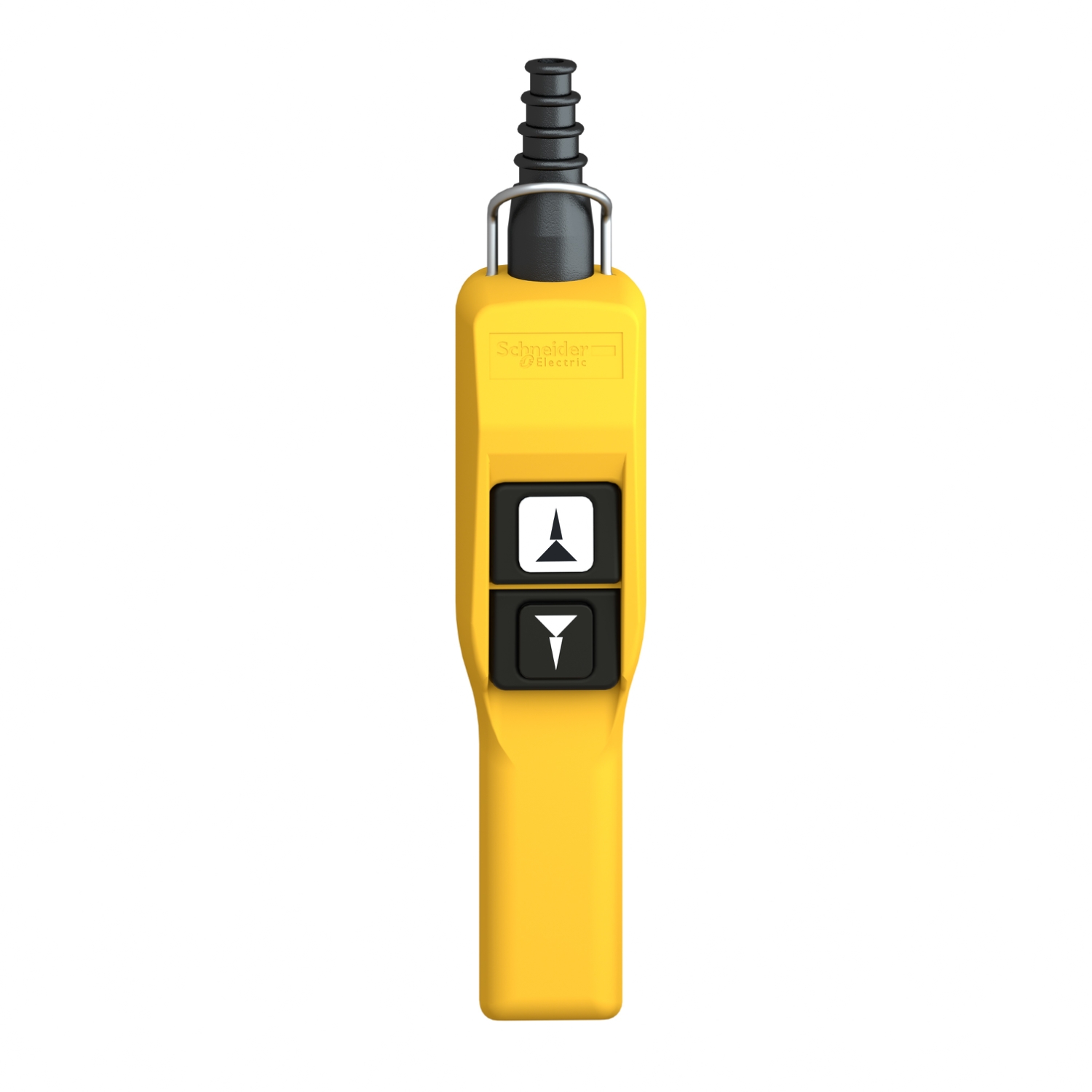

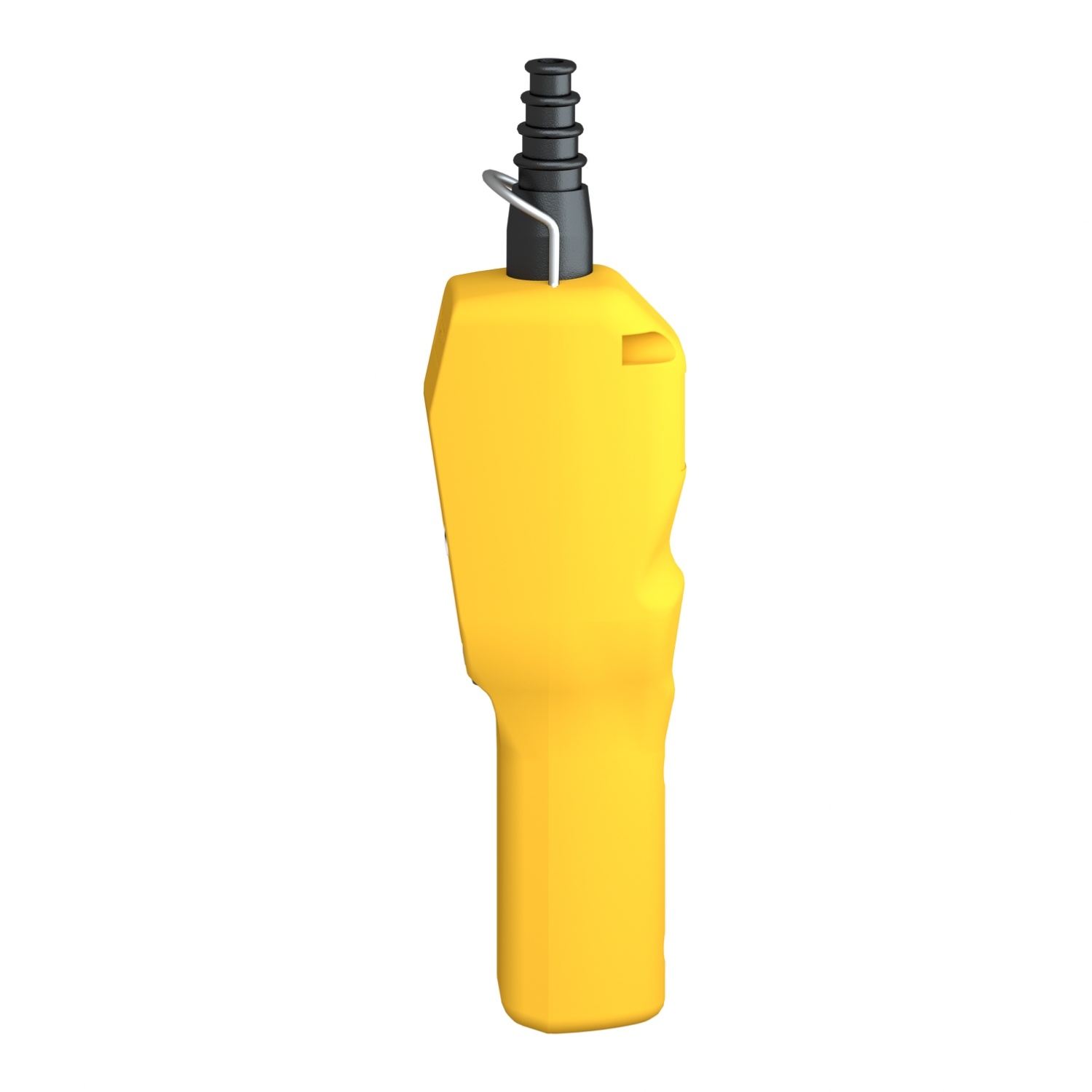

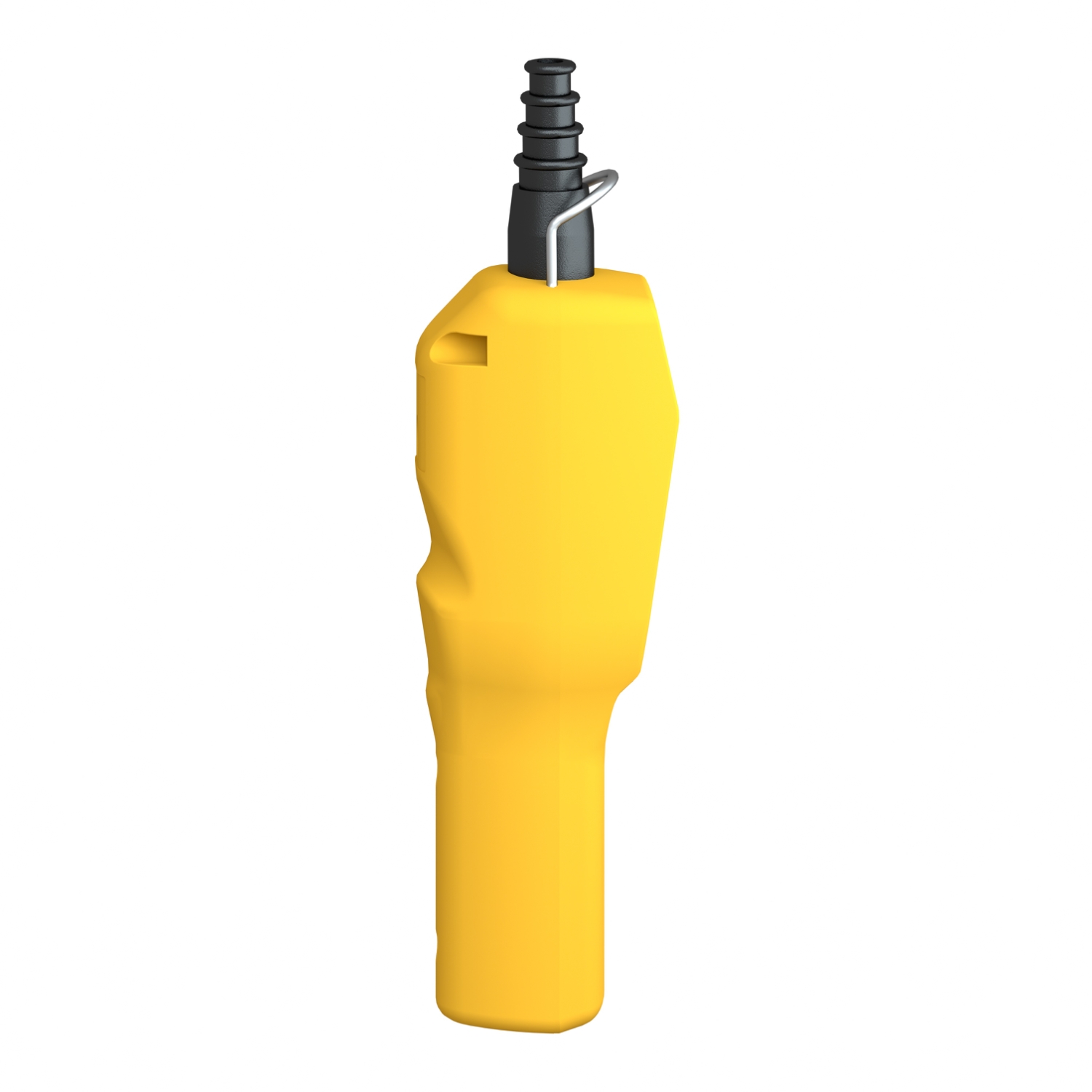

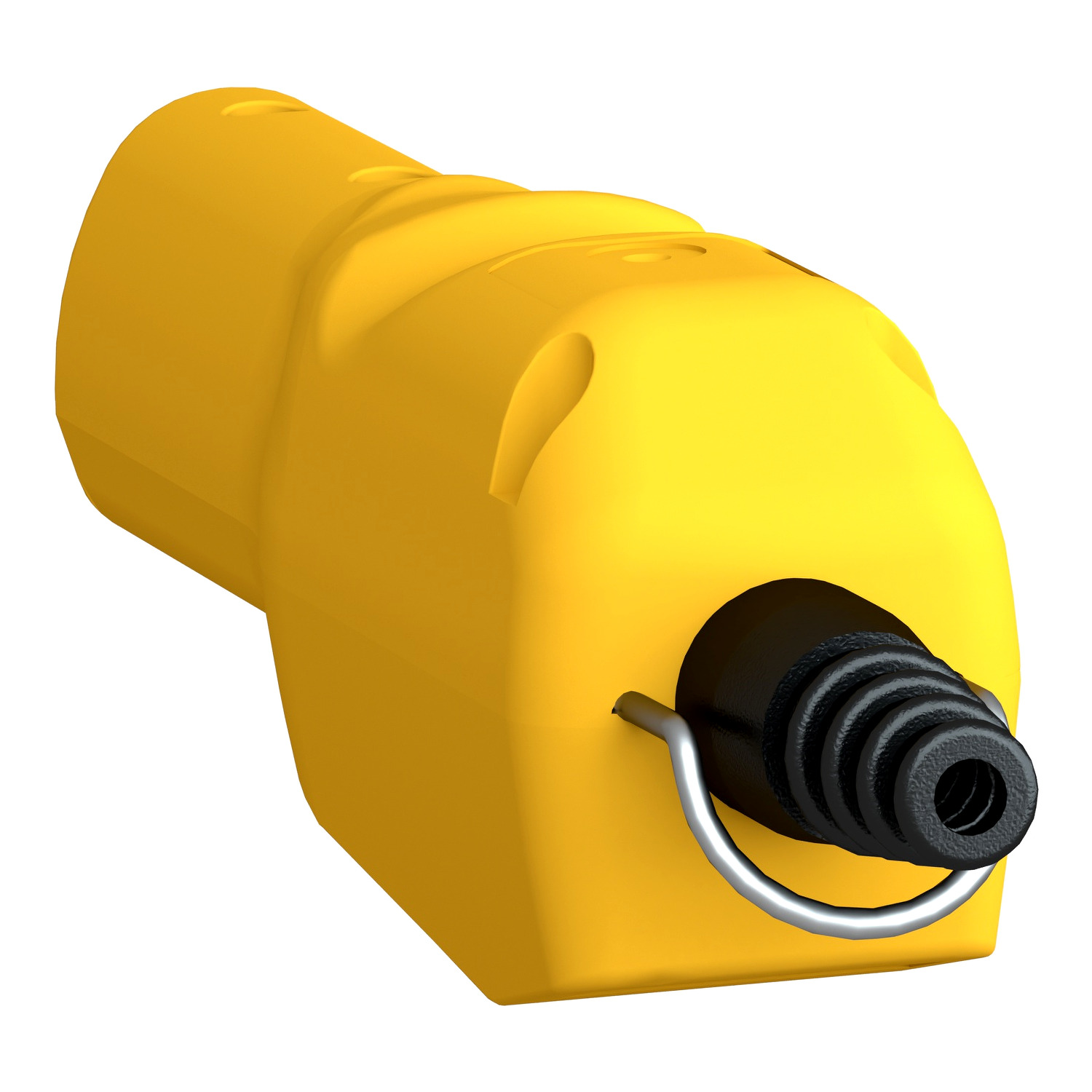

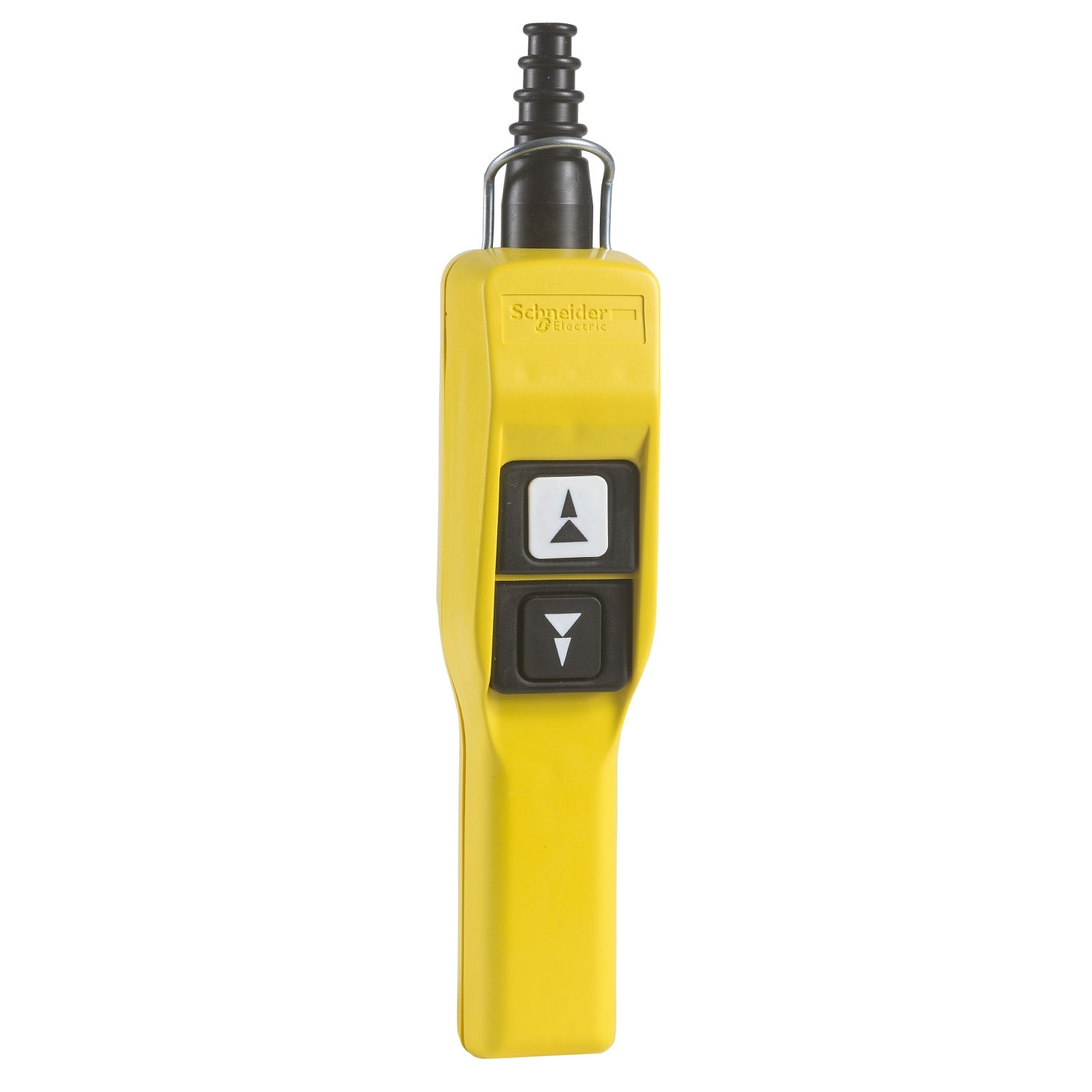

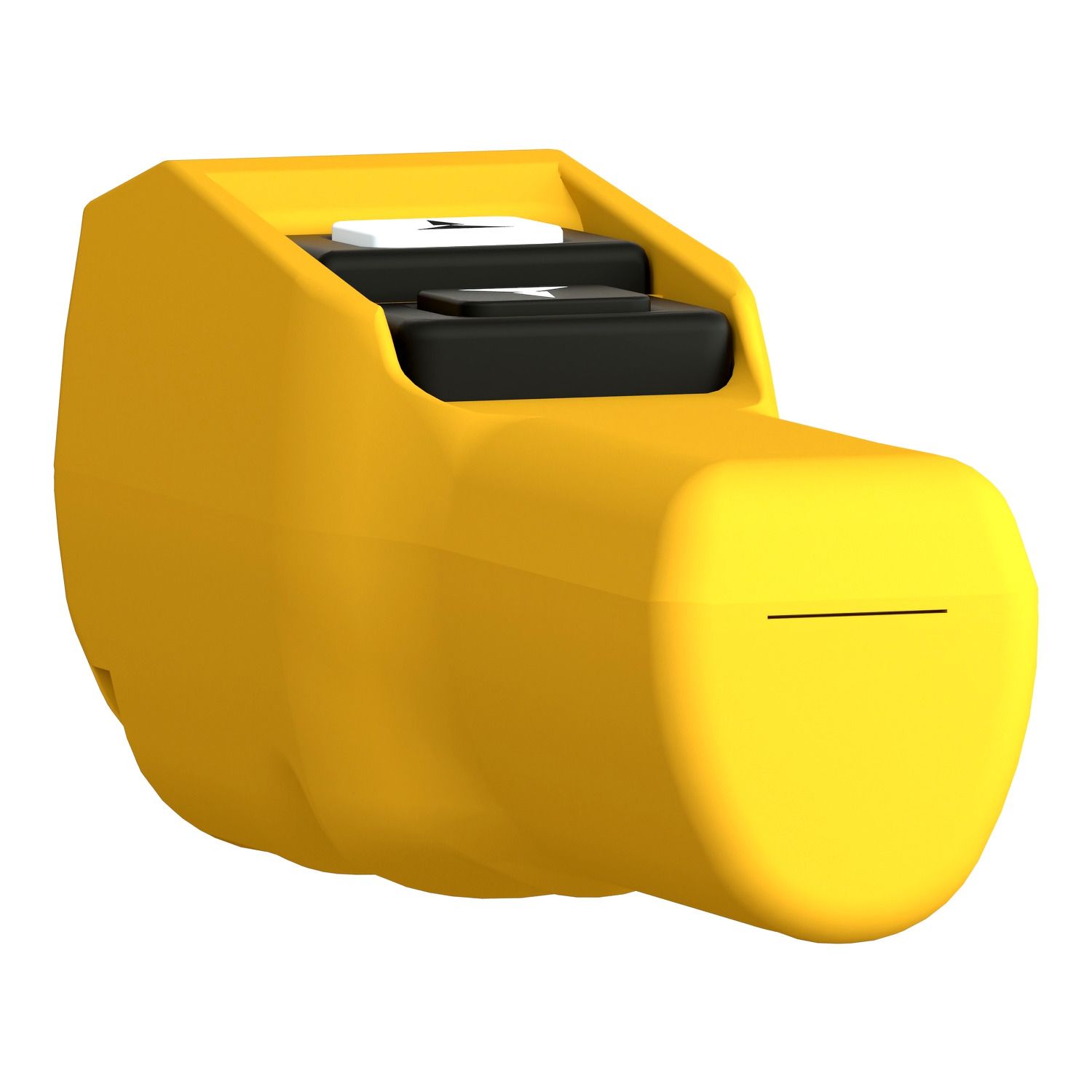

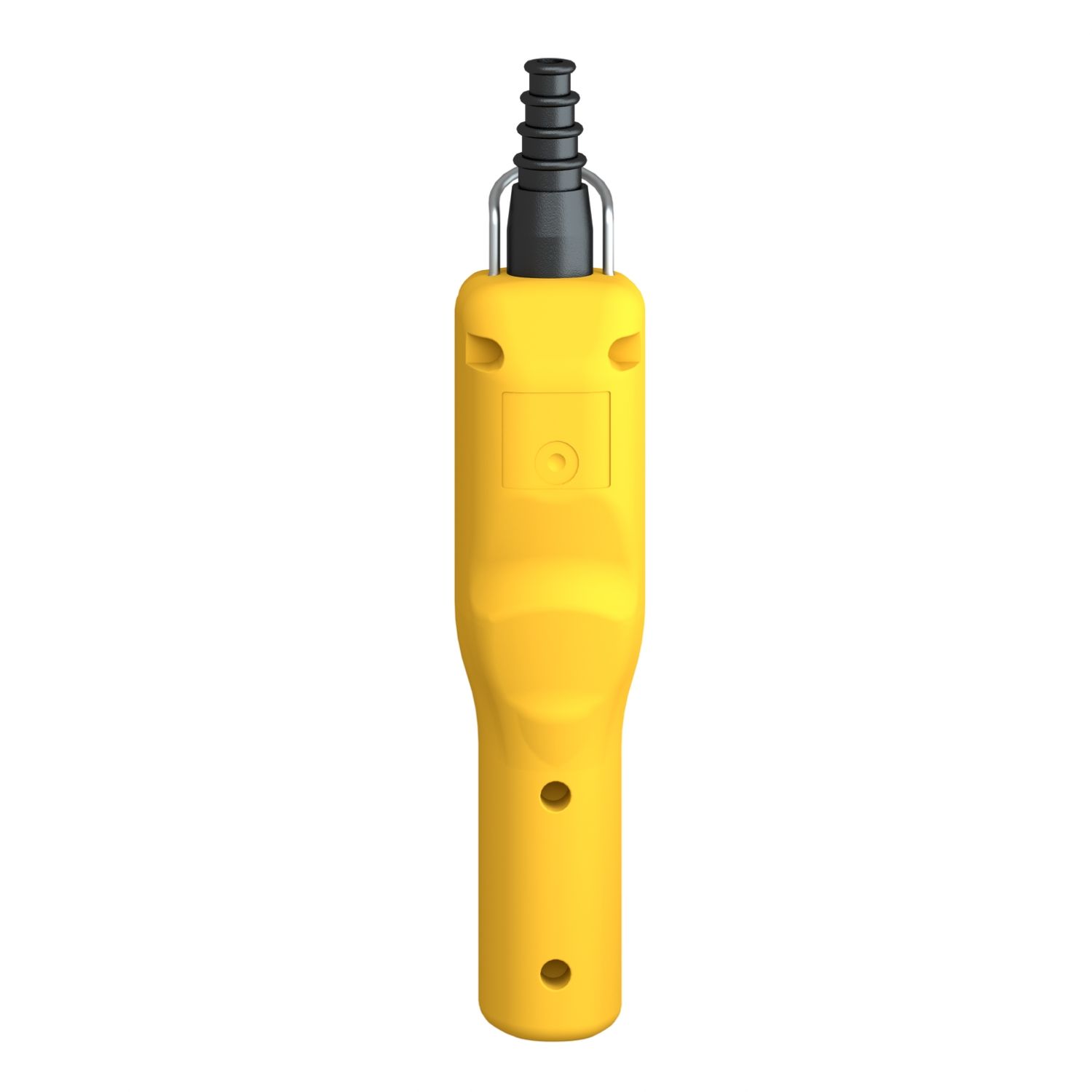

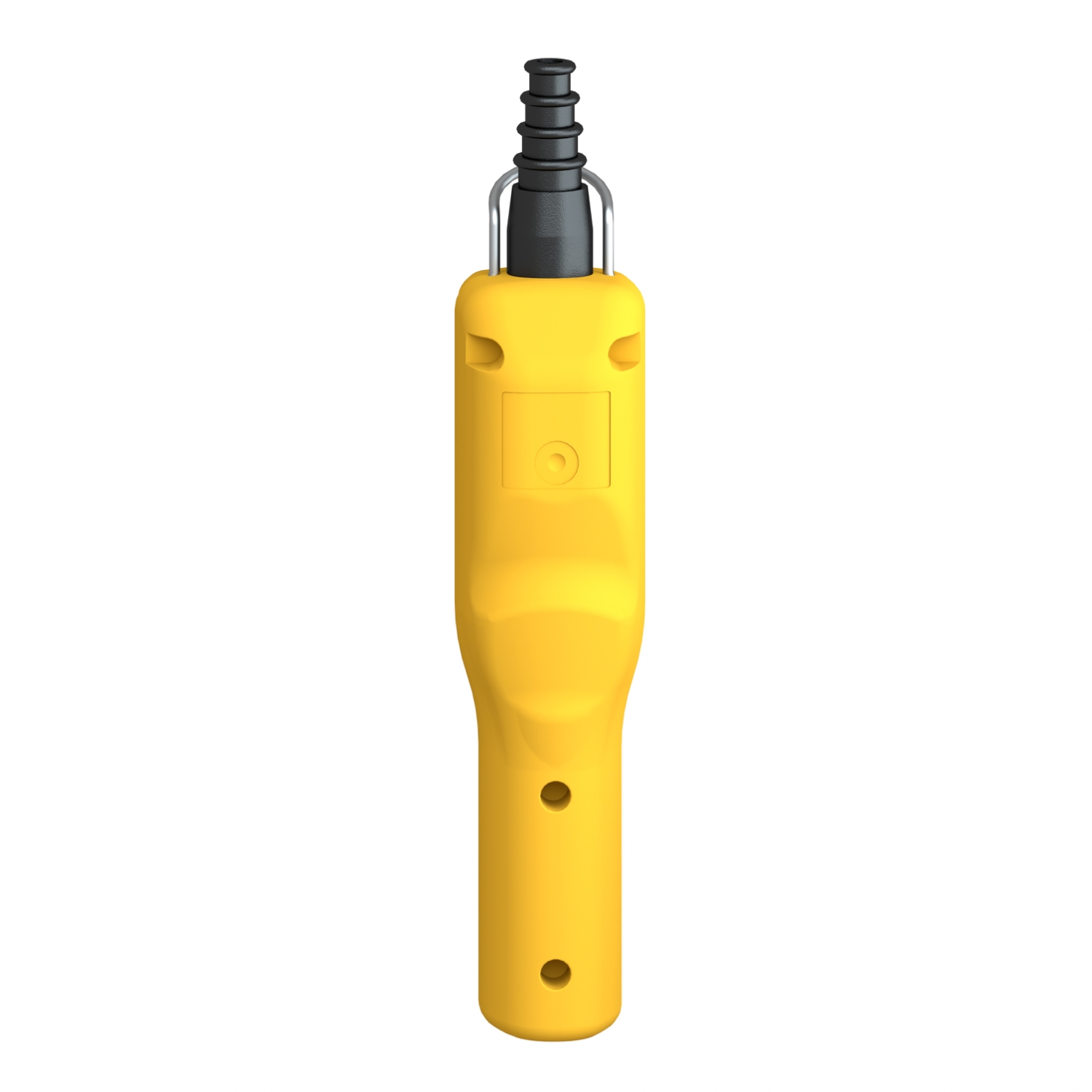

This Harmony XACA217 is a pendant station pistol grip with 2 booted push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACA pistol grip |
| Product or component type | pendant control station |
| Range of product | Harmony XAC |
| Complementary | |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Protective treatment | TH |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Enclosure material | polypropylene |
| [Ithe] conventional enclosed thermal current | 10 A |
| Electrical circuit type | control circuit |
| Control button type | second push-button 2 NO (2 step) lower, slow-fast, first push-button 2 NO (2 step) raise, slow-fast |
| Operating force | 13-15 N |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Mechanical interlocking | with mechanical interlocking |
| Contact operation | staggered, slow-break |
| Overvoltage category | class II conforming to IEC 61140 |
| Control station composition | 2 booted push-buttons |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| Control type | intuitive |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Product compatibility | ZB2BE101 + ZB2BE201 for each direction |
| Net weight | 0.32 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Enclosure type | complete ready for use |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Cable entry | rubber sleeve with stepped entry 7-15 mm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32 |
| Terminals description ISO n°1 | (13-14)NO, (23-24)NO_CL |
| Ambient air temperature for operation | -25-70 °C |
| Terminal identifier | (11-12)NC, (13-14)NO |
| IK degree of protection | IK08 conforming to IEC 62262 |

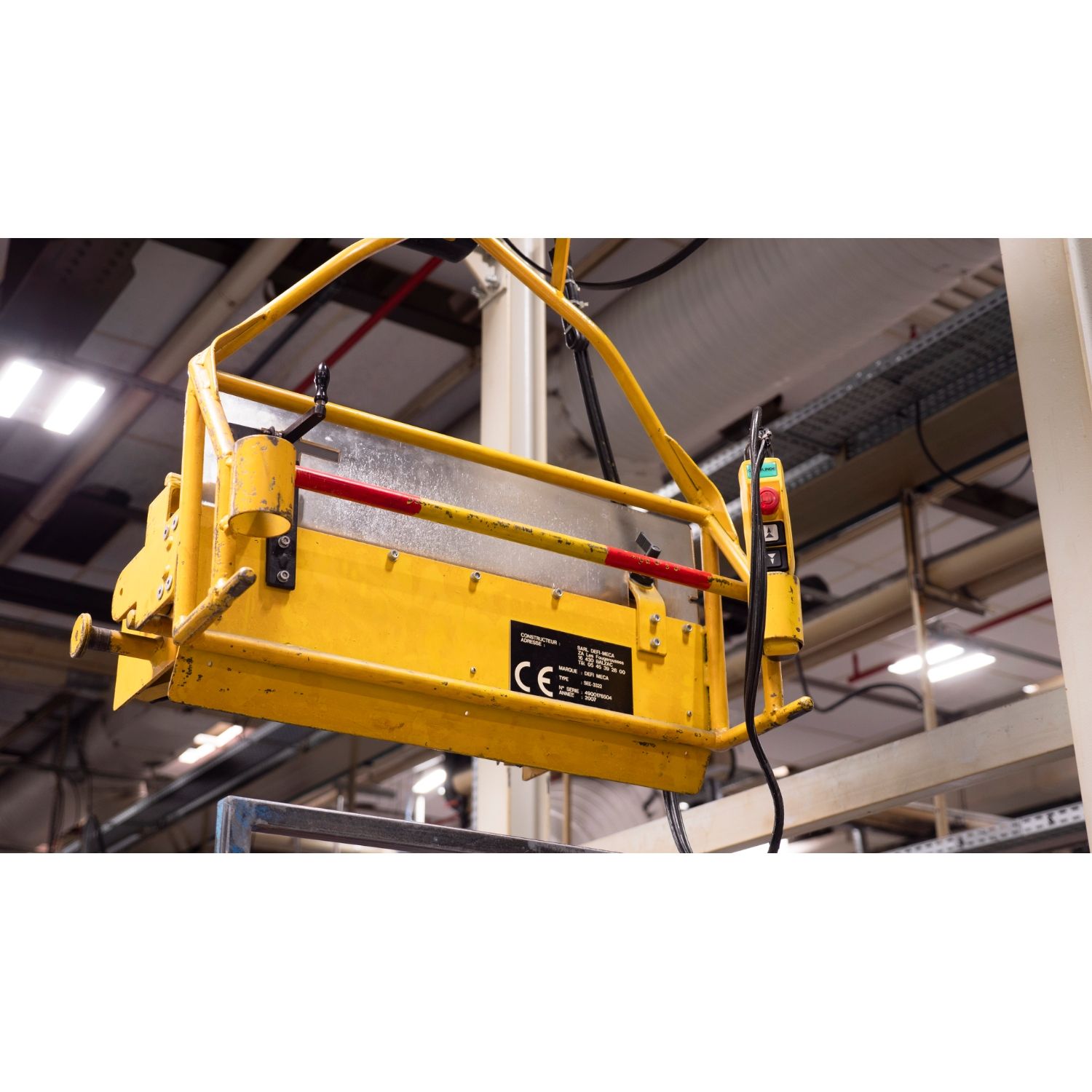

| Control station application | control of 2-speed hoist motor |
| Product certifications | UL, CSA |
