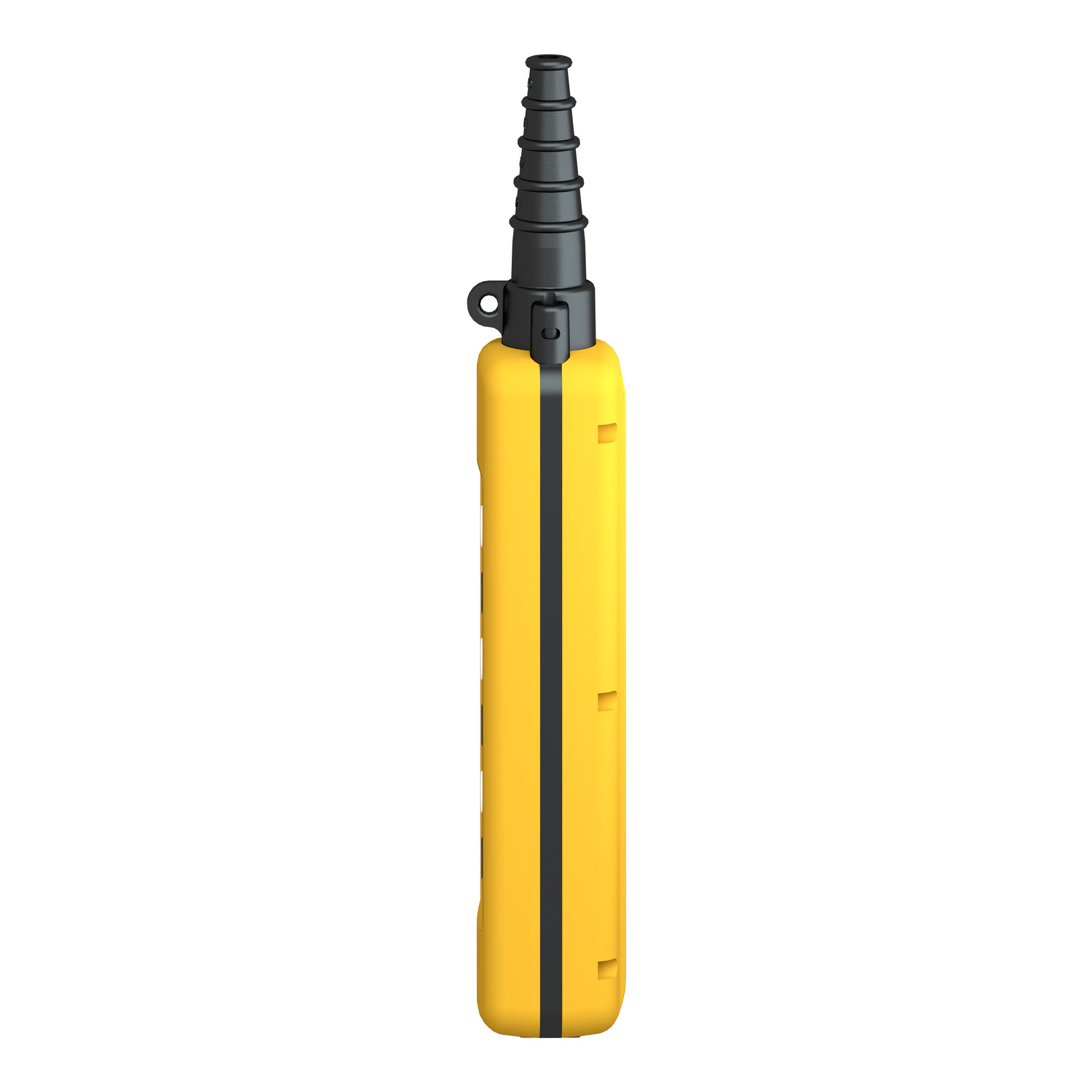

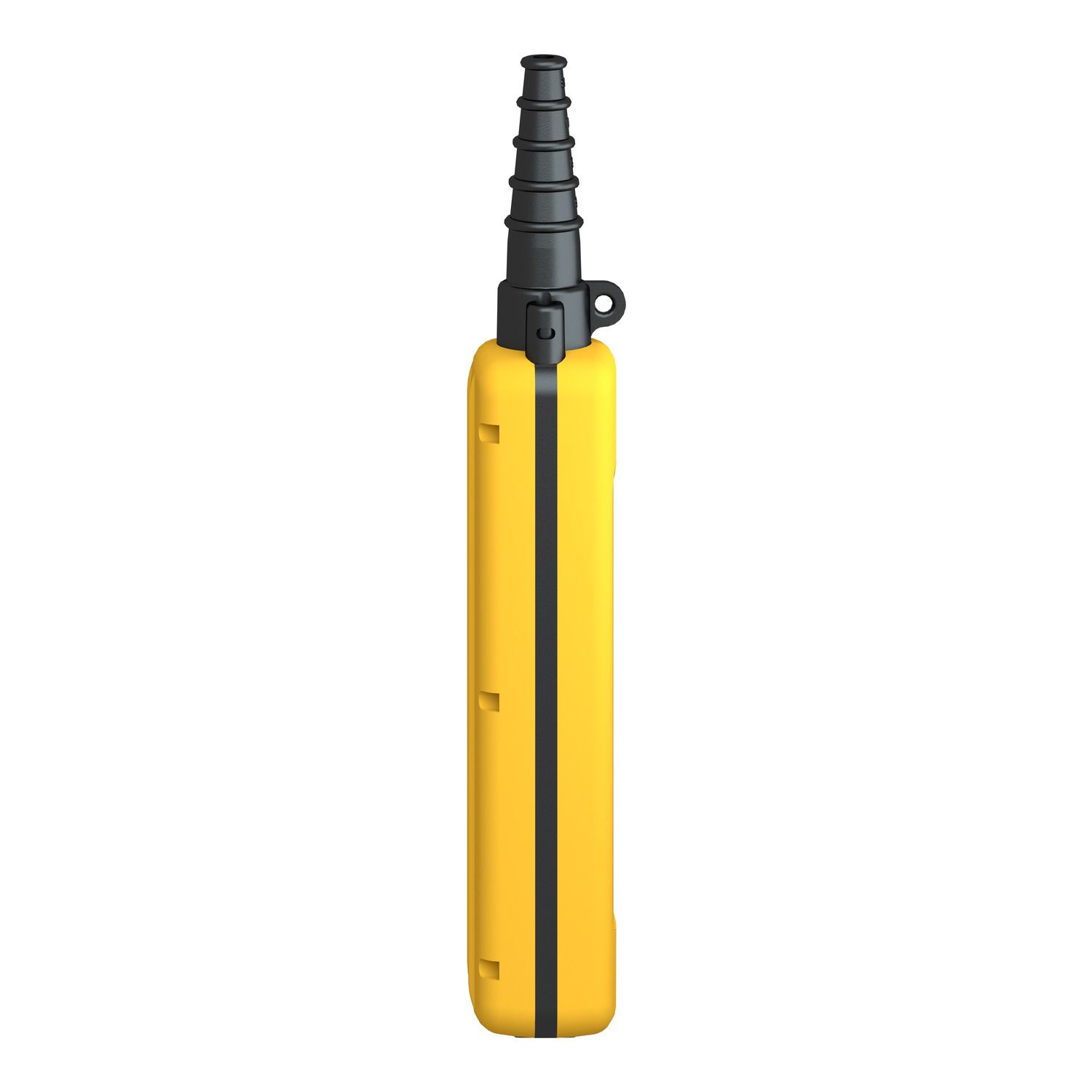

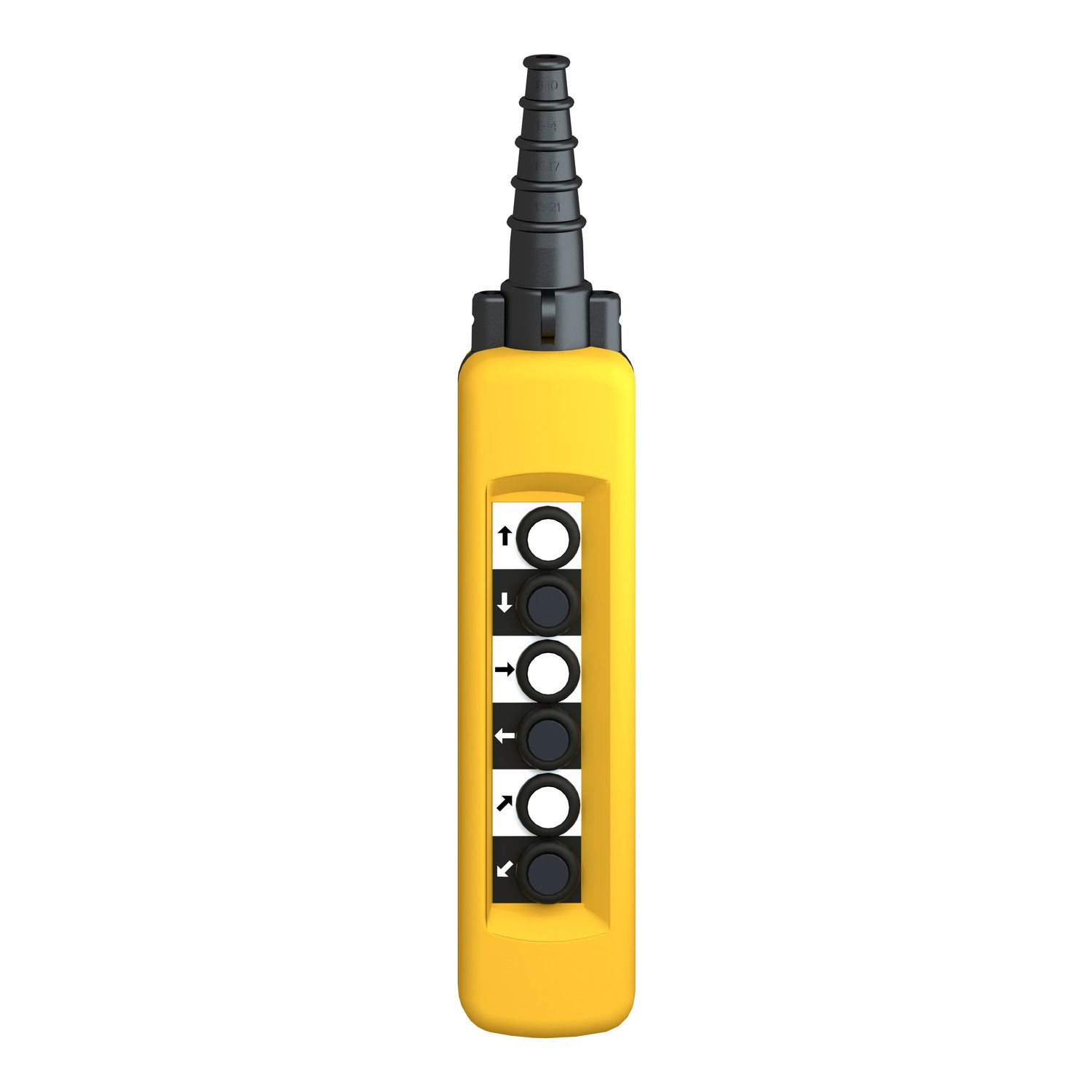

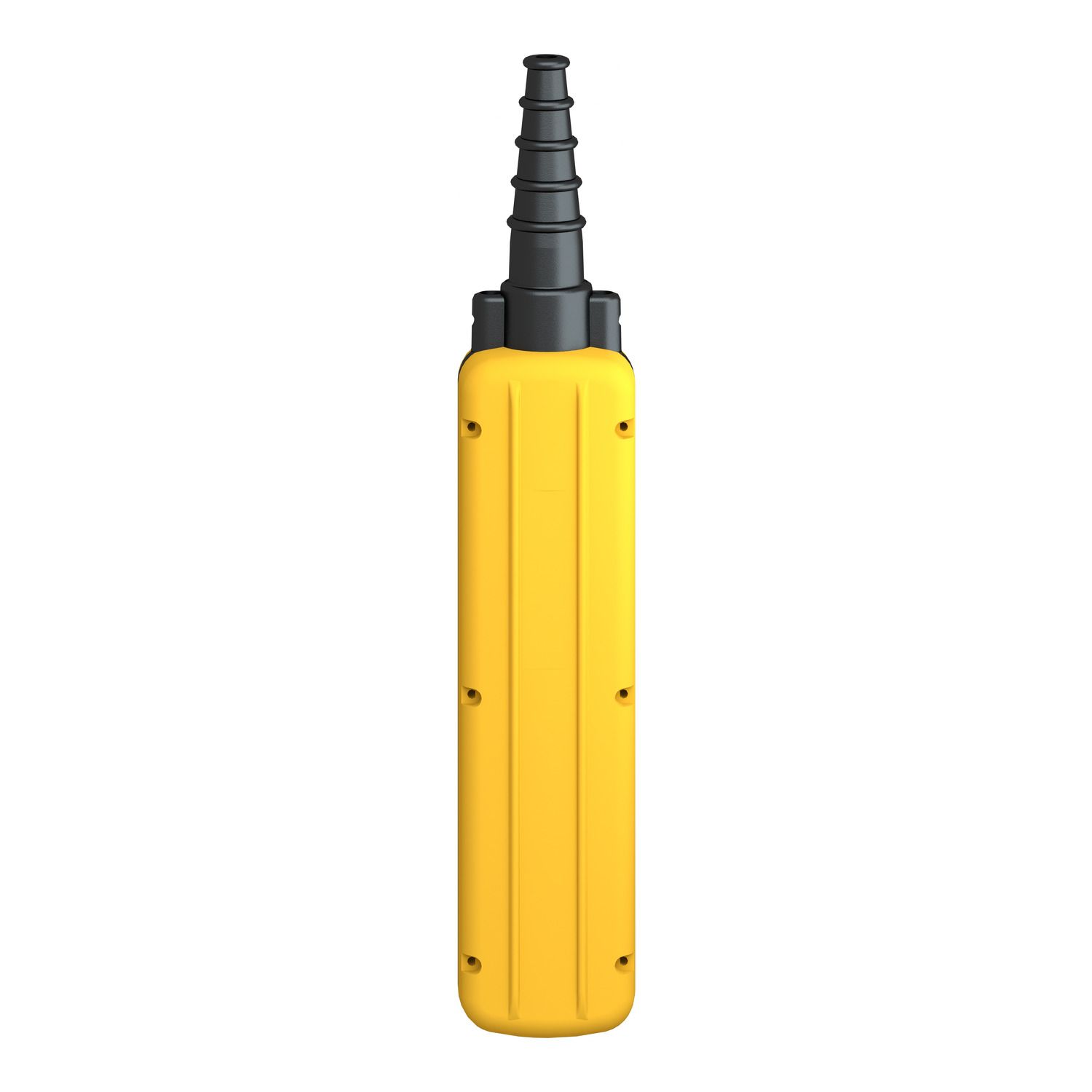

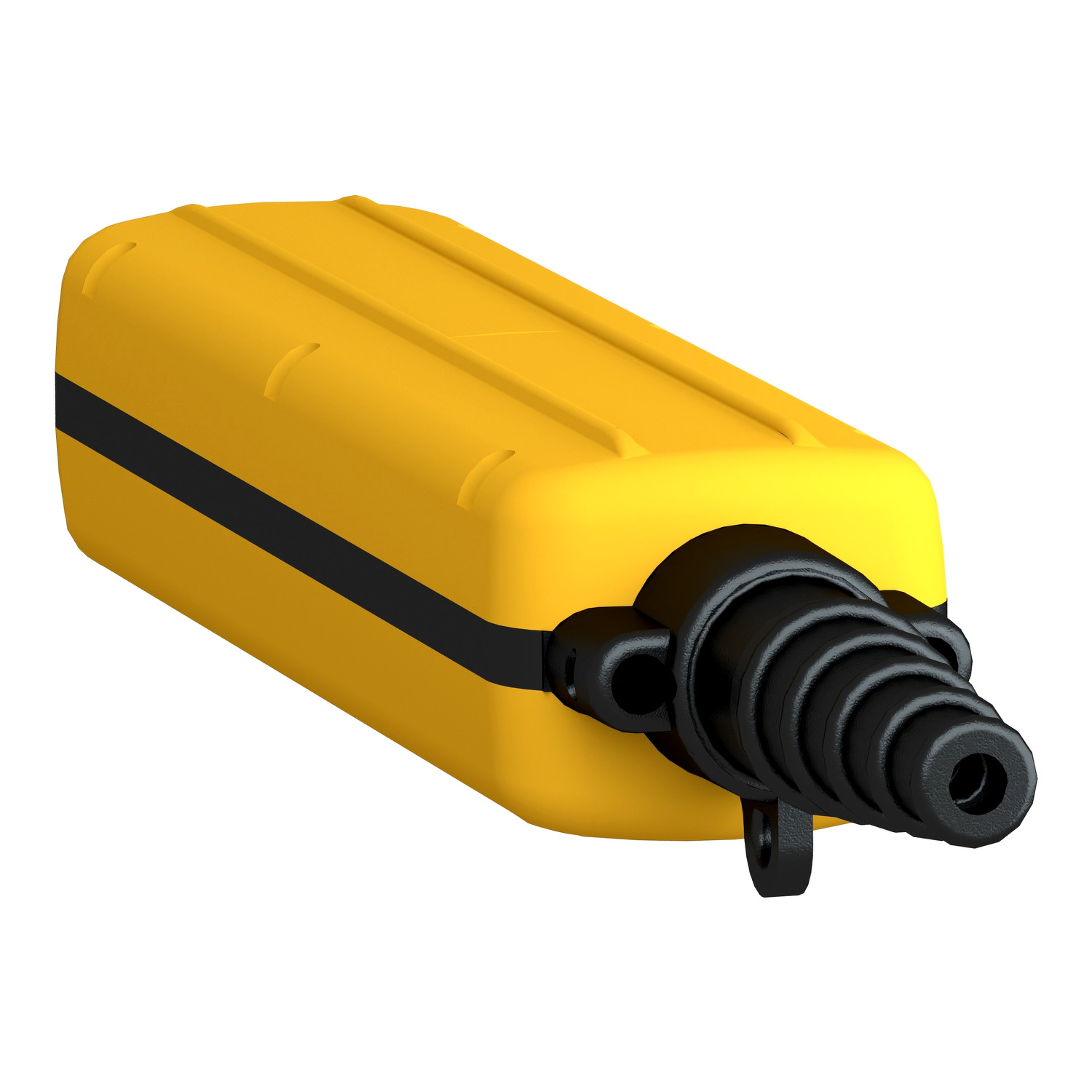

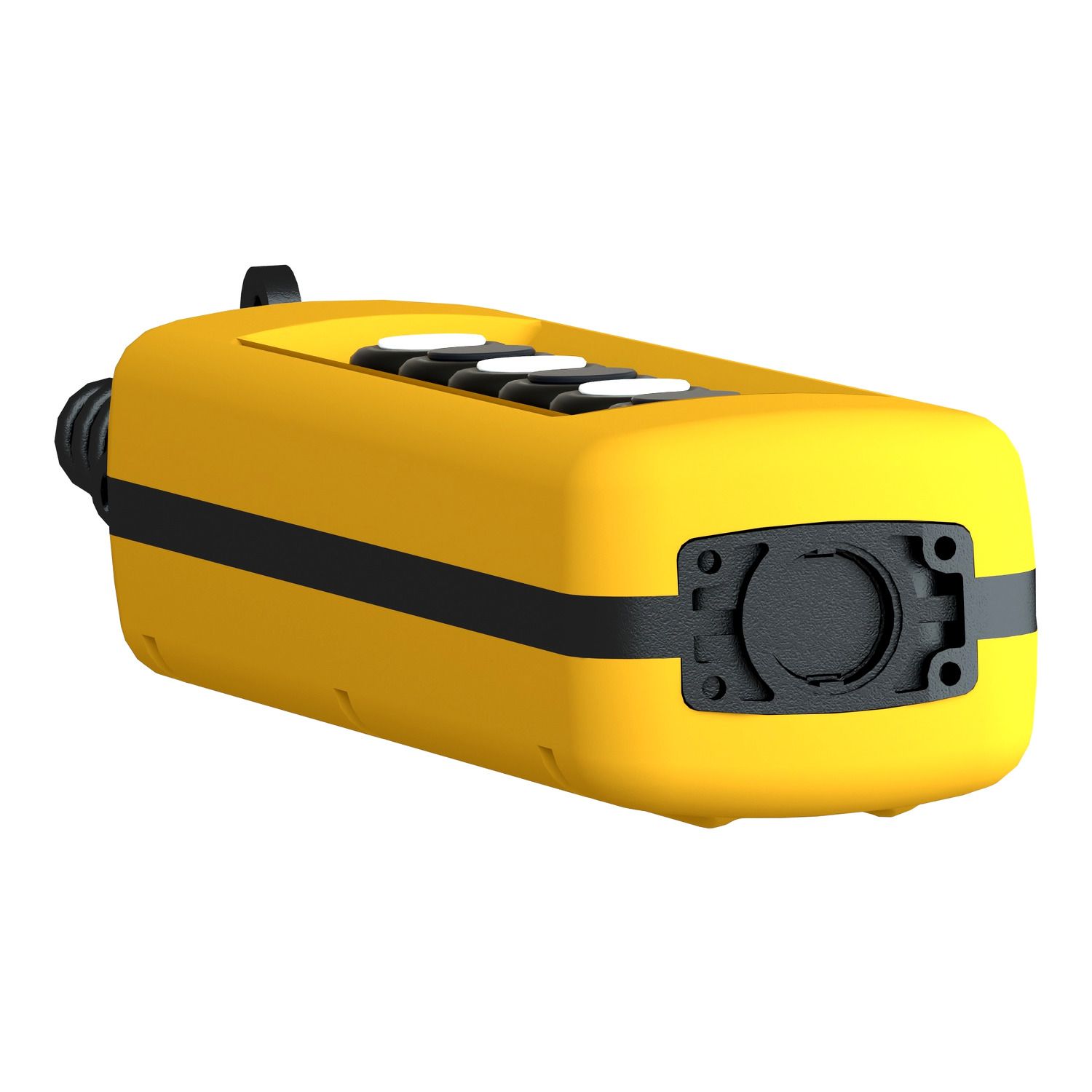

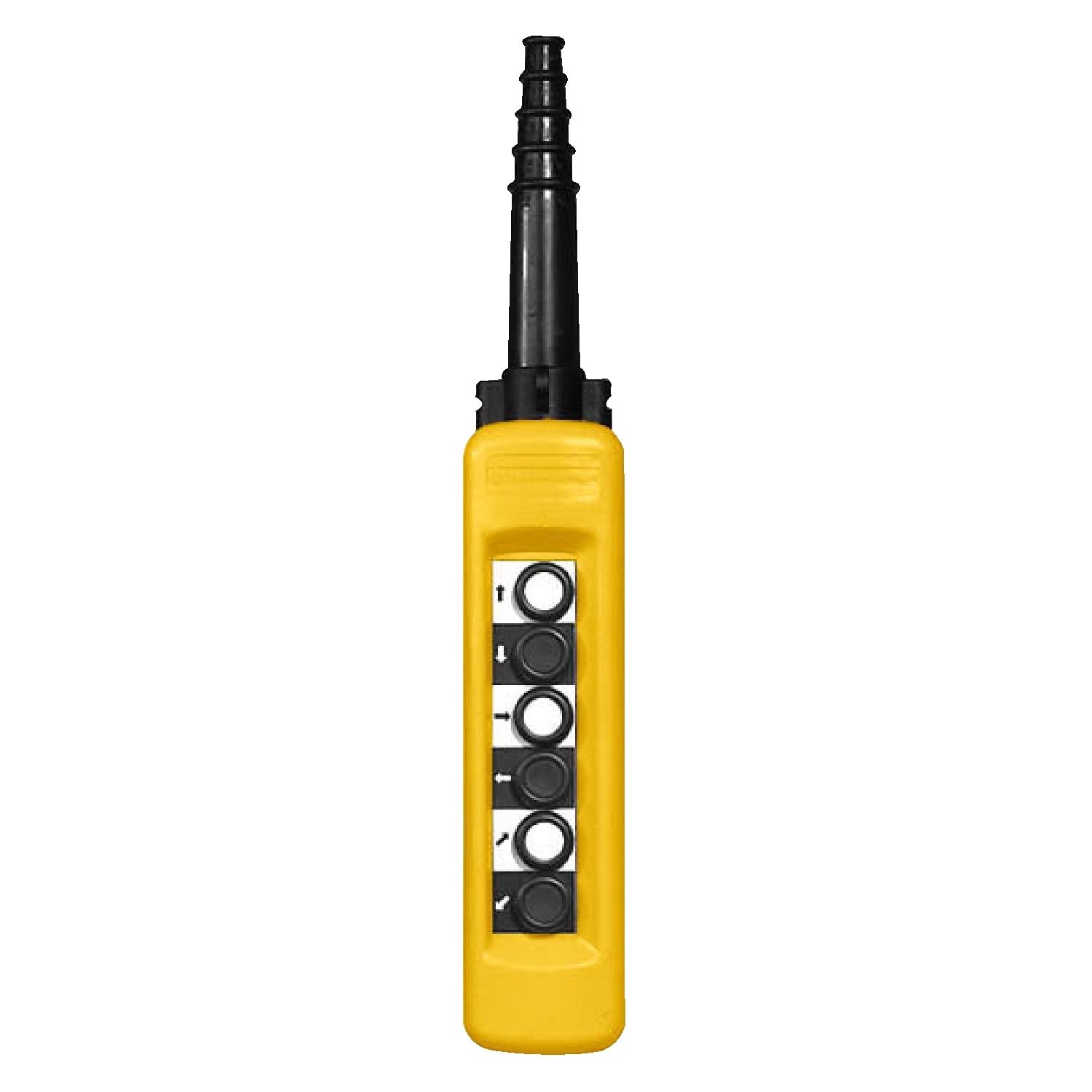

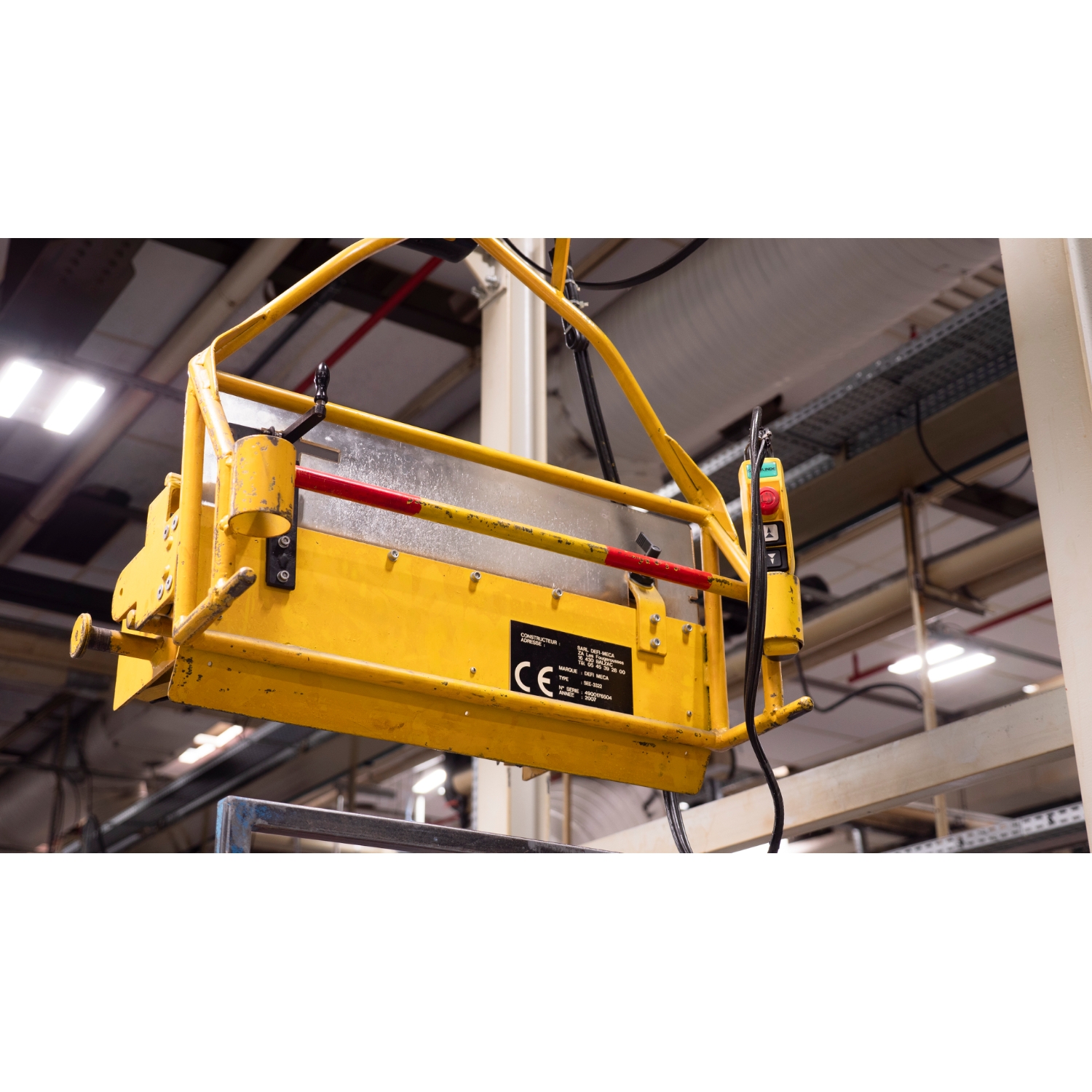

This Harmony XACA681 is a pendant control station with 6 push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACA |
| Product or component type | pendant control station |
| Range of product | Harmony XAC |
| Complementary | |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Protective treatment | TH |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Enclosure material | polypropylene |
| [Ithe] conventional enclosed thermal current | 10 A |
| Electrical circuit type | control circuit |
| Control button type | first push-button 1 NC + 1 NO raise, slow |
| Operating force | 13-13 N push-button |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Mechanical interlocking | with mechanical interlocking between pairs |
| Contact operation | slow-break |
| Overvoltage category | class II conforming to IEC 61140 |
| Control station composition | 6 push-buttons |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Product compatibility | ZB2BE102 + ZB2BE101 for each direction |
| Net weight | 0.95 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Enclosure type | complete ready for use |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Cable entry | rubber sleeve with stepped entry 8-26 mm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Standards | CSA C22.2 No 14 |
| Terminals description ISO n°1 | (11-12)NC |
| Ambient air temperature for operation | -25-70 °C |
| Terminal identifier | (13-14)NO |
| IK degree of protection | IK08 conforming to EN 50102 |
| Control station application | control of single speed hoist motor |
| Product certifications | CSA |
