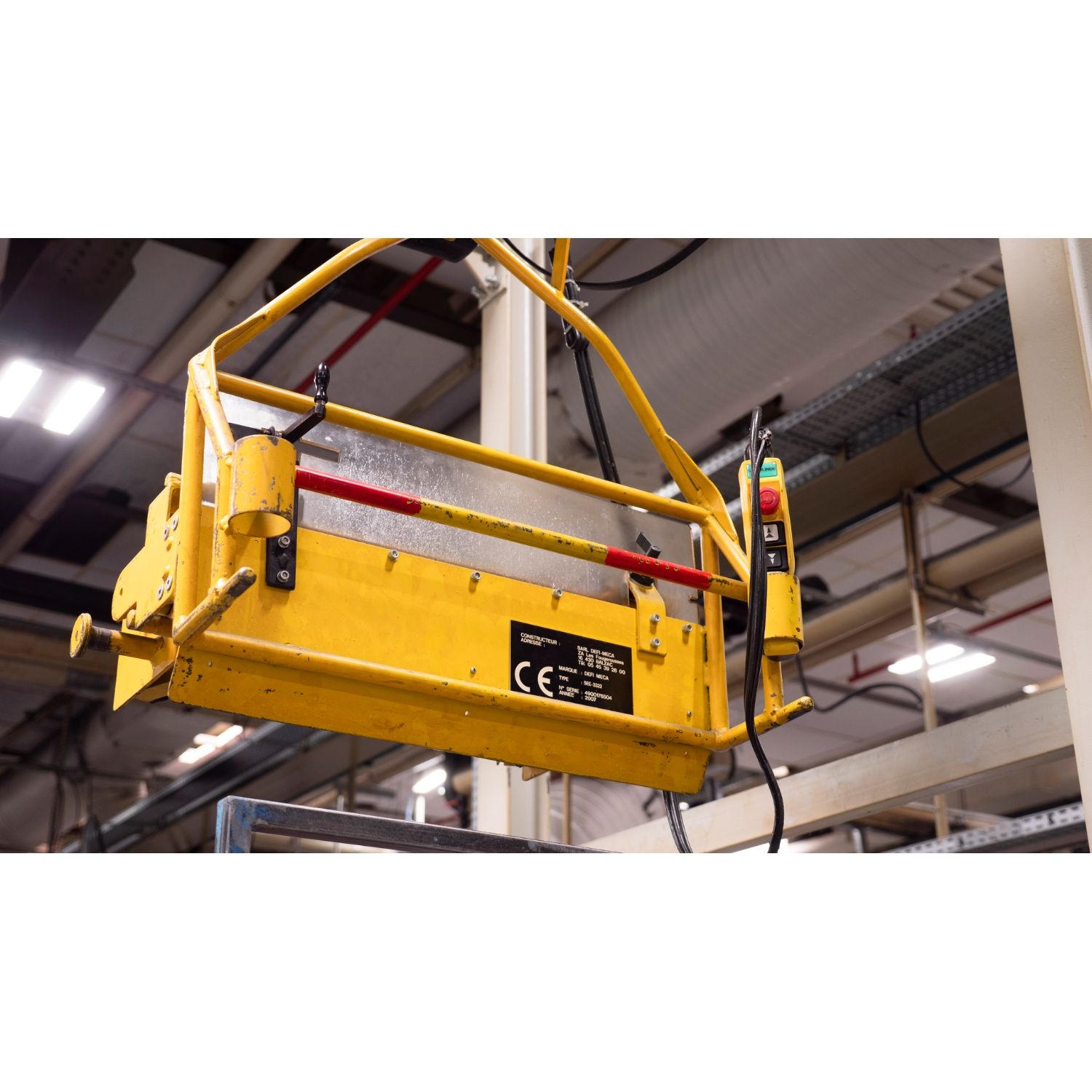

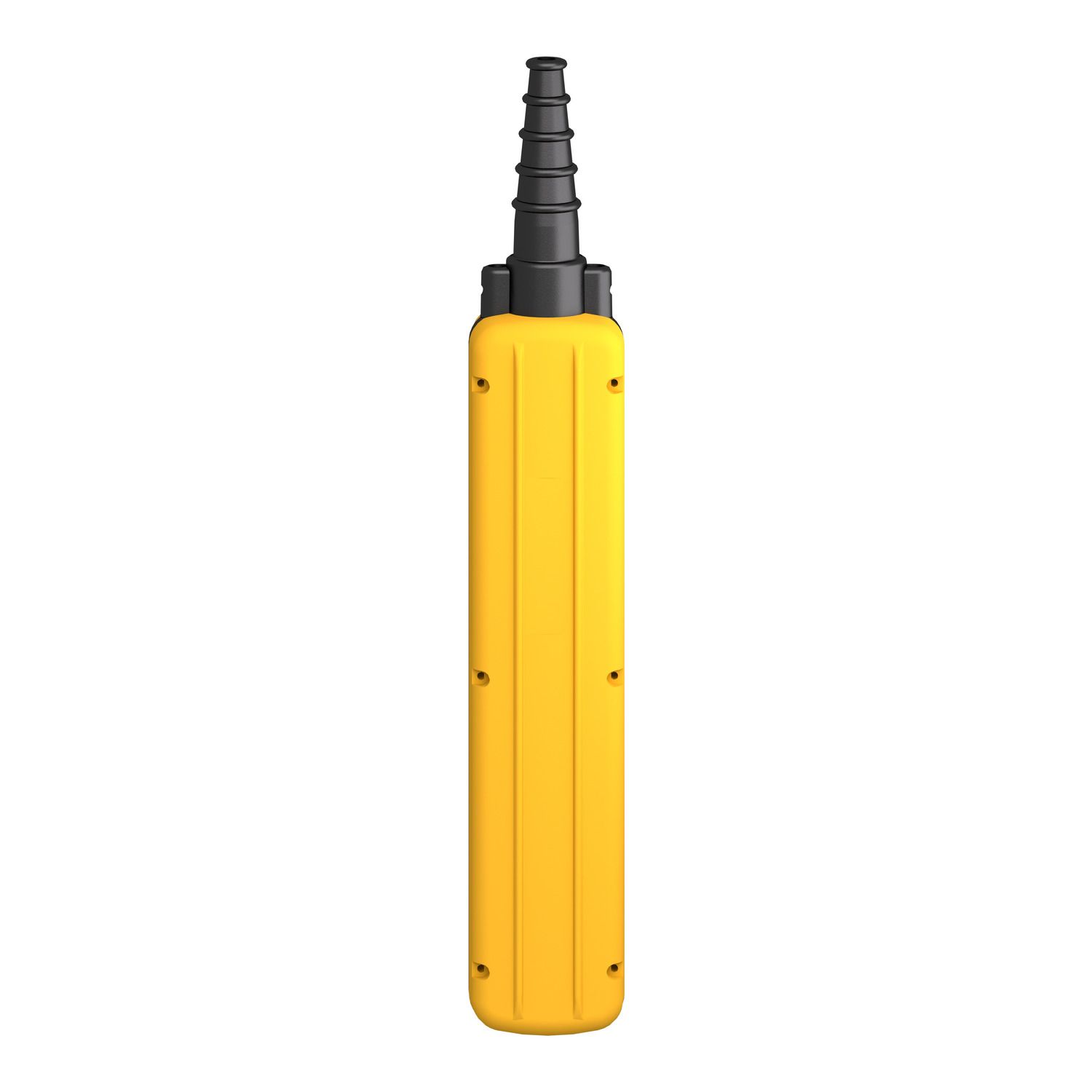

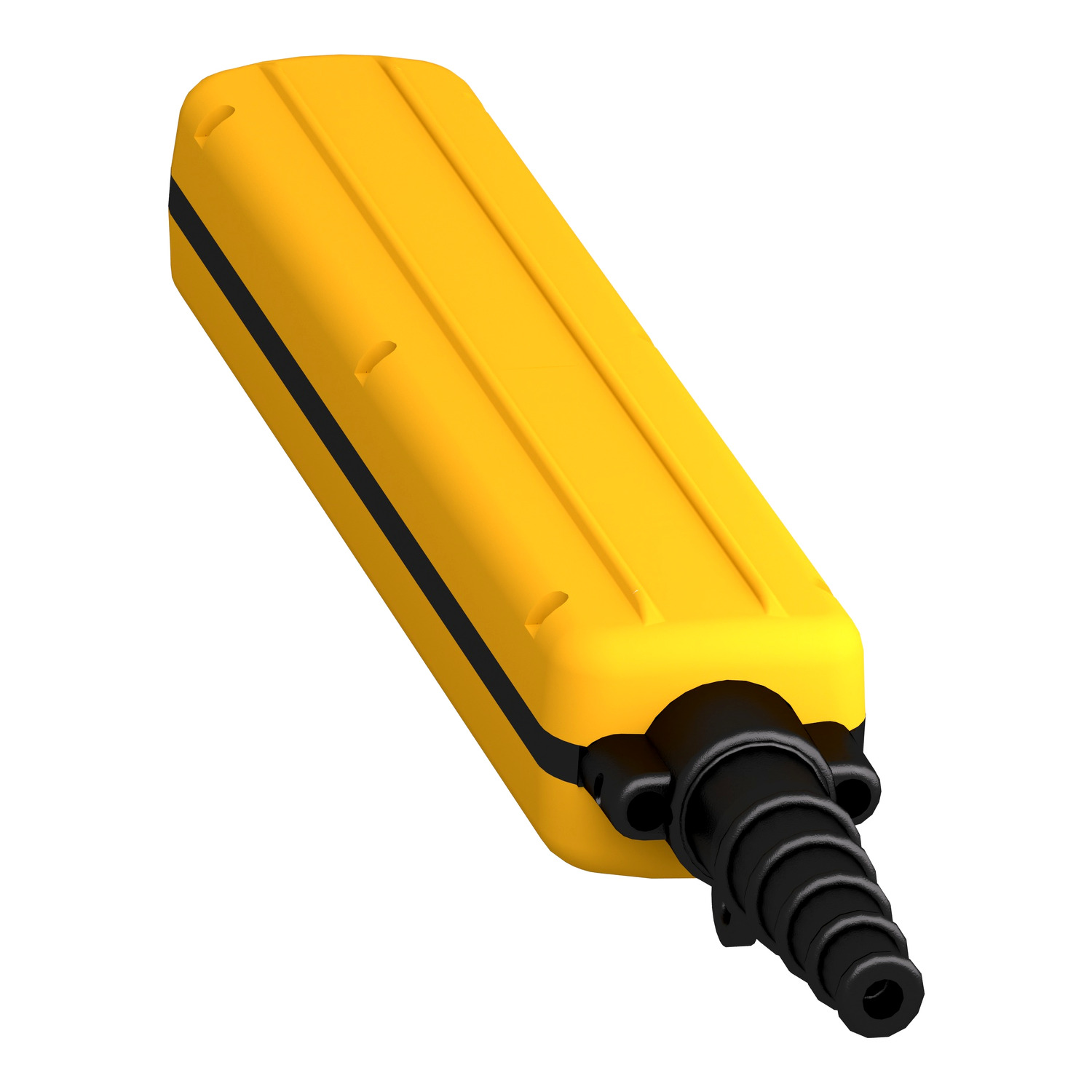

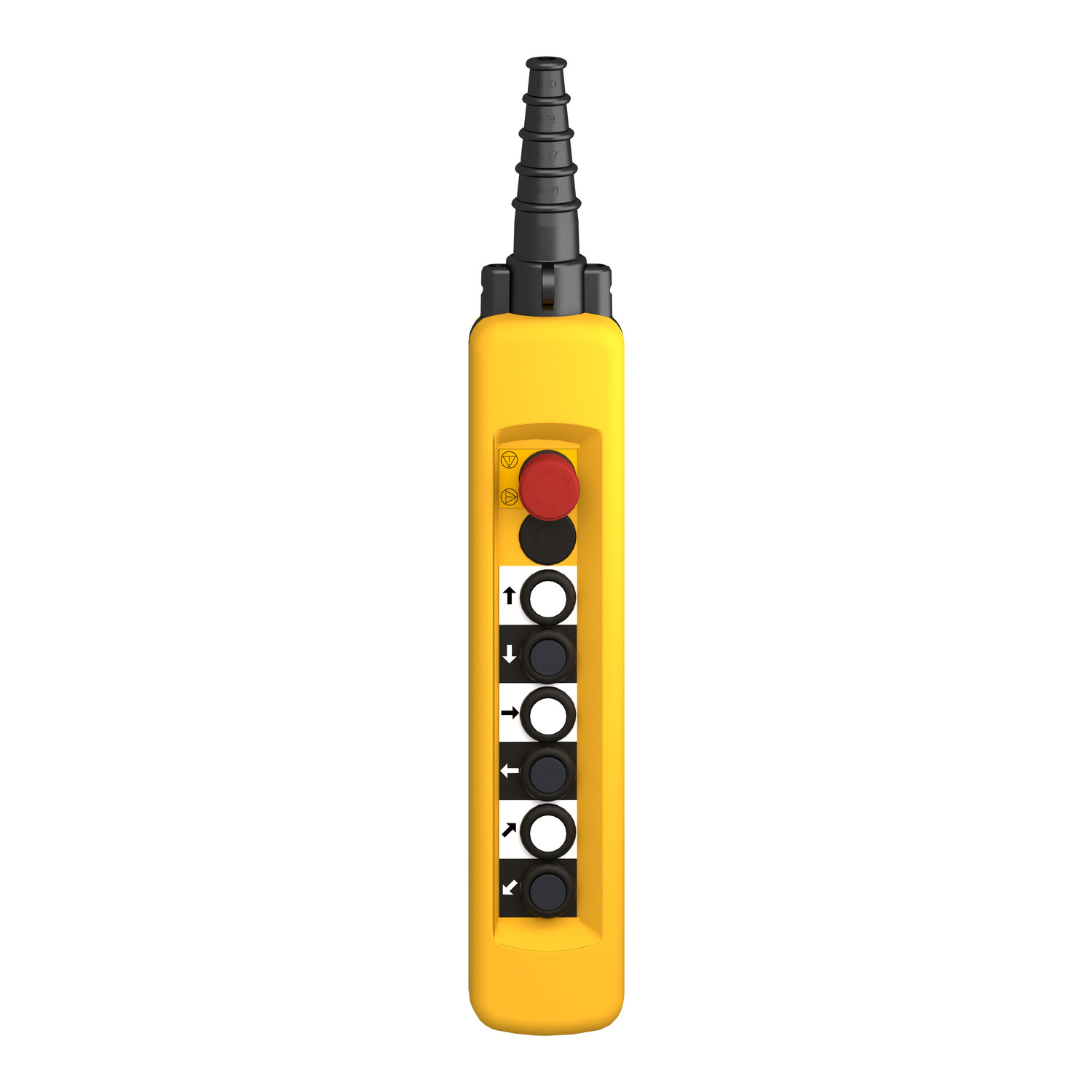

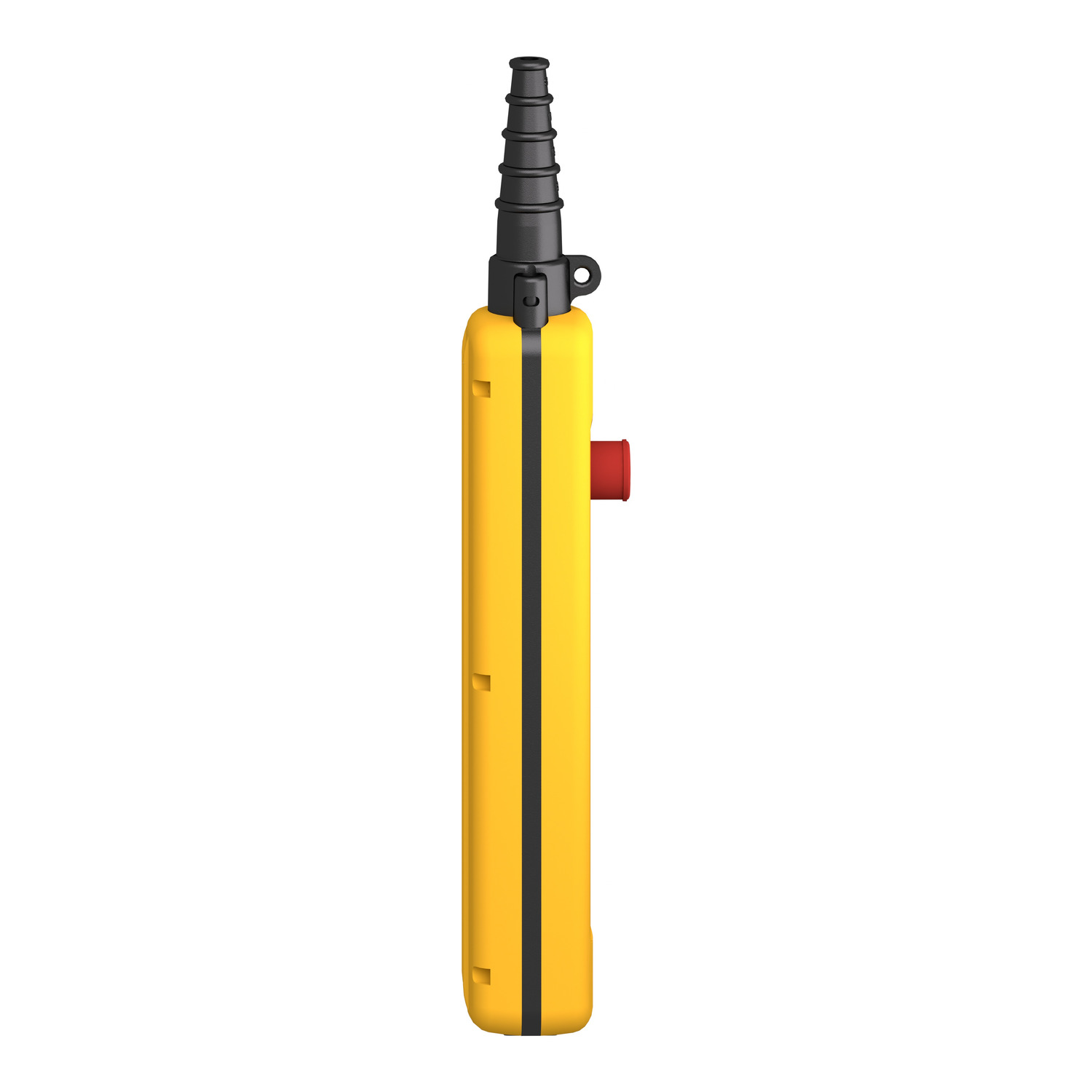

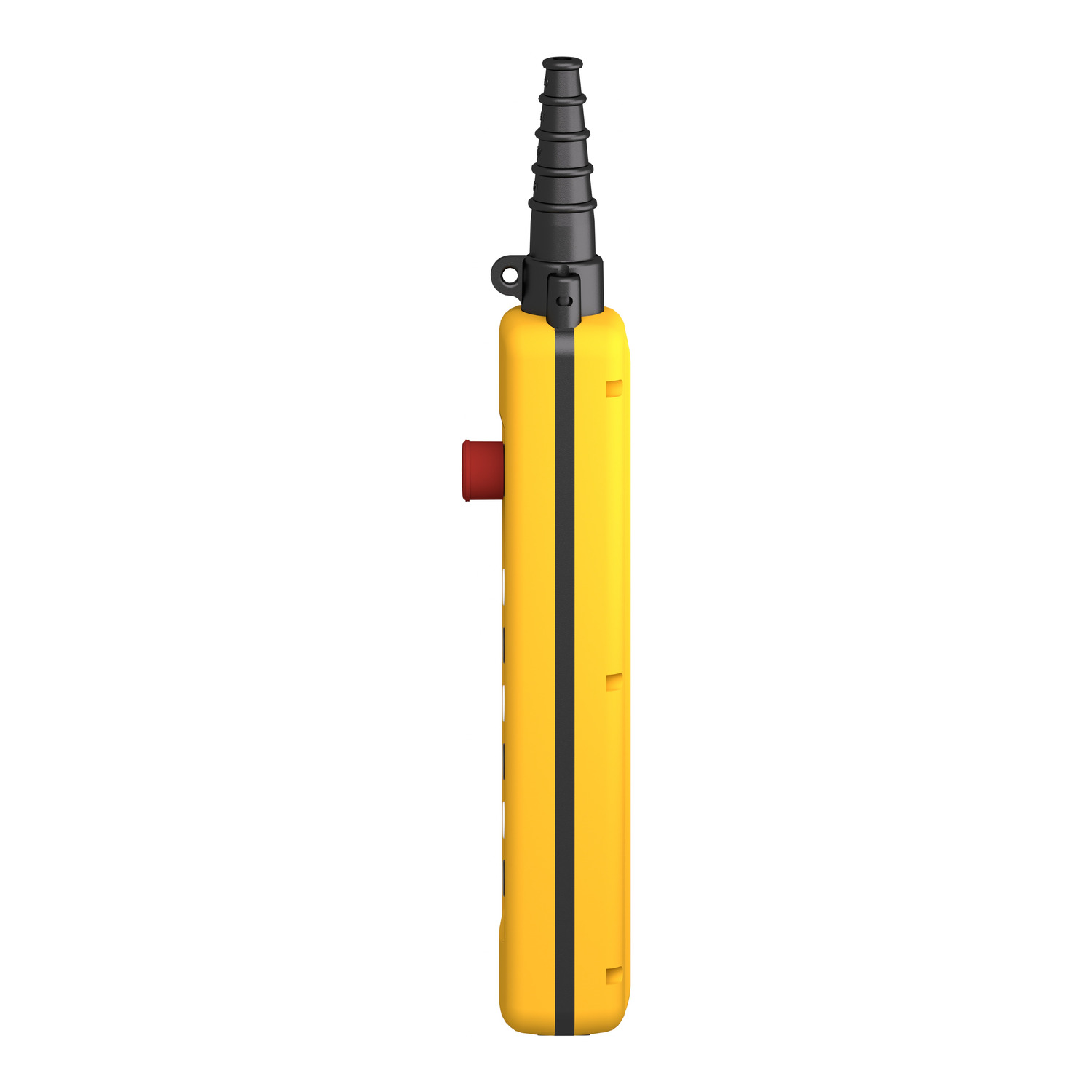

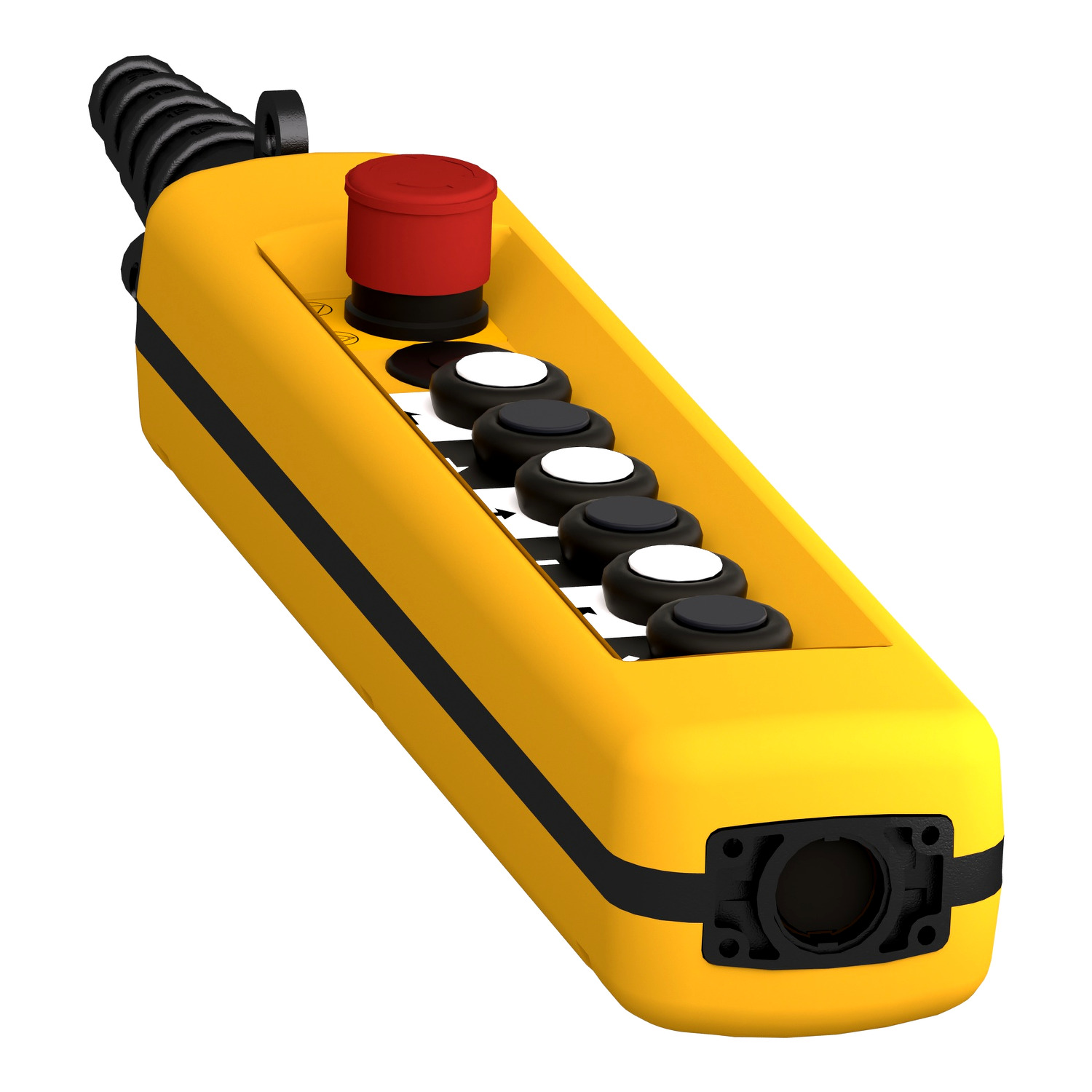

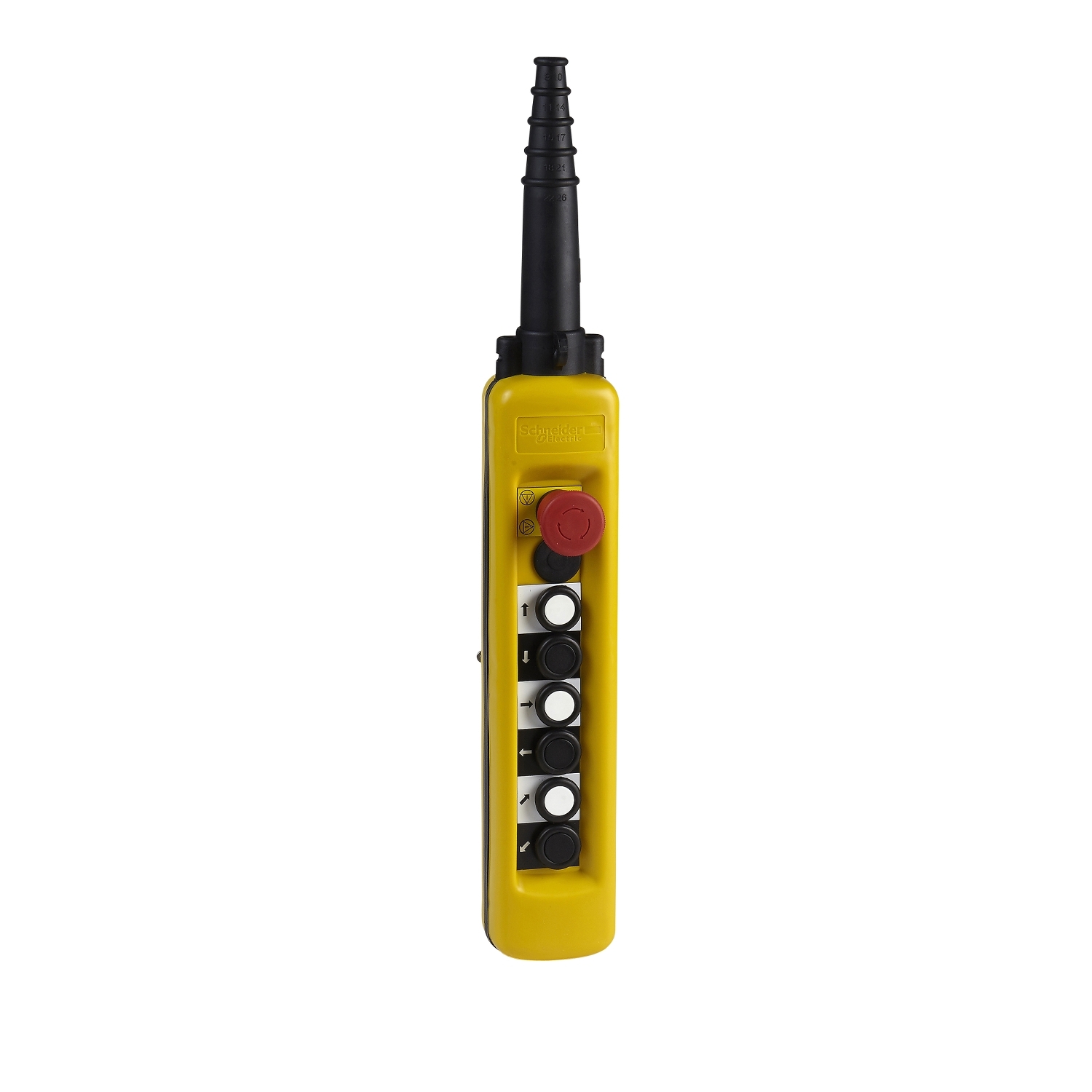

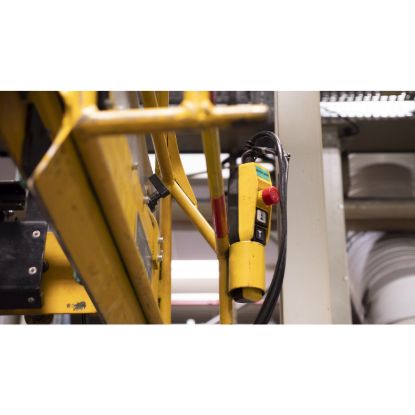

This Harmony XAC, yellow pendant station for hoist motor has 2-speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 5 push buttons and 1 emergency stop with "raise", "lower", "left", "right", "forward" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It offers movement in 2 speeds (low and high) for each movements. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACA |
| Product or component type | pendant control station |
| Range of product | Harmony XAC |
| Complementary | |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Protective treatment | TH |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Enclosure material | polypropylene |
| [Ithe] conventional enclosed thermal current | 10 A |
| Electrical circuit type | control circuit |
| Control button type | fifth push-button 1 NC + 1 NO + 1 NO forward, slow-fast, fourth push-button 1 NC + 1 NO + 1 NO right, slow-fast, third push-button 1 NC + 1 NO + 1 NO left, slow-fast, second push-button 1 NC + 1 NO + 1 NO lower, slow-fast, first push-button 1 NC + 1 NO + 1 NO raise, slow-fast, emergency stop push-button Ø 40 mm 1 NC trigger action blank |
| Operating force | 14-14 N emergency stop, 13-13 N push-button |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Mechanical interlocking | with mechanical interlocking between pairs |
| Contact operation | slow-break |
| Overvoltage category | class II conforming to IEC 61140 |
| Control station composition | 7 push-buttons + 1 emergency stop |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 600 V (pollution degree 3), emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Product compatibility | XENG1191, ZB2BE102 + ZB2BE101 for each direction, ZB2BE102 for emergency stop |
| Net weight | 0.97 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Enclosure type | complete ready for use |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Cable entry | rubber sleeve with stepped entry 8-26 mm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Standards | EN/ISO 13850: 2006, IEC 60947-5-5, UL 508, CSA C22.2 No 14, IEC 60204-32, IEC 60947-5-1 |
| Terminals description ISO n°1 | (11-12)NC, (13-14)NO |
| Terminals description ISO n°2 | (21-22)NC, (11-12)NC, (31-32)NC |
| Ambient air temperature for operation | -25-70 °C |
| Terminal identifier | (13-14)NO, (11-12)NC |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Control station application | control of 2-speed hoist motor |
| Product certifications | GOST, CCC |
