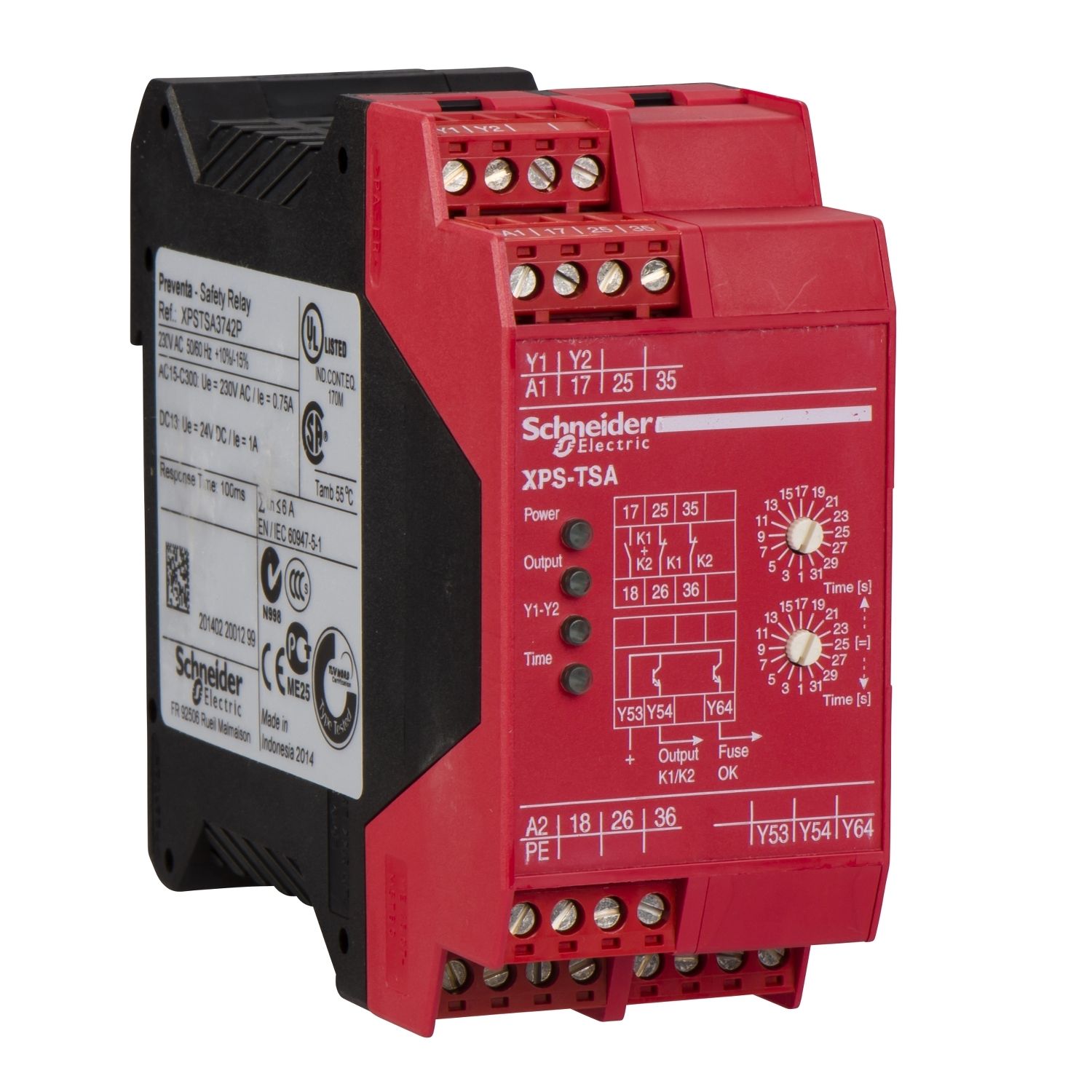

This XPSTSA safety module monitors applications with interlocking on high inertia machines. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 1.3E-7 1/h conforming to EN/IEC 62061, DC = 60...90 % conforming to EN/ISO 13849-1, MTTFd = 126 years conforming to EN/ISO 13849-1 |
| Safety module application | for application with interlocking on high inertia |
| Number of additional circuits | 2 solid state outputs |
| Safety module name | XPSTSA |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 230 V AC - 15...10 % |
| Safety level | can reach SILCL 2 conforming to EN/IEC 62061, can reach PL d/category 3 conforming to EN/ISO 13849-1 |
| Function of module | monitoring safety time delays |
| Output type | relay, 1 NO + 2 NC circuit(s), volt-free |
| Product or component type | Preventa safety time delay module |
| Complementary | |
| Supply frequency | 50/60 Hz |
| Input protection type | internal, electronic |
| Connections - terminals | captive screw clamp terminals, removable terminal block solid cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block solid cable: 0.2...1 mm² without cable end, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.5...1.5 mm² with cable end, with double bezel, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, without bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, with bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...1 mm² with cable end, without bezel, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.2...1.5 mm² without cable end, 2 wires |
| Associated fuse rating | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Time delay | 1...31 s configurable |
| Minimum output voltage | 17 V for relay output |
| [Ith] conventional free air thermal current | 6 A for relay output |
| Height | 99 mm |
| Breaking capacity | 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for solid state output circuit, 10 mA at 48 V |
| Maximum power consumption in VA | 5.5 VA AC |
| Depth | 114 mm |
| Width | 45 mm |
| Local signalling | 4 LEDs |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1 |
| Net weight | 0.36 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1 |
| Minimum output current | 10 mA for relay output |
| Mounting support | 35 mm symmetrical DIN rail |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| IP degree of protection | IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -10-55 °C |
| Standards | EN/IEC 60947-5-1, EN/IEC 60204-1 |
| Product certifications | TÜV, CSA, UL |
