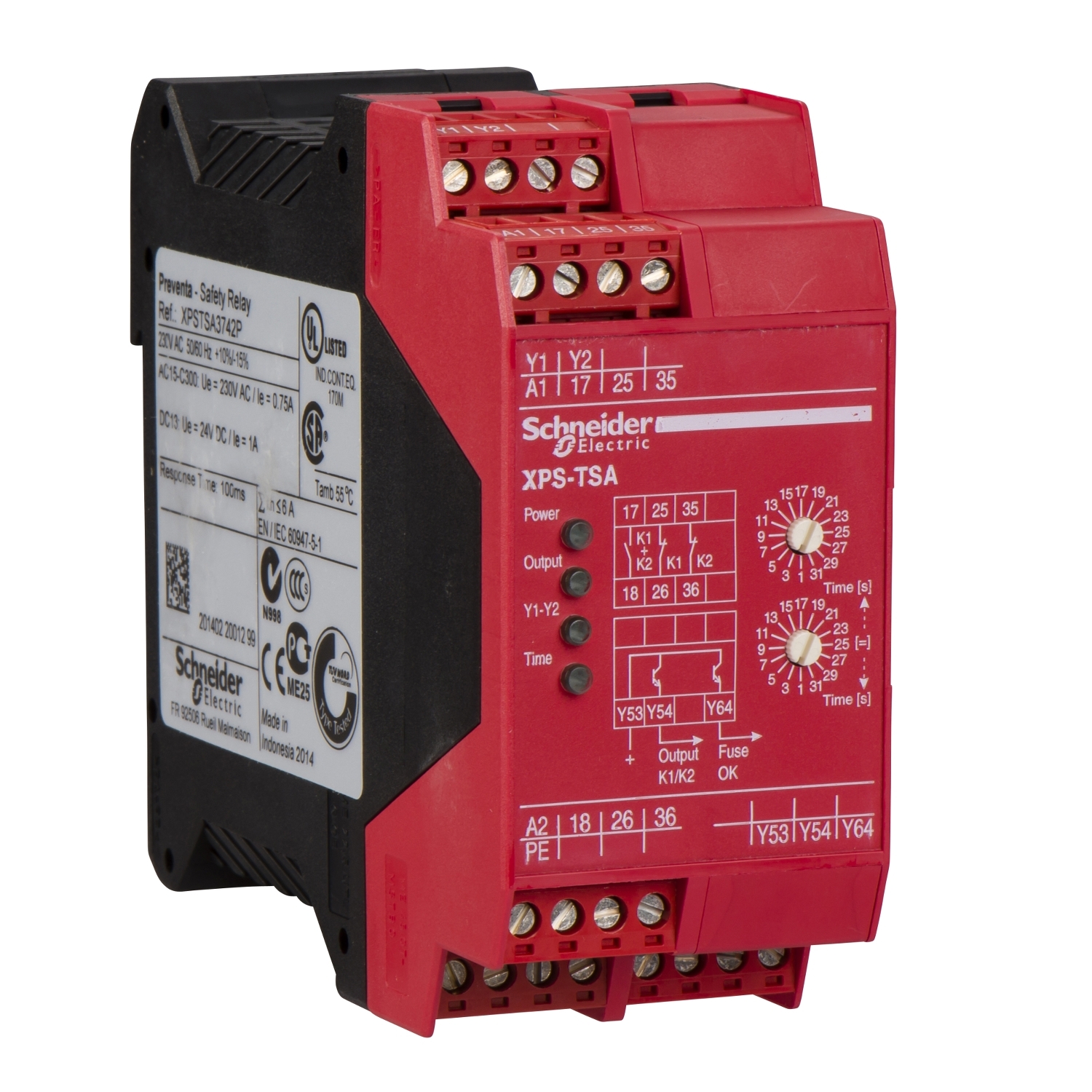

This product is part of the Preventa XPS range, an offer of safety modules. The safety time delay module provides 2 solid state, 1 normally opened + 2 normally closed volt-free relay outputs. It is a time delay module with a rated supply voltage of 24V AC/DC, an output current 10mA, an output voltage 17V and a conventional enclosed thermal current of 6A. It is furnished with captive screw clamp terminals for electrical connection. It is an IP20 and IP40 rated product. Its dimensions are 45mm (Width) x 114mm (Depth) x 99mm (Height). It weighs 0.25kg. It is intended for all potentially dangerous machines requiring protection for both the operator and the machine. This product is certified by TUV, UL and CSA. It meets EN/IEC 60204-1 and EN/IEC 60947-5-1 standards. It supports 35mm symmetrical DIN rail mount. Simple, it features redundancy principle micro-processor based technology to provide advanced functions. Wide product range enabling easy selection of a module for monitoring a safety function.
