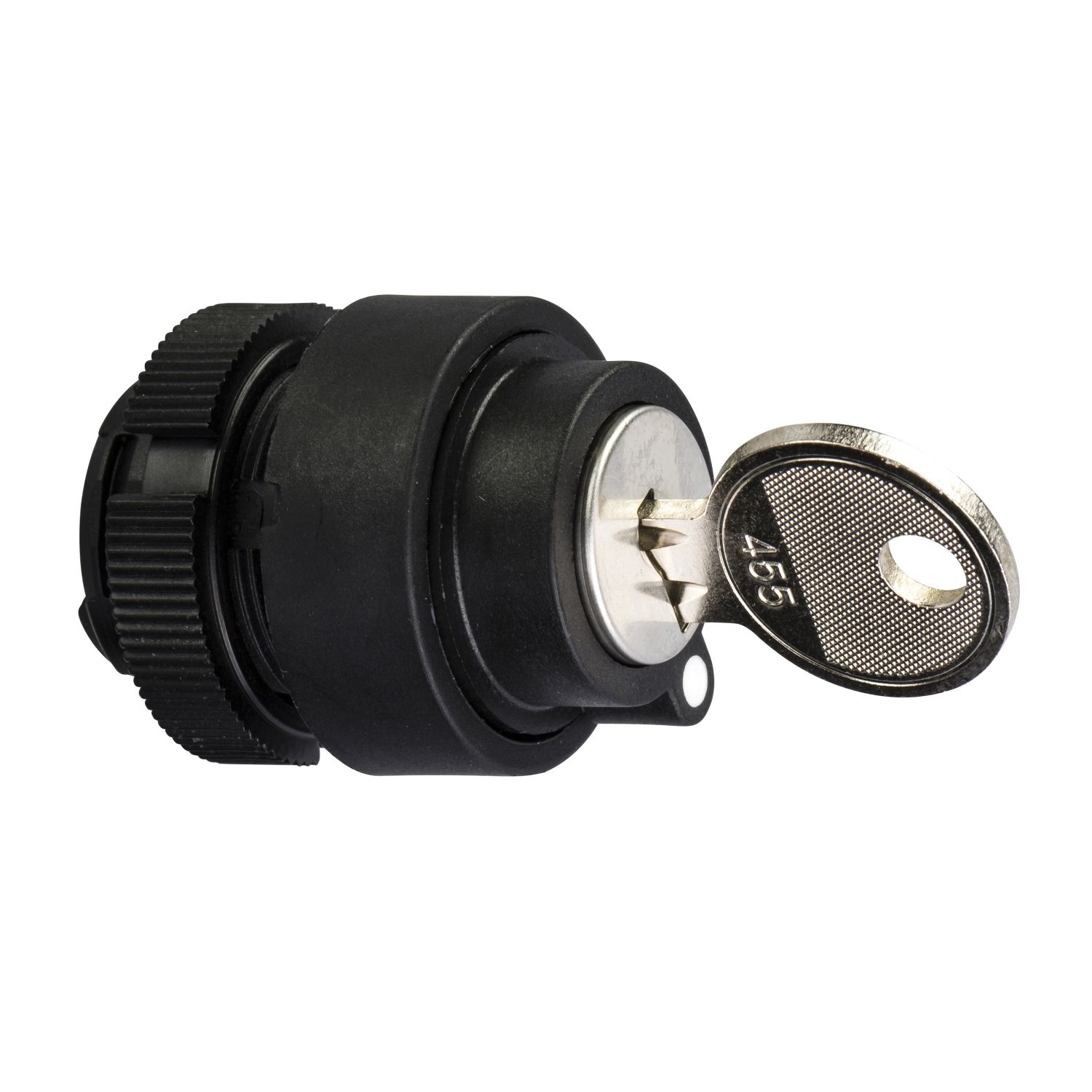

This Harmony ZA2 range is a black selector switch head. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units and it has 2 positions. It is supplied with key operated knob (key n° 455). It features 2 positions maintained, at 90°. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XAC pendant control stations in diameter 22.5mm cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 42g. It complies with directives such as RoHS and REACh relating to environmental protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA |
| Component name | ZA2 |
| Product or component type | selector switch |
| Range of product | Harmony XAC |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Mounting location | base of enclosure, front of enclosure |
| Net weight | 0.042 kg |
| Cap/operator or lens colour | black |
| Marking | unmarked |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60204-32, UL 508, CSA C22.2 No 14, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
