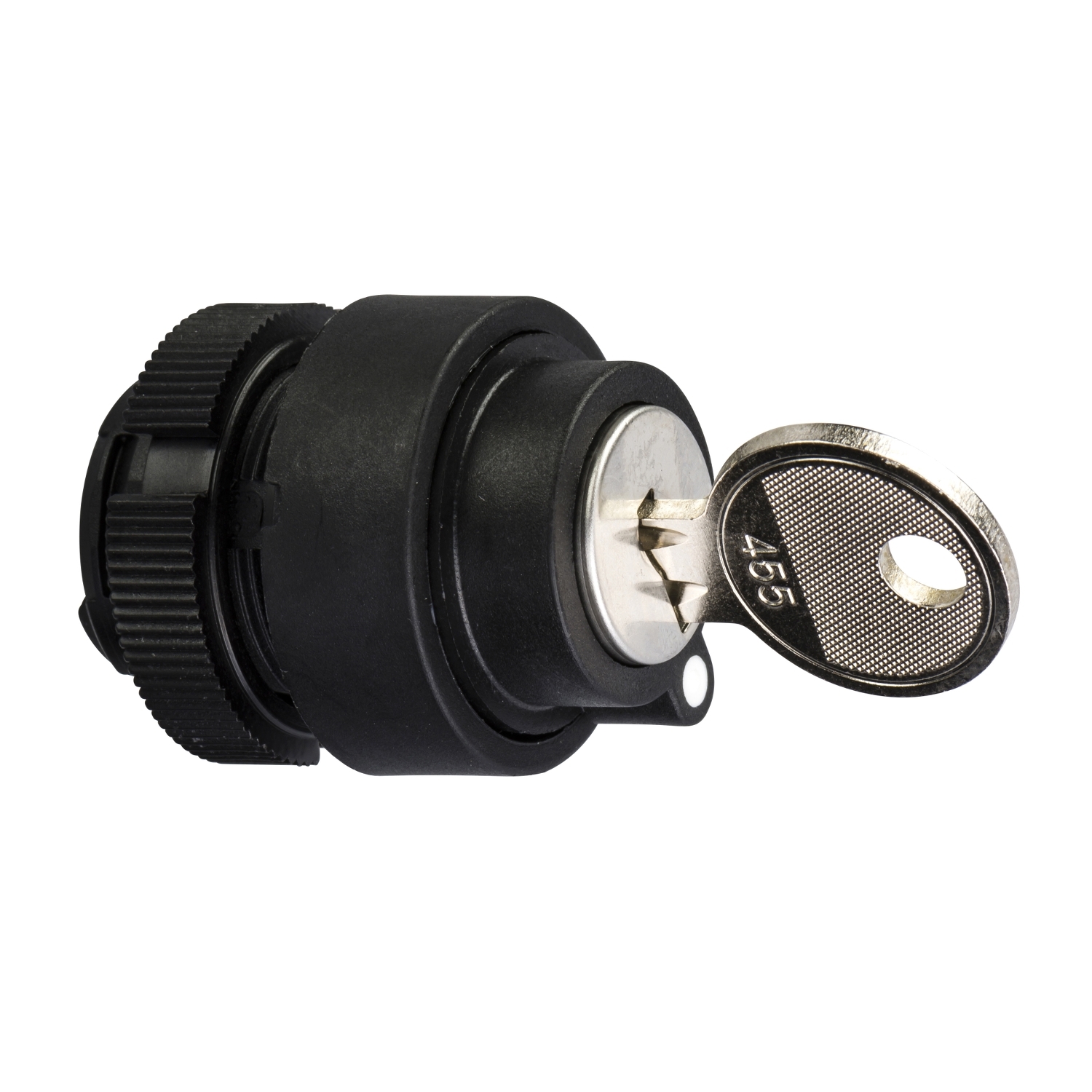

This head for selector switch is a separate component of the range of pendant control stations Harmony XAC. It has a dark grey plastic bezel. It is supplied with key operated knob (key n° 455). It features 2 positions maintained, at 90°. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XAC pendant control stations in diameter 22.5mm cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. It is IEC 60947-5-1, UL 508 and CSA C22.2 n° 14 compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA |
| Component name | ZA2 |
| Product or component type | selector switch |
| Range of product | Harmony XAC |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Mounting location | front of enclosure, base of enclosure |
| Net weight | 0.042 kg |
| Cap/operator or lens colour | black |
| Marking | unmarked |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60204-32, UL 508, CSA C22.2 No 14, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
