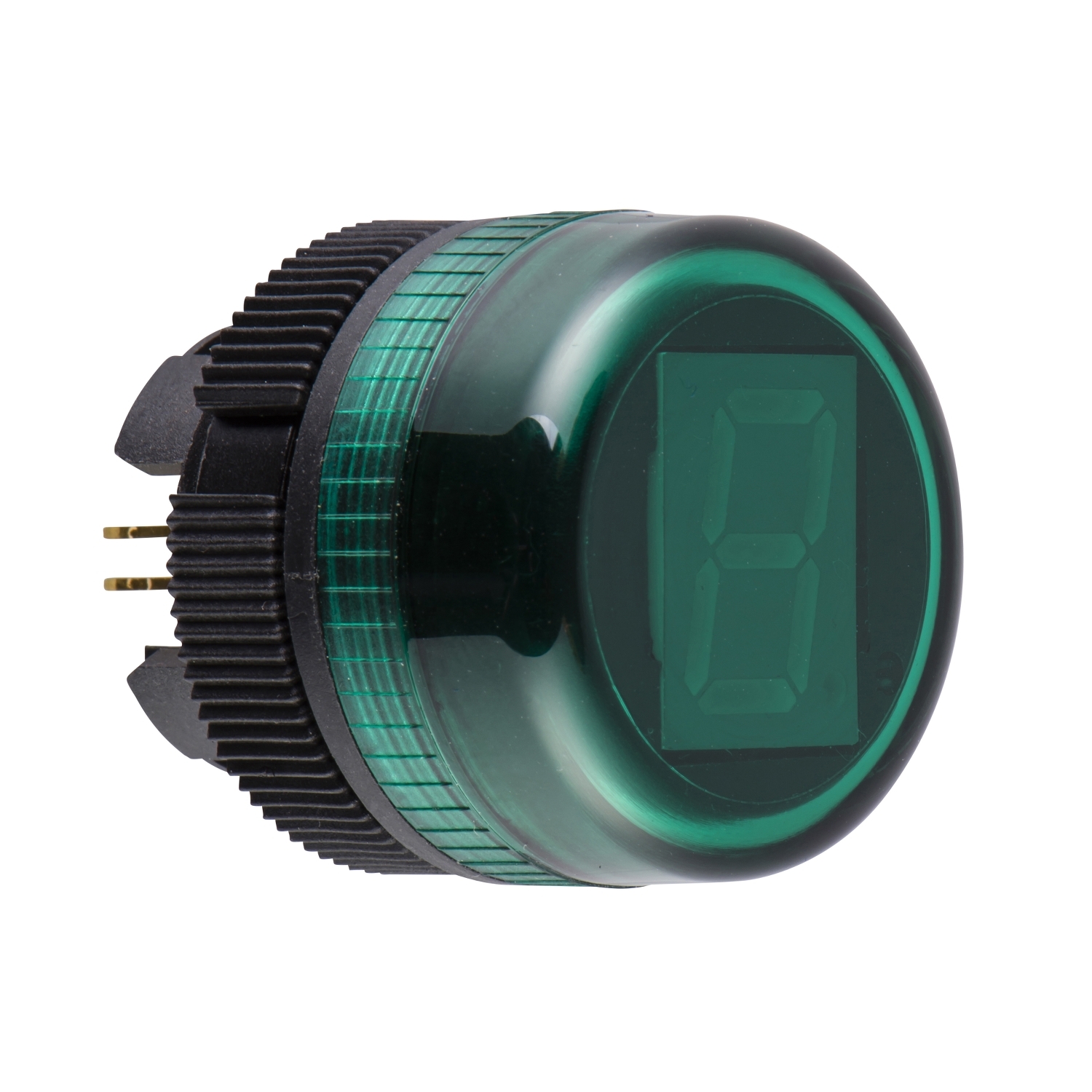

This Harmony ZA2VA03 is a green digital display head. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V DC |
| Cap/operator or lens colour | green |
| Product or component type | digital display head |
| Mounting diameter | 22 mm |
| Range of product | Harmony |
| Complementary | |
| Display type | 7 segments LED + decimal point |
| Supply voltage limits | 13-30 V |
| Net weight | 0.02 kg |
| Environment | |
| Electrical shock protection class | class II conforming to NF C 20-030 |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP65 conforming to NF C 20-010, IP65 conforming to IEC 60529 |
| Vibration resistance | 10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 180 gn 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CSA, UL |
