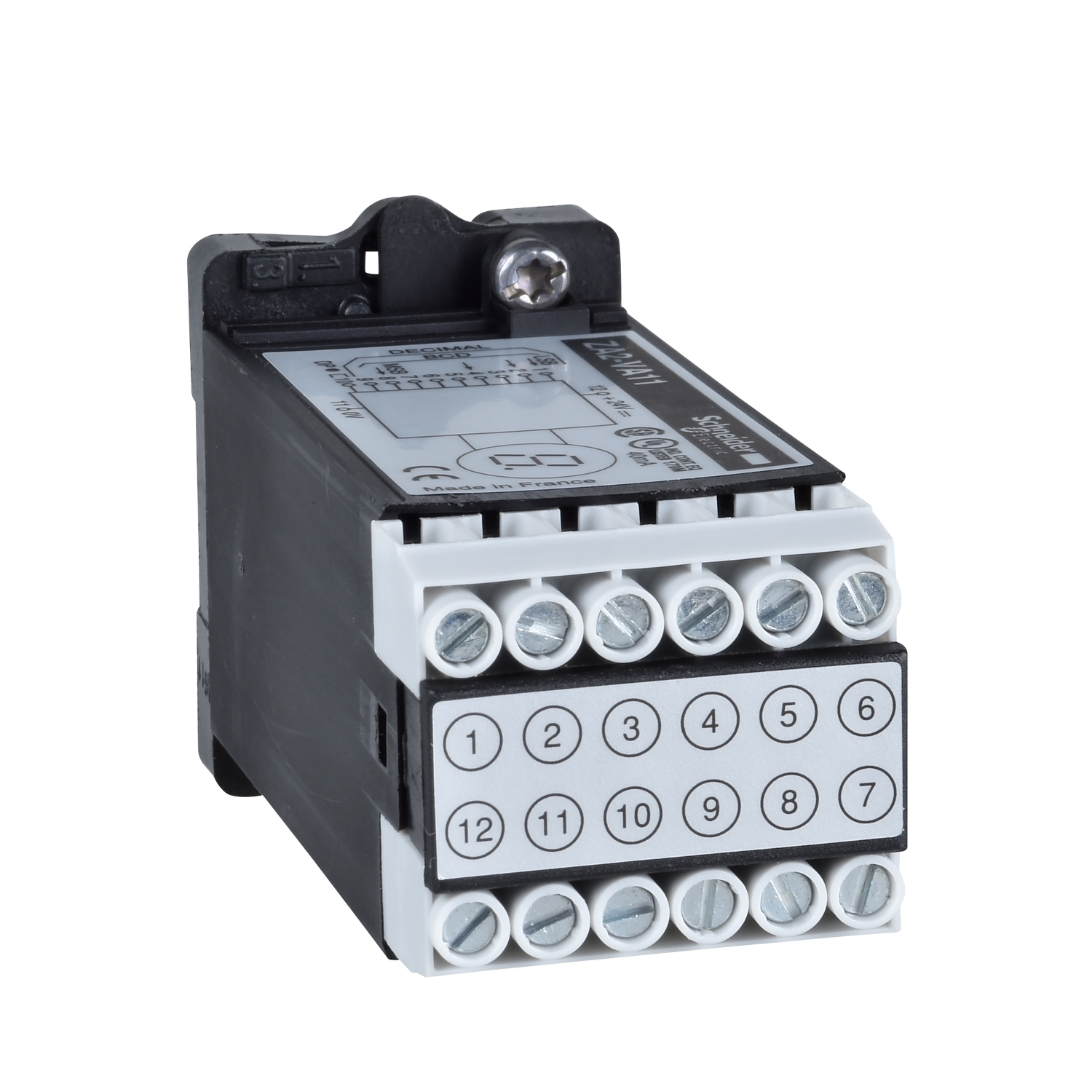

This digital display body is a separate component of the range diameter 22mm, Harmony XB5. It features a digital display body with BCD + latch decoding and screw connection type. Its supply voltage is 24V DC. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Harmony |
| [Us] rated supply voltage | 24 V DC |
| Connections - terminals | screw connectors, 0.5 x 2.5 mm² |
| Product or component type | digital display body |
| Complementary | |
| Voltage state 1 guaranteed | 13...30 V |
| Device mounting | fixing hole - diameter: 22.3 mm |
| Mounting support | panel |
| Protection type | reverse polarity protection |
| Supply voltage limits | 13-30 V |
| Current state 1 guaranteed | 4...9.5 mA |
| Electronic decoding | BCD + latch |
| Voltage state 0 guaranteed | -30...5 V |
| Current state 0 guaranteed | <= 1.4 mA |
| Current consumption | <= 40 mA at 24 V, <= 36 mA at 30 V |
| Logic input | positive |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP65 conforming to NF C 20-010, IP65 conforming to IEC 60529 |
| Shock resistance | 180 gn 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| Electrical shock protection class | class II conforming to NF C 20-030, class II conforming to IEC 60536 |
| Vibration resistance | 10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Product certifications | CSA, UL |
