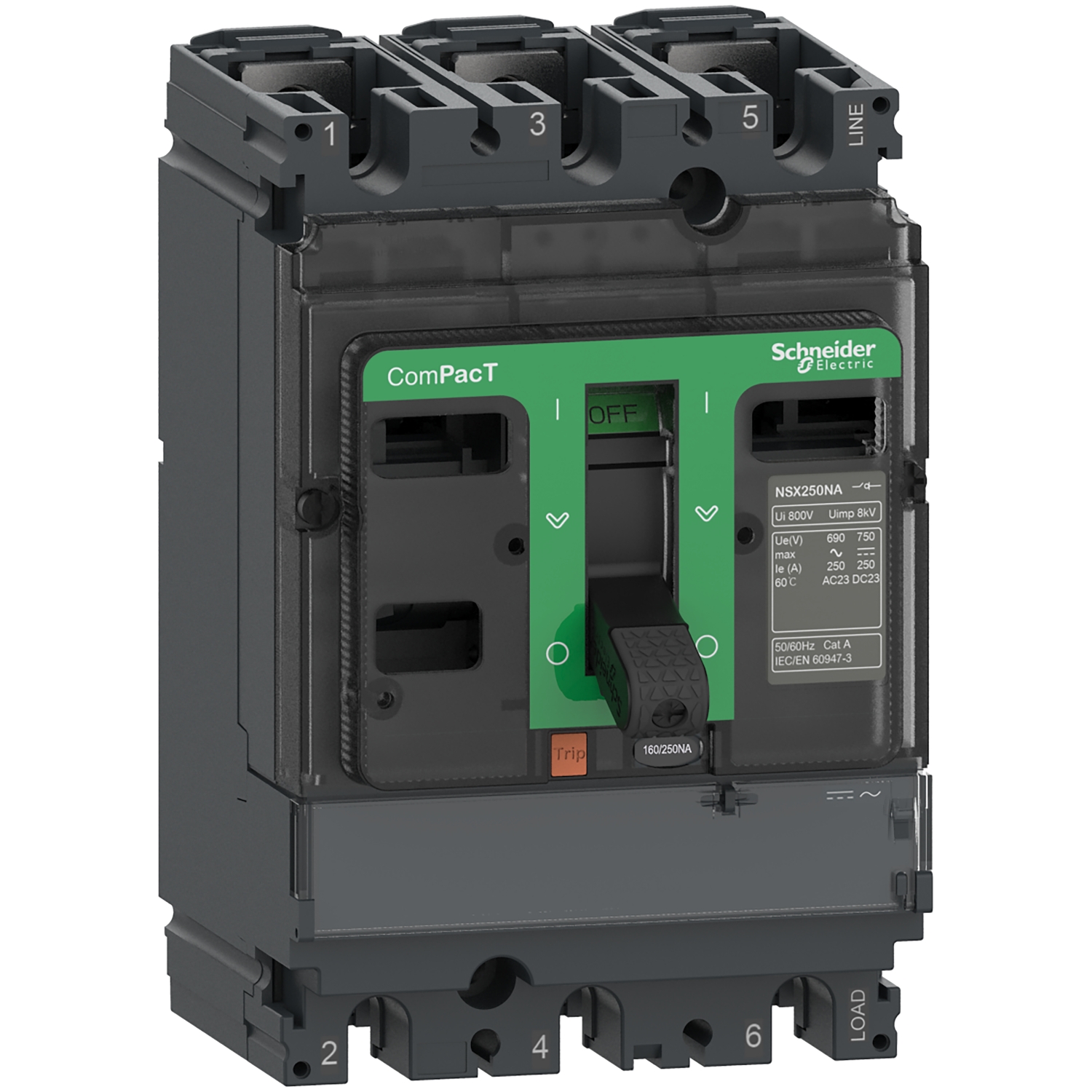

Switch disconnector, ComPacT NSX160NA, 3 poles, fixed, thermal current Ith 160A

Manufacturer: Schneider Electric

SKU: C163160S

GTIN: 3606481999269

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $732.60 inc GST

Price: $490.20 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This ComPacT NSX160NA is a complete 3 poles switch disconnector. It is used to control and isolate electrical distribution circuits and it requires an upstream protection. The operational current is 160A at 415VAC 50/60Hz for AC22A and AC23A utilization categories. The operational voltage is 690VAC 50/60Hz. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimensions for this 3 poles version are 105mm x 161mm x 86mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	DC-23A: 160 A DC 750 V 3 poles in series, DC-22A: 160 A DC 750 V 3 poles in series, DC-23A: 160 A DC 500 V 2 poles in series, DC-23A: 160 A DC 250 V 1 pole, DC-22A: 160 A DC 500 V 2 poles in series, DC-22A: 160 A DC 250 V 1 pole, AC-23A: 160 A AC 50/60 Hz 220...690 V, AC-22A: 160 A AC 50/60 Hz 220...690 V
Suitability for isolation	yes conforming to EN/IEC 60947-3
[Ui] rated insulation voltage	800 V AC 50/60 Hz
Utilisation category	DC-23A, DC-22A, AC-23A, AC-22A
Network type	AC, DC
Device short name	NSX160NA
[Icw] rated short-time withstand current	0.96 kA during 20 s, 2.5 kA during 3 s, 2.5 kA during 1 s
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
[Ith] conventional free air thermal current	160 A at 50 °C
Range of product	ComPacT NSX100...250 new generation
[Ue] rated operational voltage	250 V DC 1 pole, 500 V DC 2 poles in series, 750 V DC 3 poles in series, 690 V AC 50/60 Hz
Poles description	3P
[Icm] rated short-circuit making capacity	3.6 kA switch-disconnector alone, 330 kA with upstream protection circuit breaker
Product name	ComPacT NSX new generation
Product or component type	switch disconnector
Visible break	no
Breaking capacity code	NA
Contact position indicator	yes
[In] rated current	160 A
Network frequency	50/60 Hz
Complementary
Compatibility code	NSX160
Electrical durability	DC-23A: 5000 cycles 500 V DC In (2 poles in series), DC-22A: 5000 cycles 500 V DC In (2 poles in series), DC-23A: 10000 cycles 250 V DC In/2 (1 pole), DC-22A: 10000 cycles 250 V DC In/2 (1 pole), AC-23A: 5000 cycles 690 V AC 50/60 Hz In, AC-22A: 5000 cycles 690 V AC 50/60 Hz In, AC-23A: 10000 cycles 690 V AC 50/60 Hz In/2, AC-22A: 10000 cycles 690 V AC 50/60 Hz In/2, AC-23A: 15000 cycles 440 V AC 50/60 Hz In, AC-22A: 15000 cycles 440 V AC 50/60 Hz In, AC-23A: 30000 cycles 440 V AC 50/60 Hz In/2, AC-22A: 30000 cycles 440 V AC 50/60 Hz In/2
Downside connection	front
Height	161 mm
Mechanical durability	40000 cycles
Net weight	1.8 kg
Product certifications	CCC, EAC, CE
Upside connection	front
Connection pitch	35 mm
Depth	86 mm
Width	105 mm
Mounting support	backplate
Standards	EN/IEC 60947-3, EN/IEC 60947-1
Environment
Ambient air temperature for storage	-50-85 °C
Electrical shock protection class	class II
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
