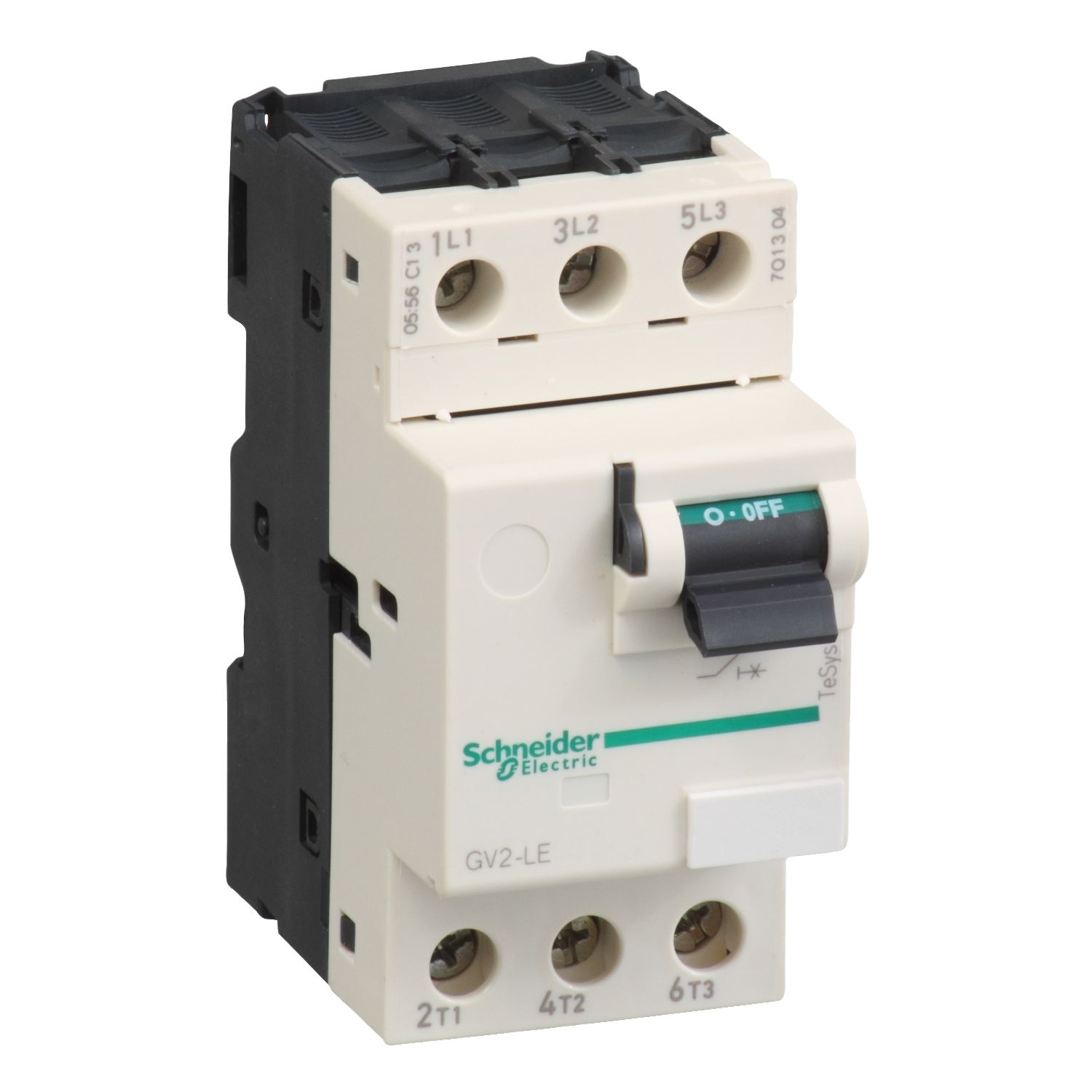

TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD04 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | motor protection |
| Trip unit technology | magnetic |
| Device short name | GV2LE |
| Range | TeSys Deca |
| Range of product | TeSys GV2 |
| Product name | TeSys GV2 |
| Product or component type | motor circuit breaker |
| Complementary | |
| Compatibility code | GV2LE |
| Suitability for isolation | yes conforming to IEC 60947-1 § 7-1-6 |
| Electrical durability | 100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In |
| Power dissipation per pole | 1.8 W |
| [Ics] rated service short-circuit breaking capacity | 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Height | 89 mm |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Net weight | 0.33 kg |
| [Ith] conventional free air thermal current | 0.63 A conforming to IEC 60947-4-1 |
| Network type | AC |
| Rated duty | continuous conforming to IEC 60947-4-1 |
| Colour | dark grey |
| Mechanical durability | 100000 cycles |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Breaking capacity | 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | toggle |
| Fixing mode | panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped |
| Maximum operating rate | 40 cyc/h |
| Magnetic tripping current | 8-8 A |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Depth | 78.5 mm |
| Width | 45 mm |
| Poles description | 3P |
| Direct connector | without |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Utilisation category | AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2 |
| Motor power kW | 0.37-0.37 kW at 690 V AC 50/60 Hz, 0.18-0.18 kW at 400/415 V AC 50/60 Hz, 0.12-0.12 kW at 400/415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 0.63 A |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -40-80 °C |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for operation | -20-60 °C |
| Operating altitude | 2000 m |
| Product certifications | IECEE CB Scheme, UKCA, DNV-GL, RINA, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms |
| IK degree of protection | IK04 |
| Standards | CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2 |
