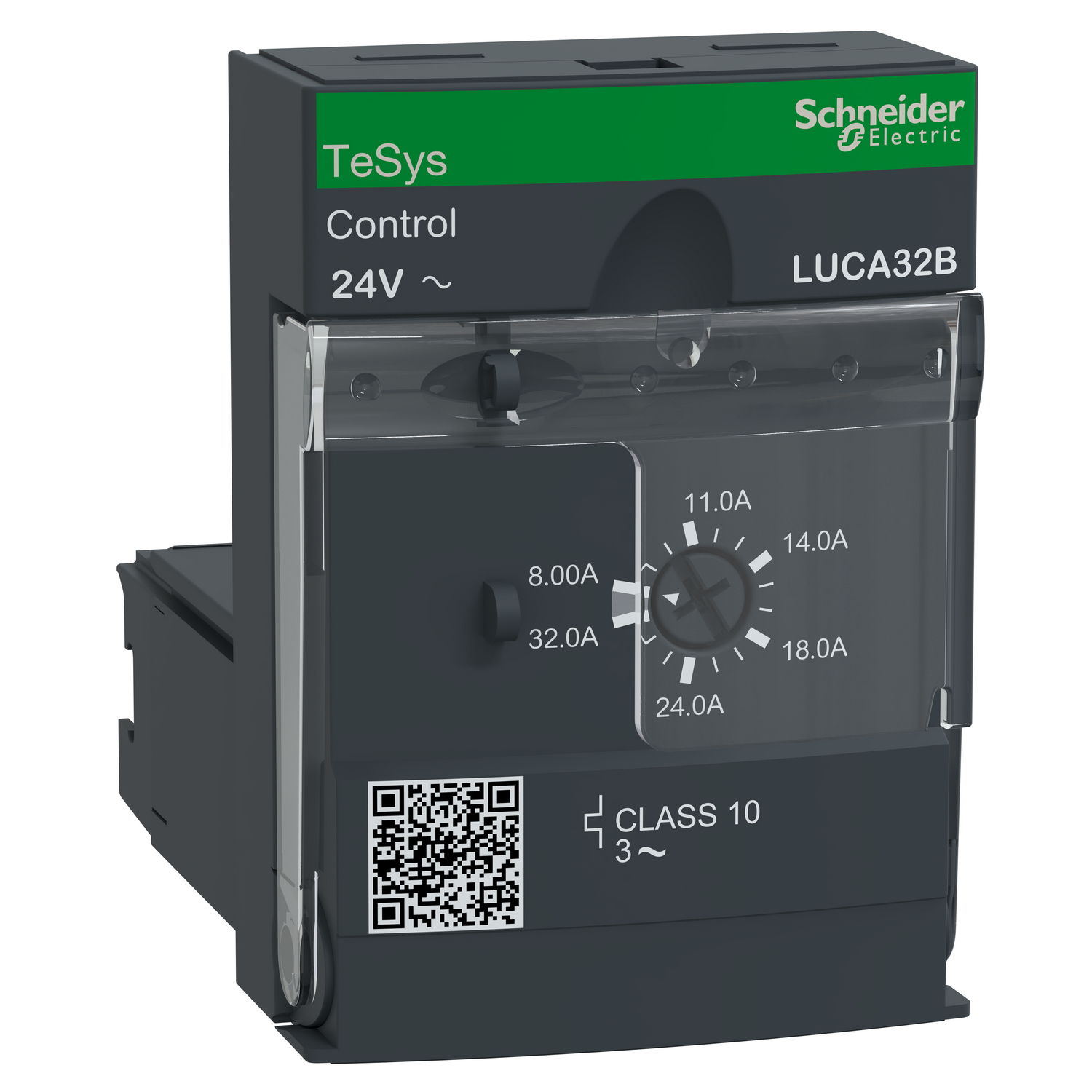

TeSys U standard control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Only registered users can write reviews
Related products
Auxiliary contact, TeSys Ultra, 1NO + 1NC, 0 to 250VAC/DC, for Fault signalling
LUA1C11
Auxiliary contact, TeSys Ultra, 1NO + 1NC, 0 to 250VAC/DC, for Fault signalling
$58.19 inc GST
$42.04 inc GST
Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for for Fault signalling, Screw clamp terminals
LUA1C20
Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for for Fault signalling, Screw clamp terminals
$58.19 inc GST
$42.04 inc GST
Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for Start-stop signalling, Screw clamp terminals
LUA8E20
Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for Start-stop signalling, Screw clamp terminals
$125.18 inc GST
$90.44 inc GST
Auxiliary contacts, TeSys Ultra, 1NO + 1NC, 250VAC/DC, Power pole status, screw terminal
LUFN11
Auxiliary contacts, TeSys Ultra, 1NO + 1NC, 250VAC/DC, Power pole status, screw terminal
$67.21 inc GST
$48.56 inc GST
Auxiliary contacts, TeSys Ultra, 2NC, 250VAC/DC, Power pole status, screw terminal
LUFN02
Auxiliary contacts, TeSys Ultra, 2NC, 250VAC/DC, Power pole status, screw terminal
$67.21 inc GST
$48.56 inc GST
Auxiliary contacts, TeSys Ultra, 2NO, 250VAC/DC, Power pole status, screw terminal
LUFN20
Auxiliary contacts, TeSys Ultra, 2NO, 250VAC/DC, Power pole status, screw terminal
$67.21 inc GST
$48.56 inc GST
