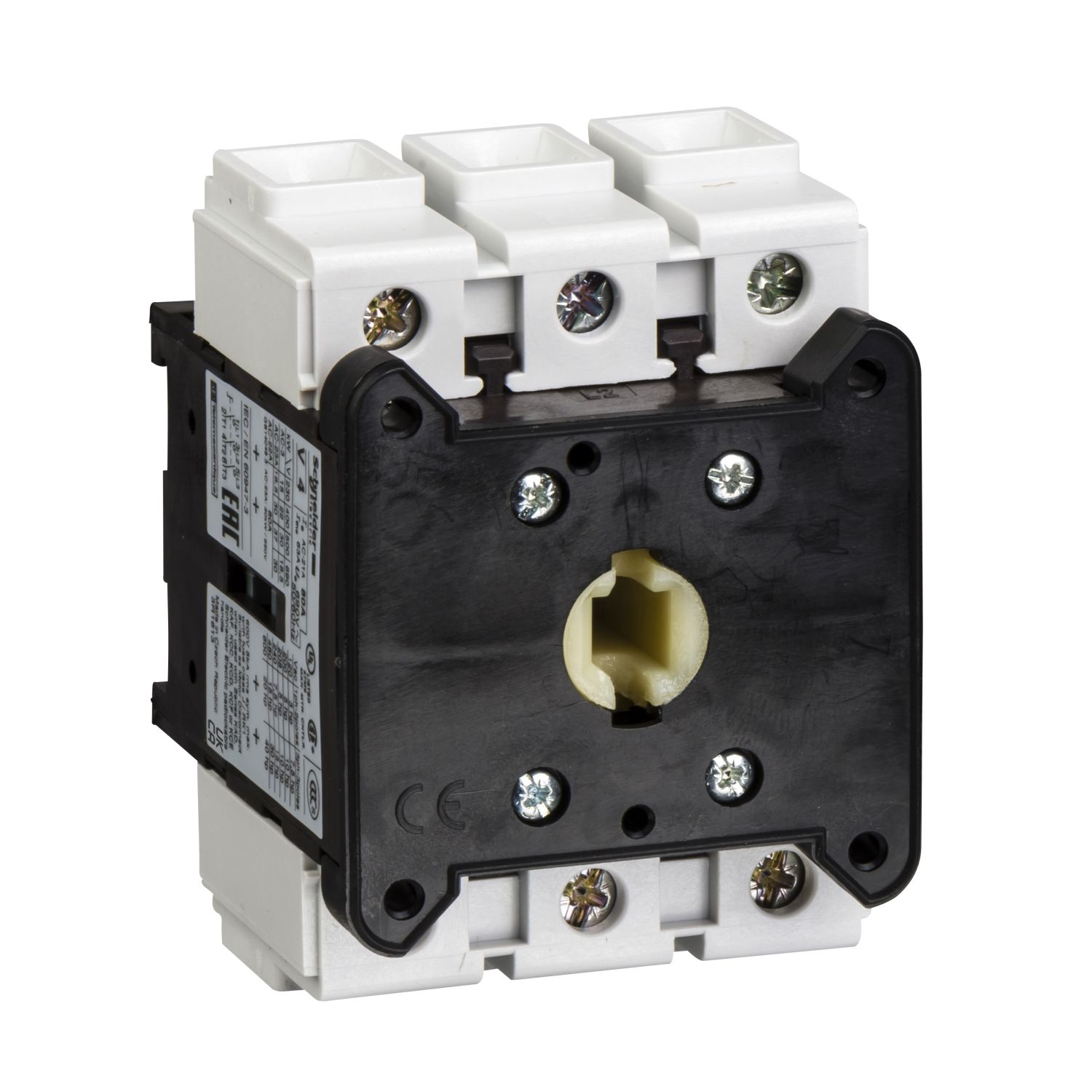

Switch body, TeSys Mini-Vario, for switch-disconnector, 3 poles, 80A

Manufacturer: Schneider Electric

SKU: V4

GTIN: 3389110551723

Catalog

Instruction sheet

Environmental Disclosure

Old price: $342.10 inc GST

Price: $135.78 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario switch body, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	V
Range	TeSys
Product name	TeSys VARIO
Product or component type	switch body
Complementary
[Icw] rated short-time withstand current	960 A at 400 V duration: 1 s
Tightening torque	power circuit: 4-4 N.m - on screw clamp terminals
Compatibility code	V
Mechanical durability	30000 cycles
[Ie] rated operational current	57 A AC-23 Ue: 400 V
Electrical durability	30000 cycles DC-1...5, 30000 cycles AC-21
[Ith] conventional free air thermal current	80 A
Intermittent duty class	30
Height	83 mm
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 80 A gG, 10 kA at 400 V - associated fuse 80 A aM
Rated operational power in W	30 kW at 400...415 V (AC-23A), 18.5 kW at 230...240 V (AC-23A), 18.5 kW at 690 V (AC-3), 37 kW at 500 V (AC-23A), 30 kW at 690 V (AC-23A), 30 kW at 500 V (AC-3), 22 kW at 400...415 V (AC-3), 15 kW at 230...240 V (AC-3)
Breaking capacity	640 A at 400 V (AC-23A), 640 A at 400 V (AC-22A), 640 A at 400 V (AC-21A)
Depth	65 mm
Width	60 mm
Poles description	3P
Suitability for isolation	yes
[Icm] rated short-circuit making capacity	2.1 kA at 400 V at Ipeak
Contacts type and composition	3 NO
Connections - terminals	power circuit: screw clamp terminals25-25 mm² - solid, power circuit: screw clamp terminals16-16 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage	8 kV
Making capacity	800 A at 400 V AC-23A, 800 A at 400 V AC-22A, 800 A at 400 V AC-21A
Performance level	high performance
Net weight	0.5 kg
[Ithe] conventional enclosed thermal current	63 A
Network type	AC, DC
Mounting support	symmetrical rail, plate
[Ue] rated operational voltage	690 V AC 50/60 Hz
Network frequency	50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20-50 °C
Standards	IEC 60947-3
Product certifications	UKCA, GL, CSA, UL
