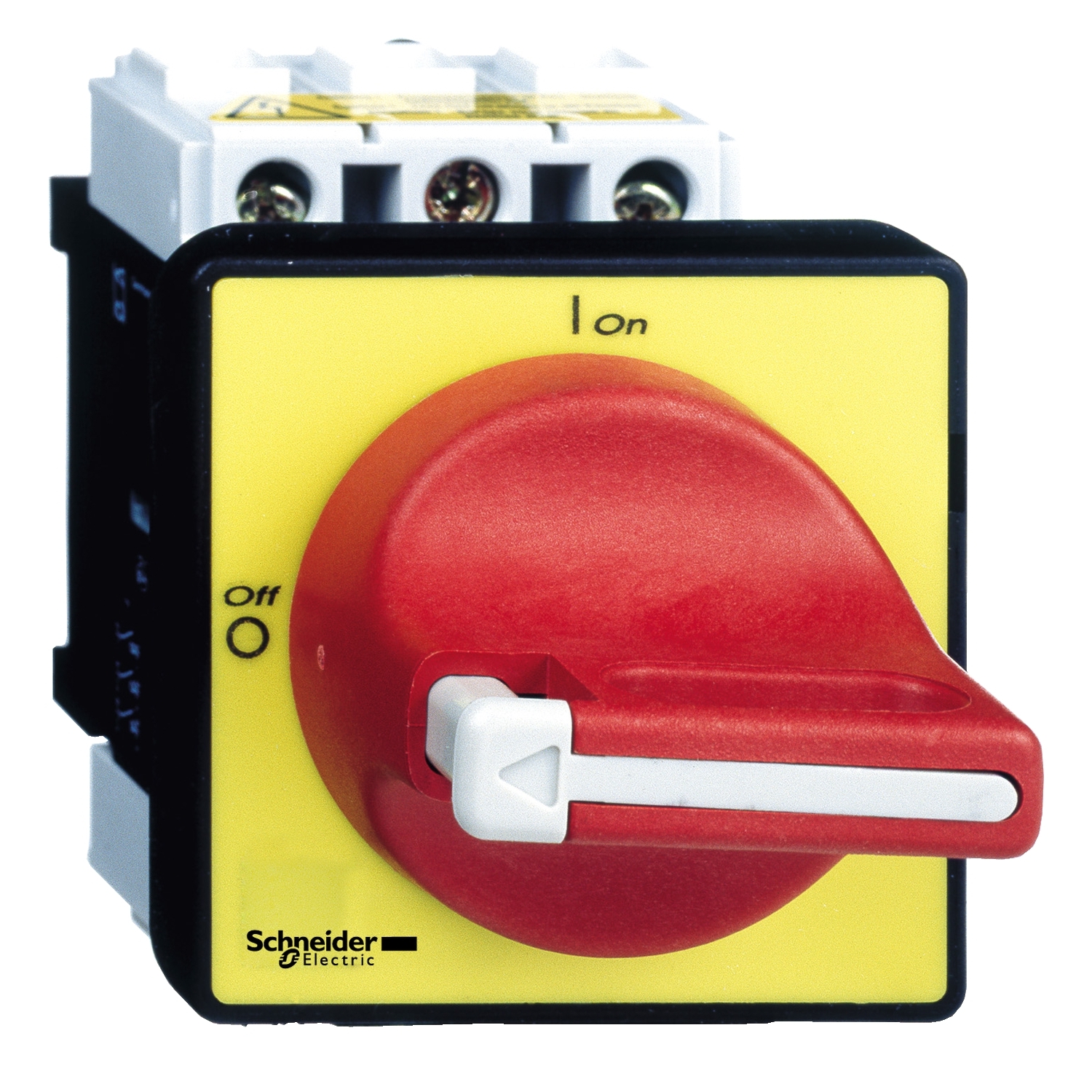

Emergency stop switch disconnector, TeSys Mini-Vario, 32A, on door

Manufacturer: Schneider Electric

SKU: VCF1

GTIN: 3389110449365

Catalog

Instruction sheet

Environmental Disclosure

Old price: $206.80 inc GST

Price: $82.08 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VCF
Range	TeSys
Product name	TeSys VARIO
Product or component type	emergency stop switch disconnector
Complementary
[Icw] rated short-time withstand current	384 A at 400 V duration: 1 s
Tightening torque	power circuit: 2.1-2.1 N.m - on screw clamp terminals
Mechanical durability	100000 cycles
[Ie] rated operational current	21.8 A AC-23 Ue: 400 V
Electrical durability	30000 cycles DC-1...5, 100000 cycles AC-21
Control type	rotary handle
Base dimension	60 x 60 mm
Marking	0 - 1
Fixing mode	by 4 screws for handle
[Ith] conventional free air thermal current	32 A
Intermittent duty class	30
Height	74 mm
Rotary handle mounting style	direct
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 35 A gG, 10 kA at 400 V - associated fuse 35 A aM
Rated operational power in W	7.5 kW at 400...415 V (AC-3), 11 kW at 400...415 V (AC-23A), 5.5 kW at 230...240 V (AC-23A), 1.5 kW at 230...240 V (AC-3), 7.5 kW at 690 V (AC-3), 7.5 kW at 500 V (AC-3), 15 kW at 690 V (AC-23A), 11 kW at 500 V (AC-23A)
Breaking capacity	250 A at 400 V (AC-23A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-21A)
Device composition	handle, switch
Width	60 mm
Poles description	3P
Mounting support	switch: door, handle: door
Suitability for isolation	yes
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
Contacts type and composition	3 NO
Connections - terminals	power circuit: screw clamp terminals6-6 mm² - flexible - with cable end, power circuit: screw clamp terminals10-10 mm² - solid
[Uimp] rated impulse withstand voltage	8 kV
Making capacity	320 A at 400 V AC-23A, 320 A at 400 V AC-22A, 320 A at 400 V AC-21A
Performance level	high performance
Net weight	0.25 kg
Handle colour	red
[Ithe] conventional enclosed thermal current	25 A
Handle front plate colour	yellow
Network type	AC, DC
[Ue] rated operational voltage	690 V AC 50/60 Hz
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Compatibility code	main switch disconnector
Protective treatment	TC
IP degree of protection	IP65, IP20 conforming to IEC 60529
Ambient air temperature for operation	-20-50 °C
Standards	IEC 60947-3
Product certifications	UKCA, GL, CCC, CSA, UL
