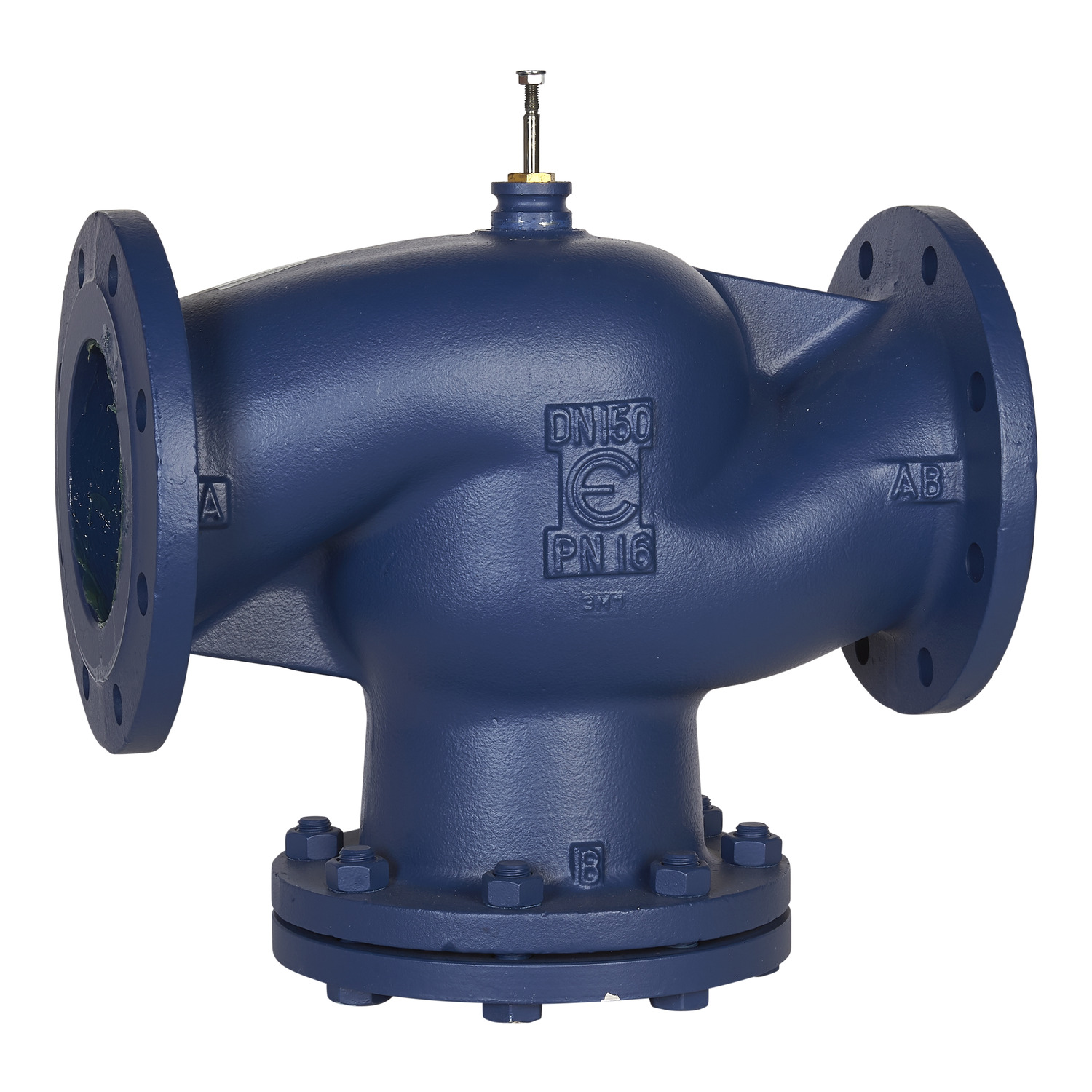

The globe valve VG221F is a large 2-way pressure balanced globe valve designed for demanding heating and cooling applications. The balanced plug lowers the actuator force needed for operation, the valve uses a crown plug for precise fluid control. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-150 °C |
| Body material | grey cast iron GG-25 |
| Seating seal material | Port A:metal to metal |
| Seat leakage | Port A: Less than 0.03 % of kvs |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Valve connection size | DN150 (ISO 7005-2) |
| Seat material | Port A: grey cast iron GG-25 |
| Medium compatibility | Glycol 50 %, Glycol 30 %, Glycol 25 %, Water |
| Control valve rangeability | greater than 50:1 |
| Plug material | CW614N brass |
| Valve product series | VG221F |
| Flow coefficient | 300 kvs, 346.87 cv |
| Stem flow action | Stem up closed |
| Valve configuration | 2-Way |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 29 psi |
| Valve type | globe |
| Valve model | VG221F-150C 300M SU00 |
| Packing material | EPDM (ethylene propylene diene monomer) |
| Valve connection type | flanged |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Flow characteristic | equal percentage |
| Trim material | brass |
| Stroke length | 45 mm |
| Stem material | stainless steel AISI 303 |
| Pipe size | 150 mm |
| Pressure class | PN16 |
| Body size | 150 mm (6 in) |
