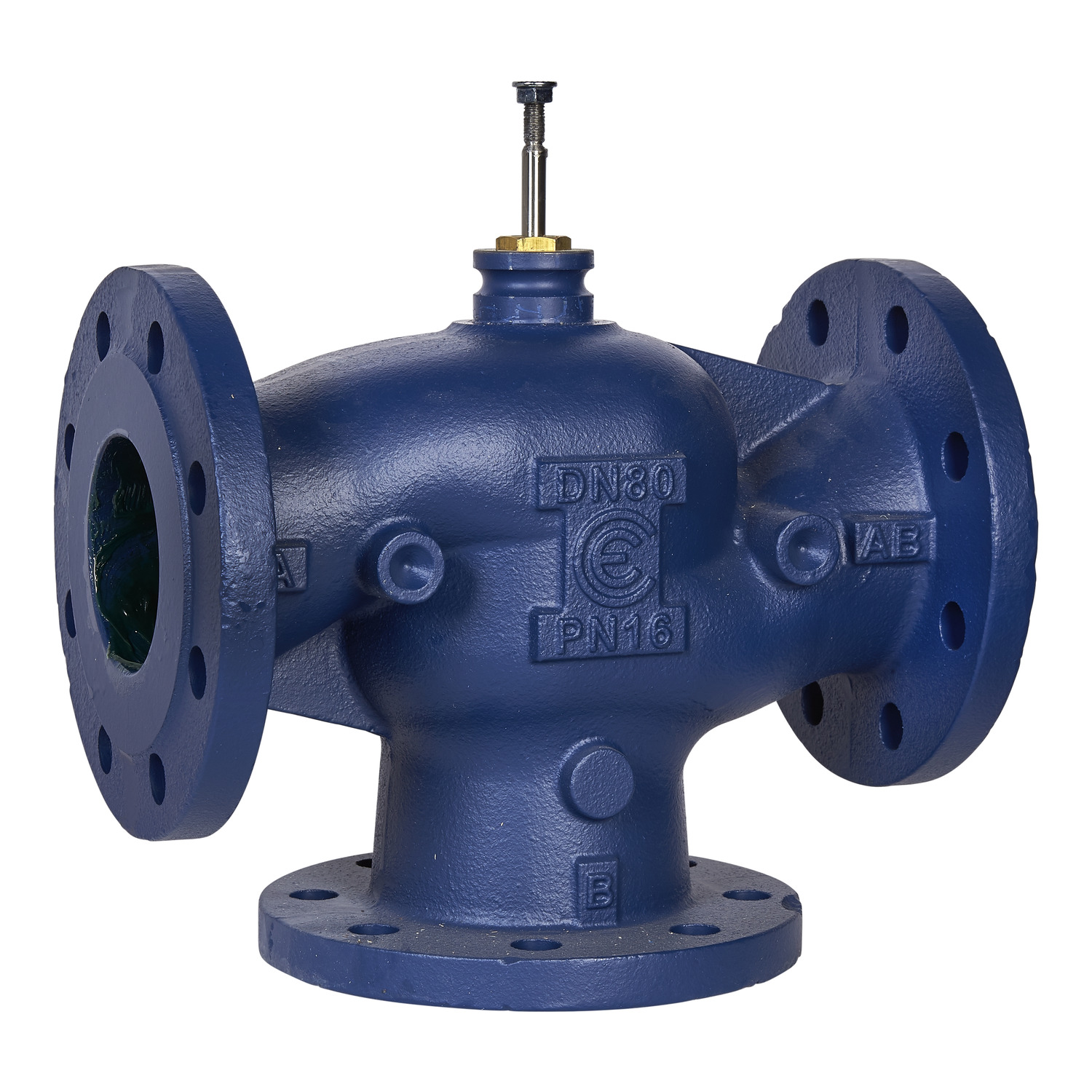

The globe valve VG311F is a large 3-way globe mixing valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for media with a very high rangeability
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-150 °C |
| Body material | grey cast iron GG-25 |
| Seating seal material | Port A:metal to metal |
| Seat leakage | Port A: Less than 0.03 % of kvs |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Valve connection size | DN80 (ISO 7005-2) |
| Seat material | Port B: grey cast iron GG-25, Port A: grey cast iron GG-25 |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Control valve rangeability | greater than 50:1 |
| Plug material | CW614N brass |
| Valve product series | VG311F |
| Flow coefficient | 100 kvs, 92.5 cv |
| Stem flow action | Stem up closes A and opens B to AB |
| Valve configuration | 3-Way |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 29 psi |
| Valve type | globe |
| Valve model | VG311F-80C 100M SU00 |
| Packing material | EPDM (ethylene propylene diene monomer) |
| Valve connection type | flanged |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Flow characteristic | equal percentage |
| Trim material | brass |
| Stroke length | 45 mm |
| Stem material | stainless steel AISI 303 |
| Pipe size | 80 mm |
| Pressure class | PN16 |
| Body size | 80 mm (3 in) |
