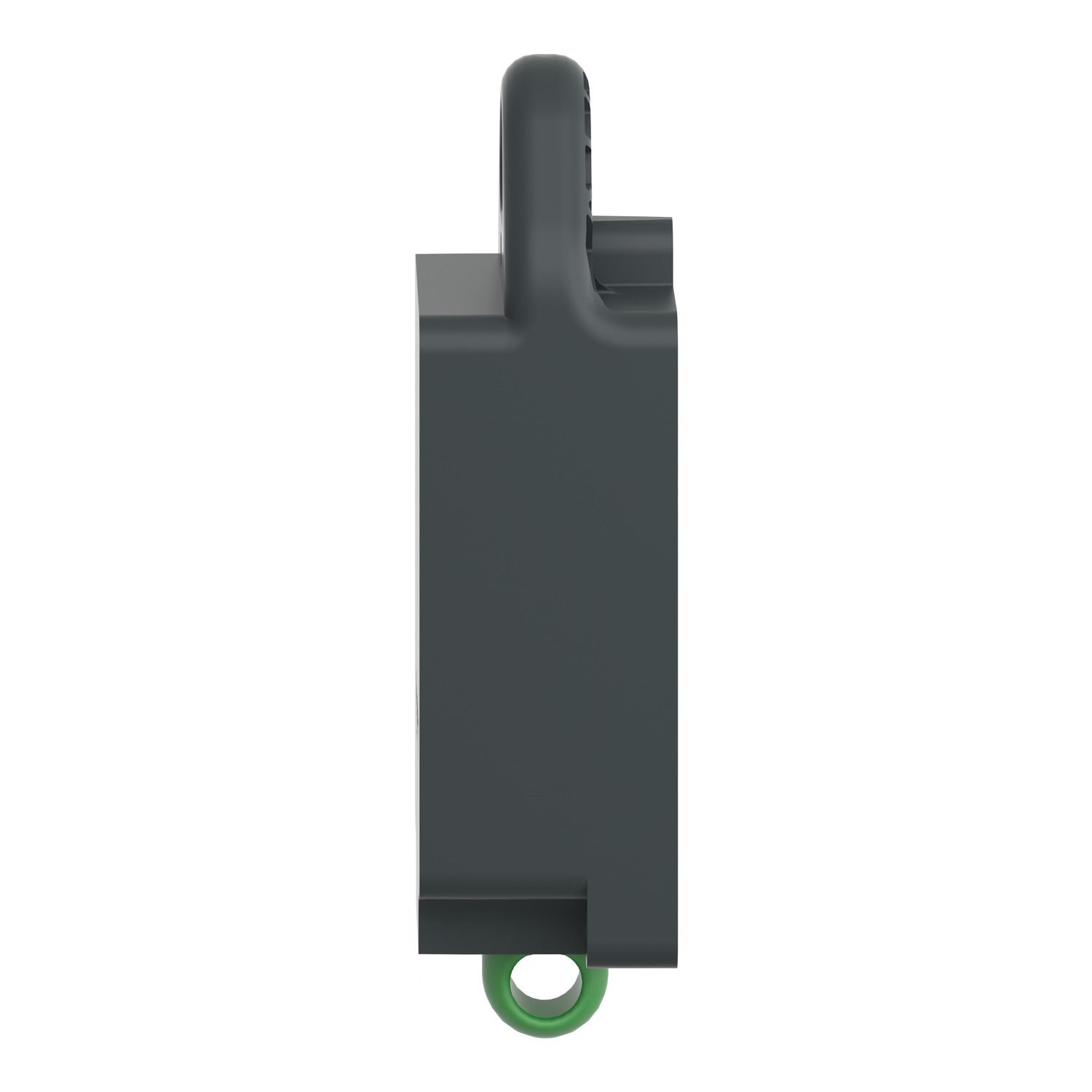

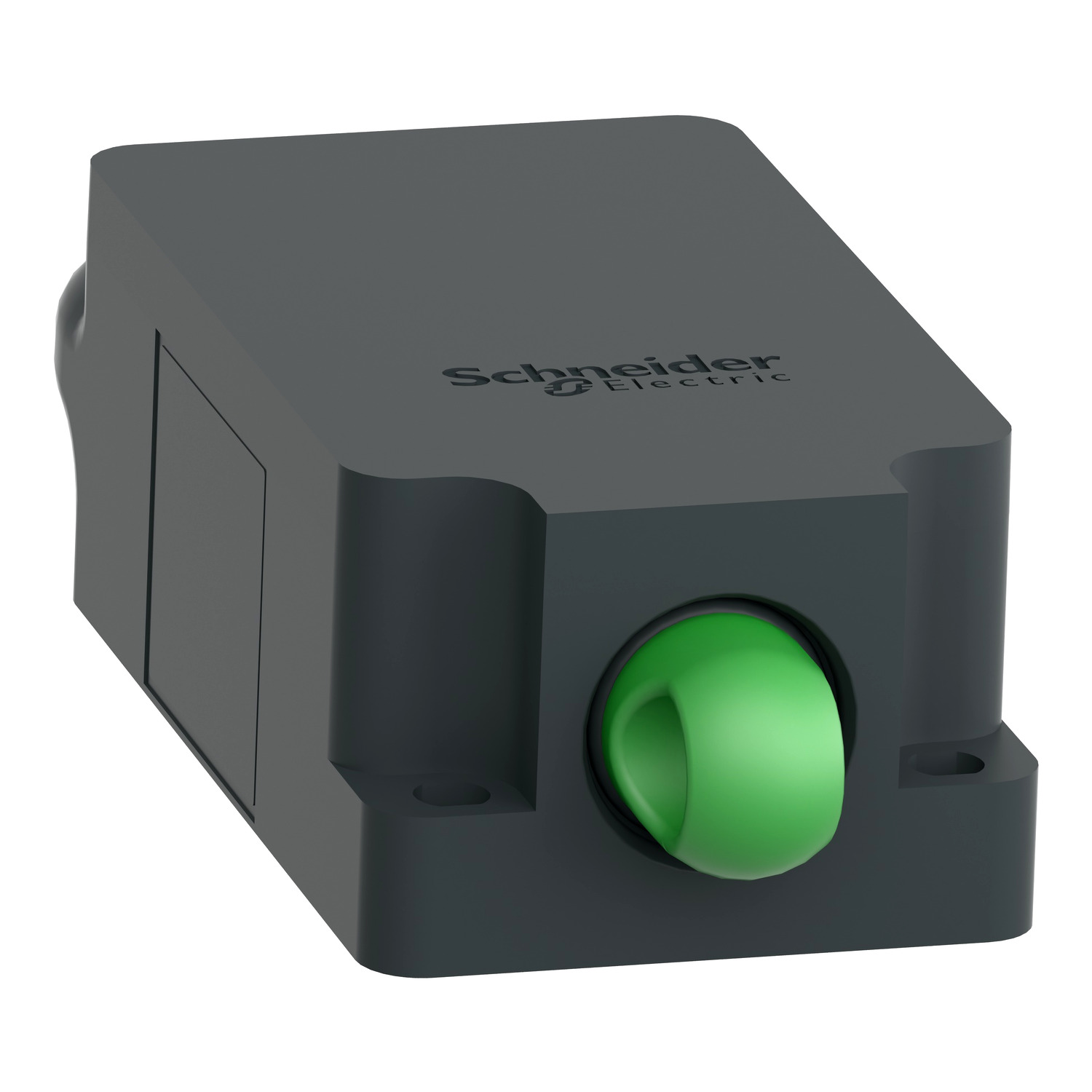

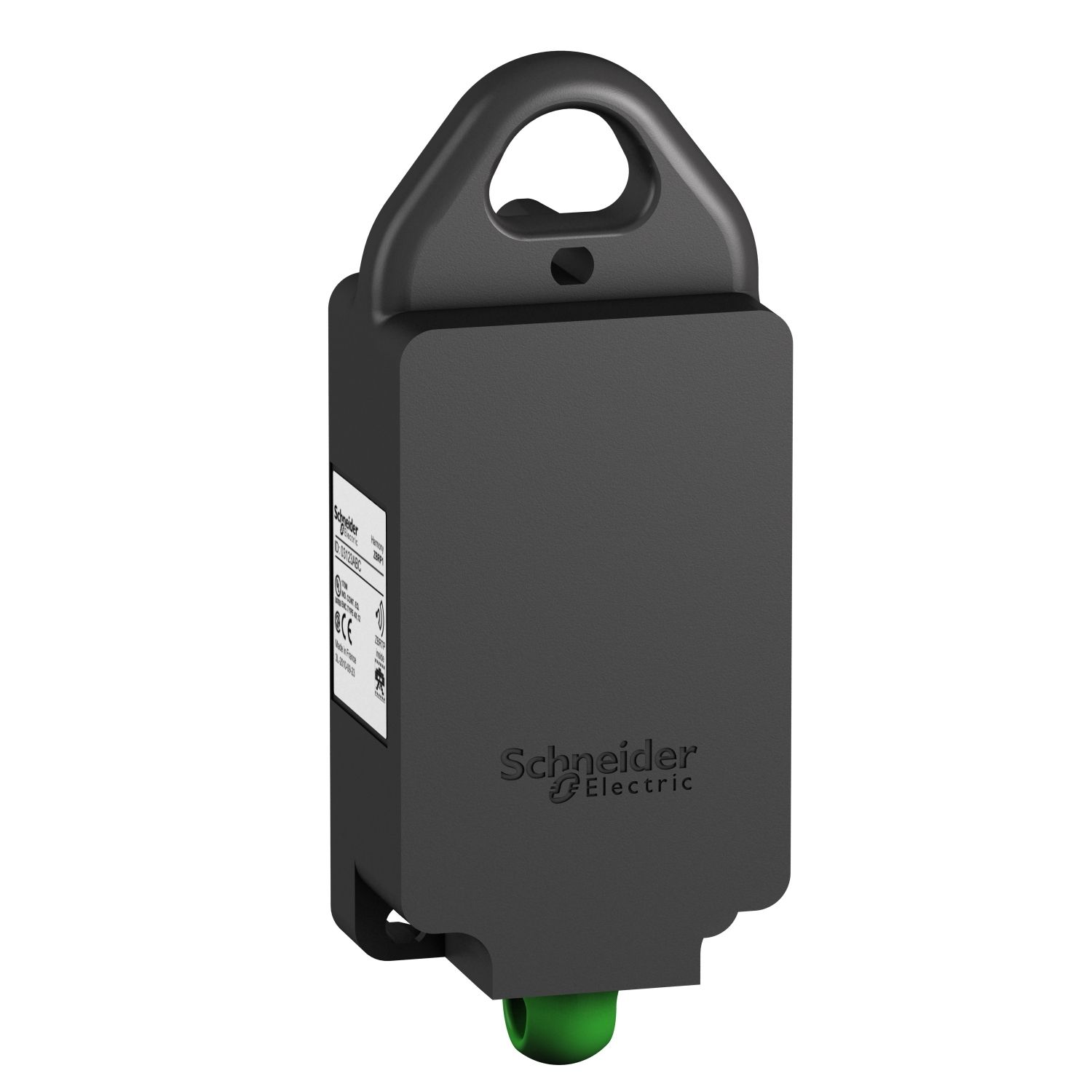

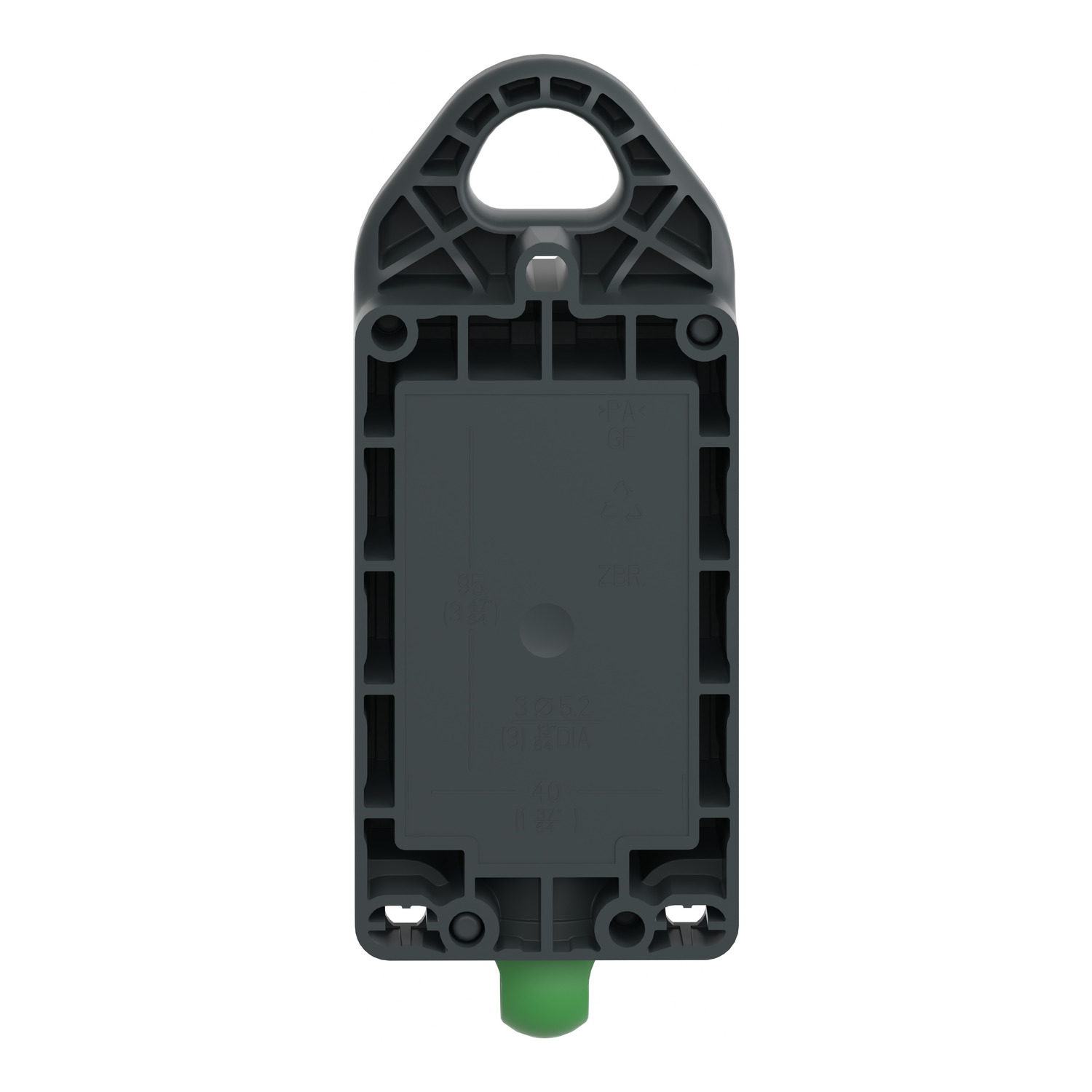

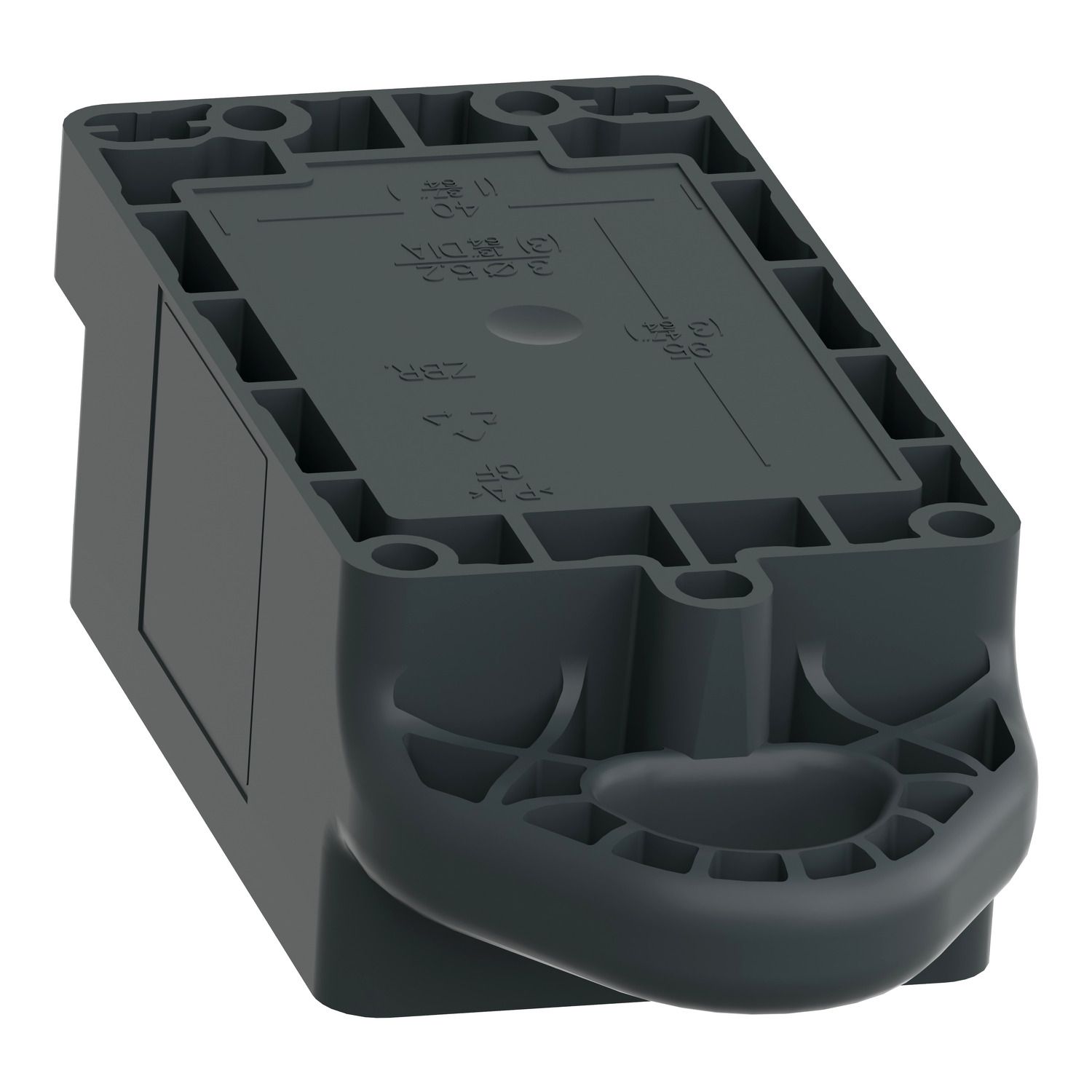

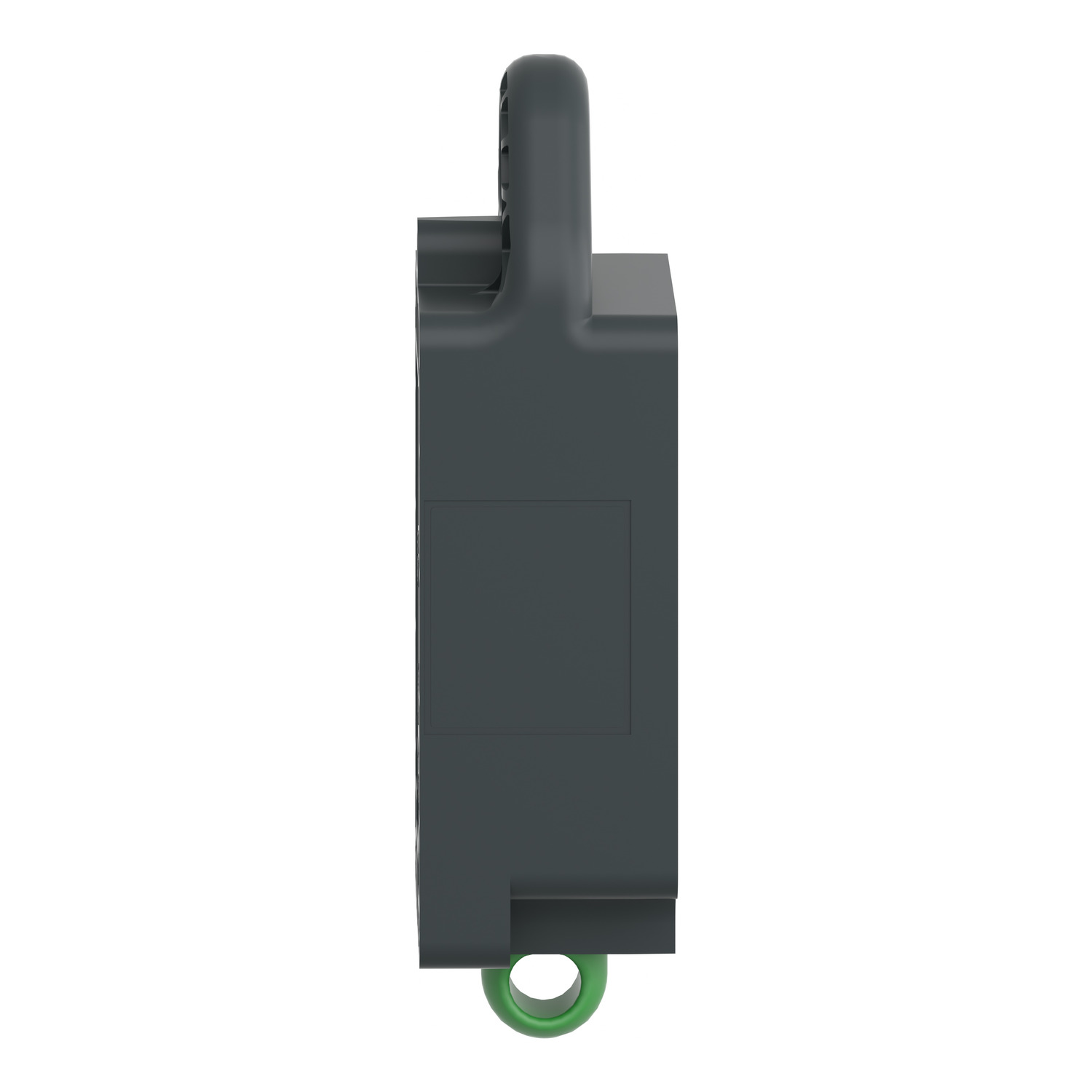

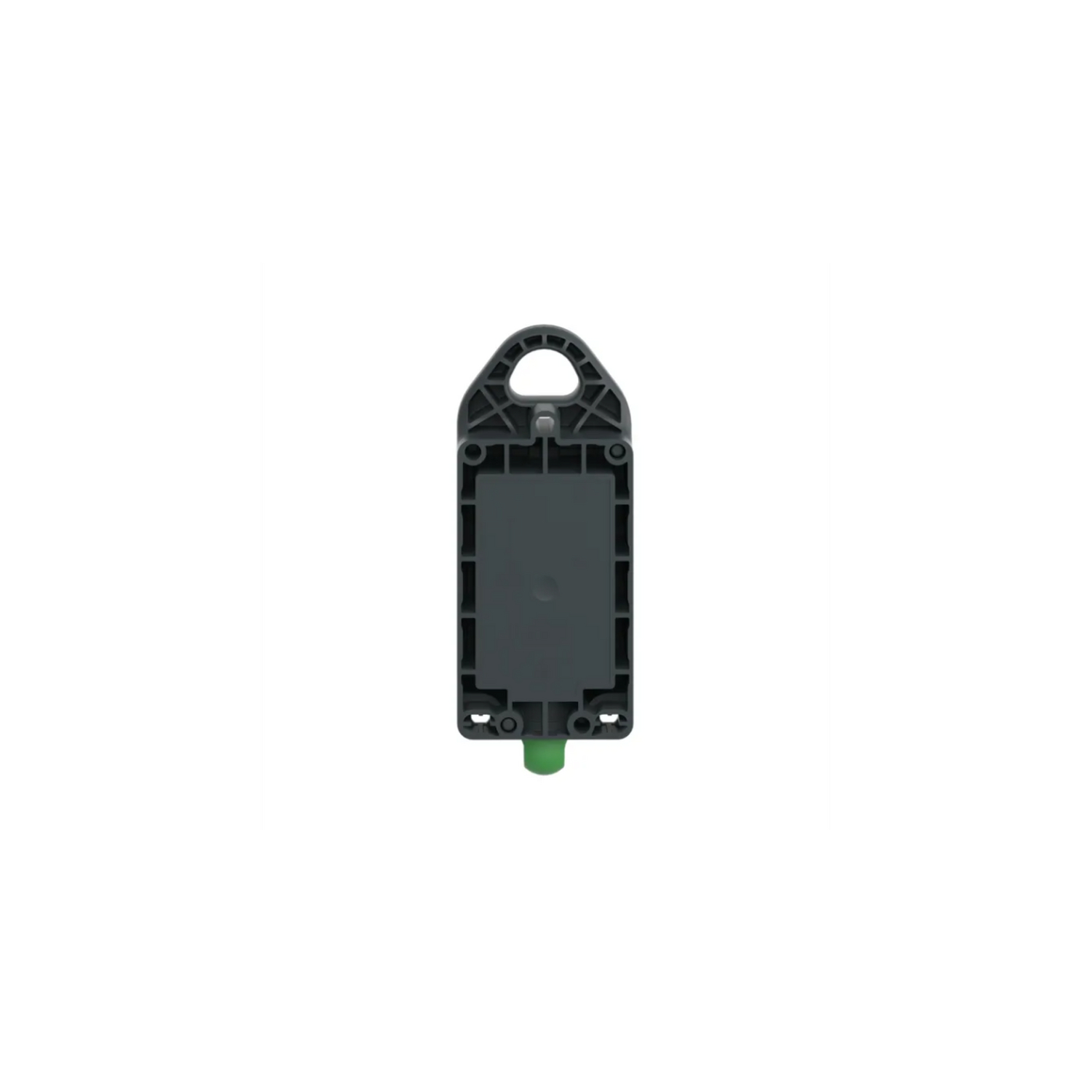

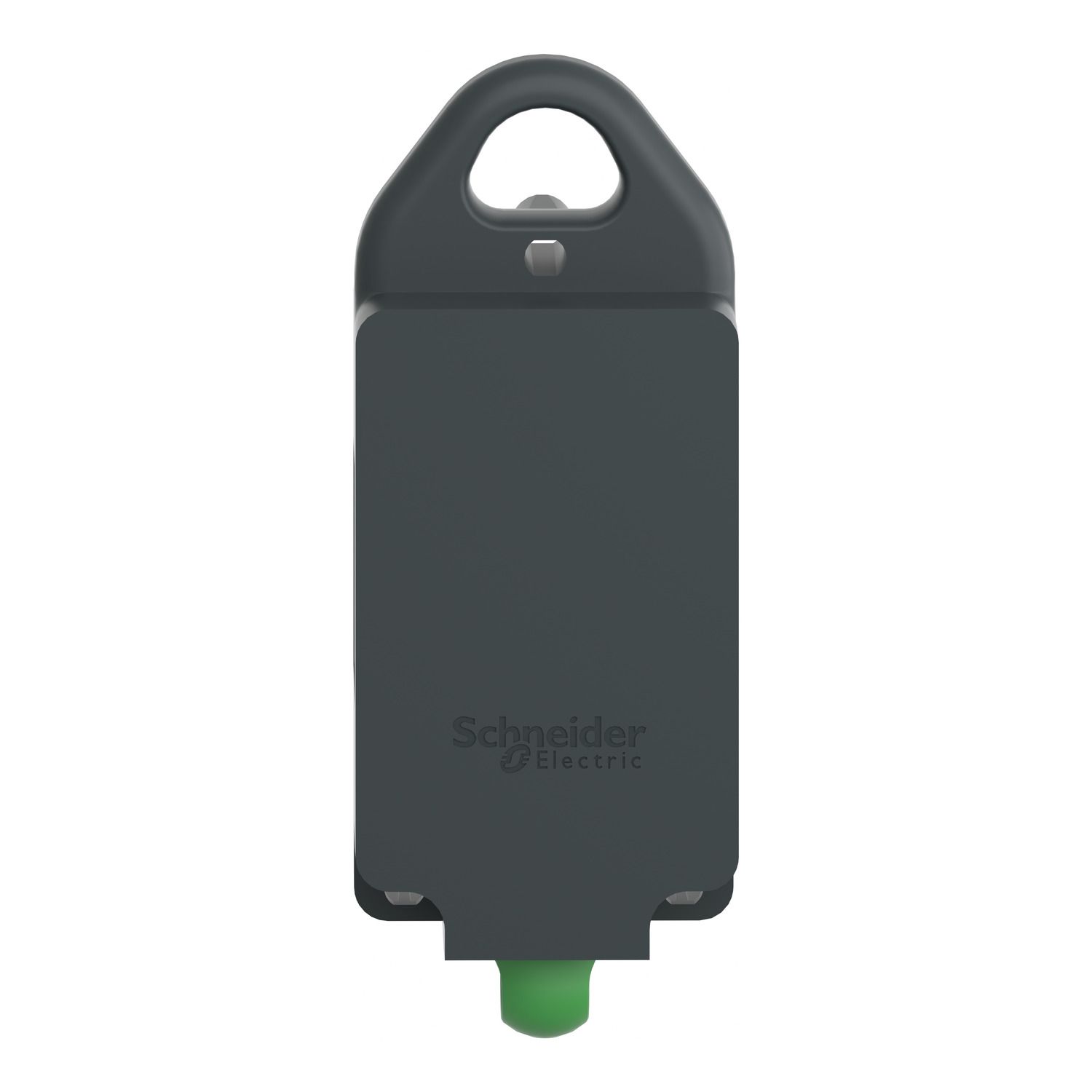

This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBRP1 |
| Bezel material | plastic |
| Level or class | 5M00G7W |
| Product or component type | wireless and batteryless transmitter |
| Transmission frequency | 2405 MHz |
| Range of product | Harmony XB5R |
| Antenna type | omnidirectional |
| Complementary | |
| CAD overall depth | 38 mm |
| Emission power | 3 mW |
| CAD overall width | 56 mm |
| Radio agreement | GITEKI, ICASA |
| Operating position | any position |
| Number of channels | 1 |
| Maximum sensing distance | 100 m in free field |
| Mounting mode | panel mount with universal support, between 2 ropes |
| CAD overall height | 144 mm |
| Net weight | 0.15 kg |
| Antenna gain | 0 dBi |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Fixing mode | by screw: 1.8-2.2 N.m |
| Standards | EN/IEC 300328, EN/IEC 60947-5-1, EN/IEC 62479, EN/IEC 60947-1, UL 508 |
| Mechanical robustness | free fall resistance 1 m conforming to EN/IEC 60068-2-31 |
| Environment | |
| NEMA degree of protection | NEMA 4 |
| Mechanical durability | 1000000 cycles |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 62262 |
| Electromagnetic compatibility | susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Product certifications | UKCA, FCC, ANATEL, RCM, CE, GOST, UL |
